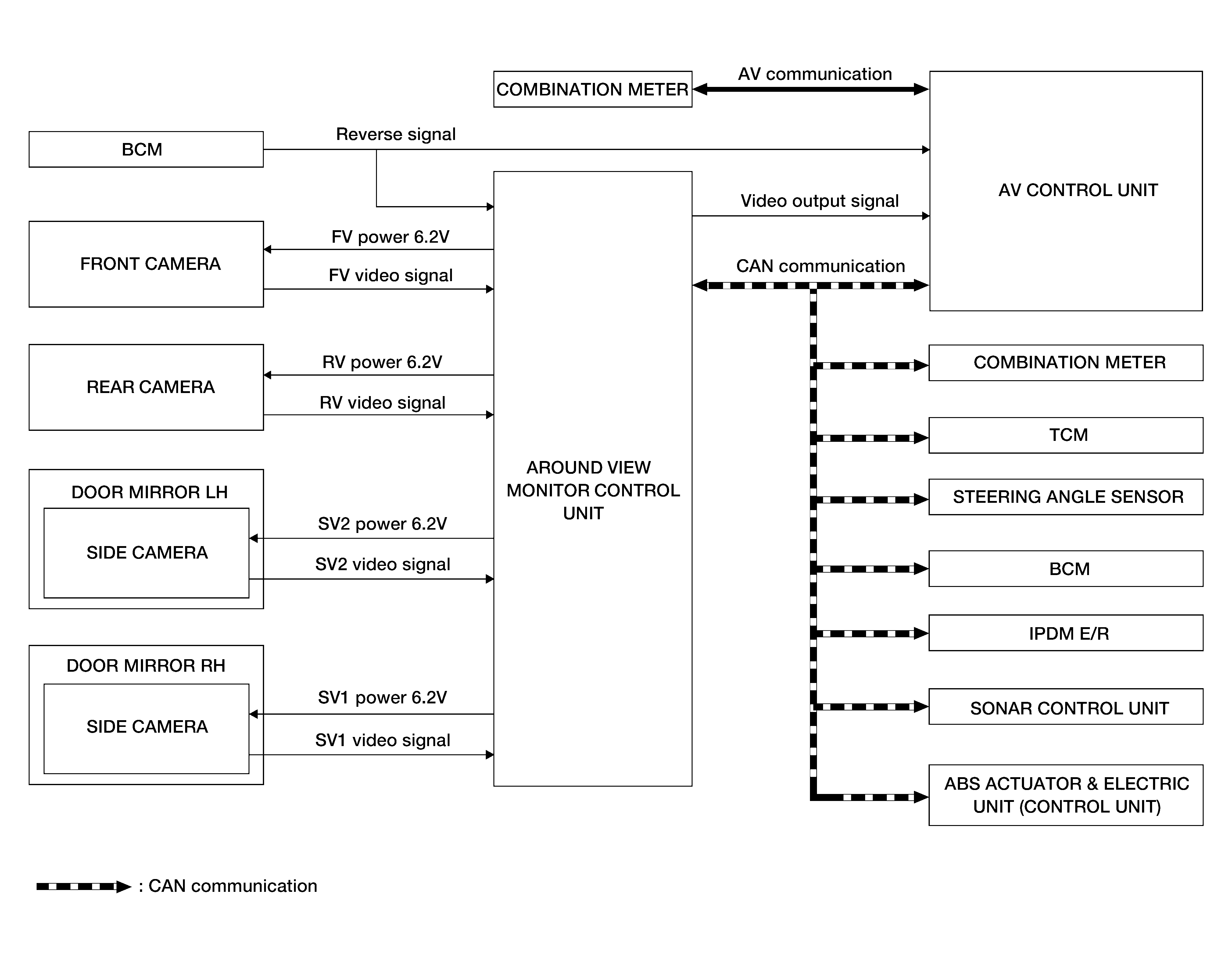

System Diagram

Courtesy of NISSAN NORTH AMERICA, INC.

Around View Monitor Control Unit Input Signal (CAN Communication)

Transmit unit	Signal name
ABS actuator and electrical unit (Control unit)	Wheel speed signal
AV control unit	Camera switch signal
BCM	Door switches state signal
Combination meter	Setting change request signal Hand brake switch signal
IPDM E/R	Battery voltage signal
Sonar control unit	Sonar detection display request signal
Steering angle sensor	Steering angle signal
TCM	Transmission range indication signal
