Exploded View

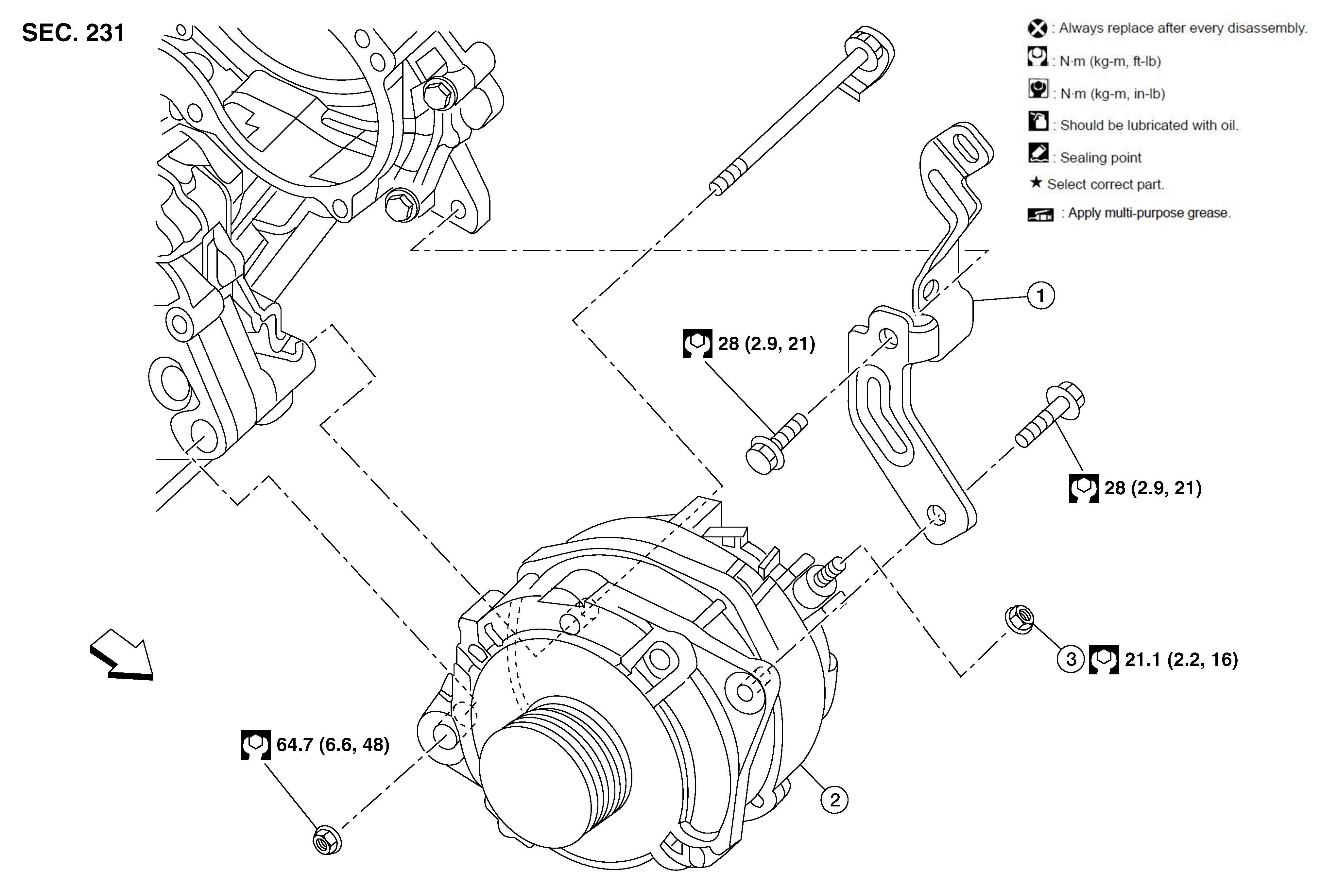

Fig 1: Generator With Torque Specifications
GNSAWMIA0190Z-190SYMBOLCourtesy of NISSAN NORTH AMERICA, INC.

1.

Generator bracket

2.

Generator

3.

"B" terminal nut

SYMBOL

Front
