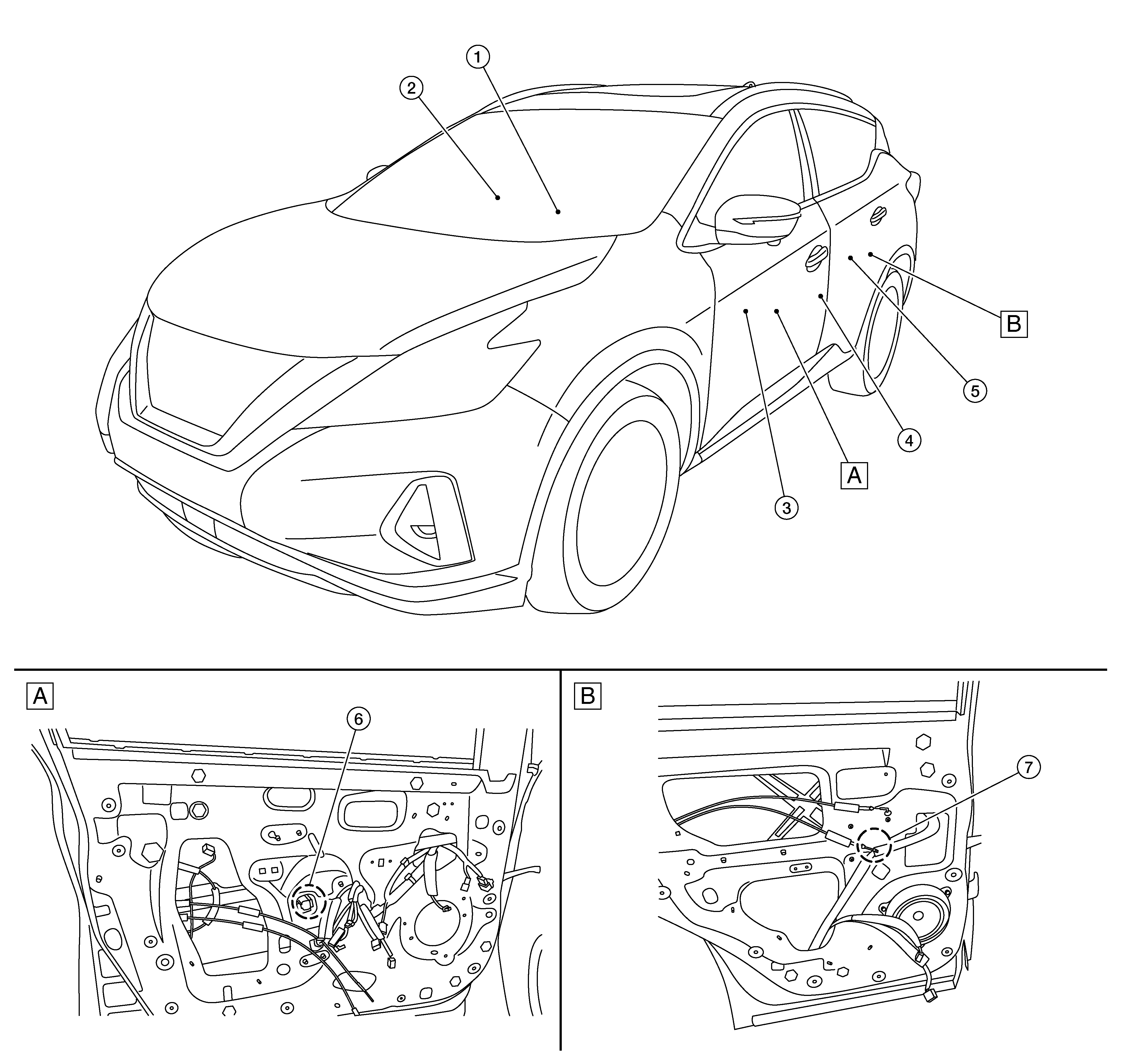

Component Location
|
A. |
View with front door finisher removed |
B. |
View with rear door finisher removed |
|
No. |
Component |
Function |
|
1. |
BCM (Body Control Module) |
Refer to Component Location for detailed component location. |
|
2. |
Power window and door lock/unlock switch RH |
Refer to Power Window and Door Lock/Unlock Switch RH . |
|
3. |
Main power window and door lock/unlock switch |
|
|
4. |
Front door switch LH (RH similar) |
Detects door open/close condition and transmits to BCM. Refer to Front Door Switch . |
|
5. |
Rear power window switch LH (RH similar) |
Refer to Rear Power Window Switch . |
|
6. |
Front power window motor LH (RH similar) |
Refer to Power Window Motor . |
|
7. |
Rear power window motor LH (RH similar) |
Refer to Power Window Motor . |
