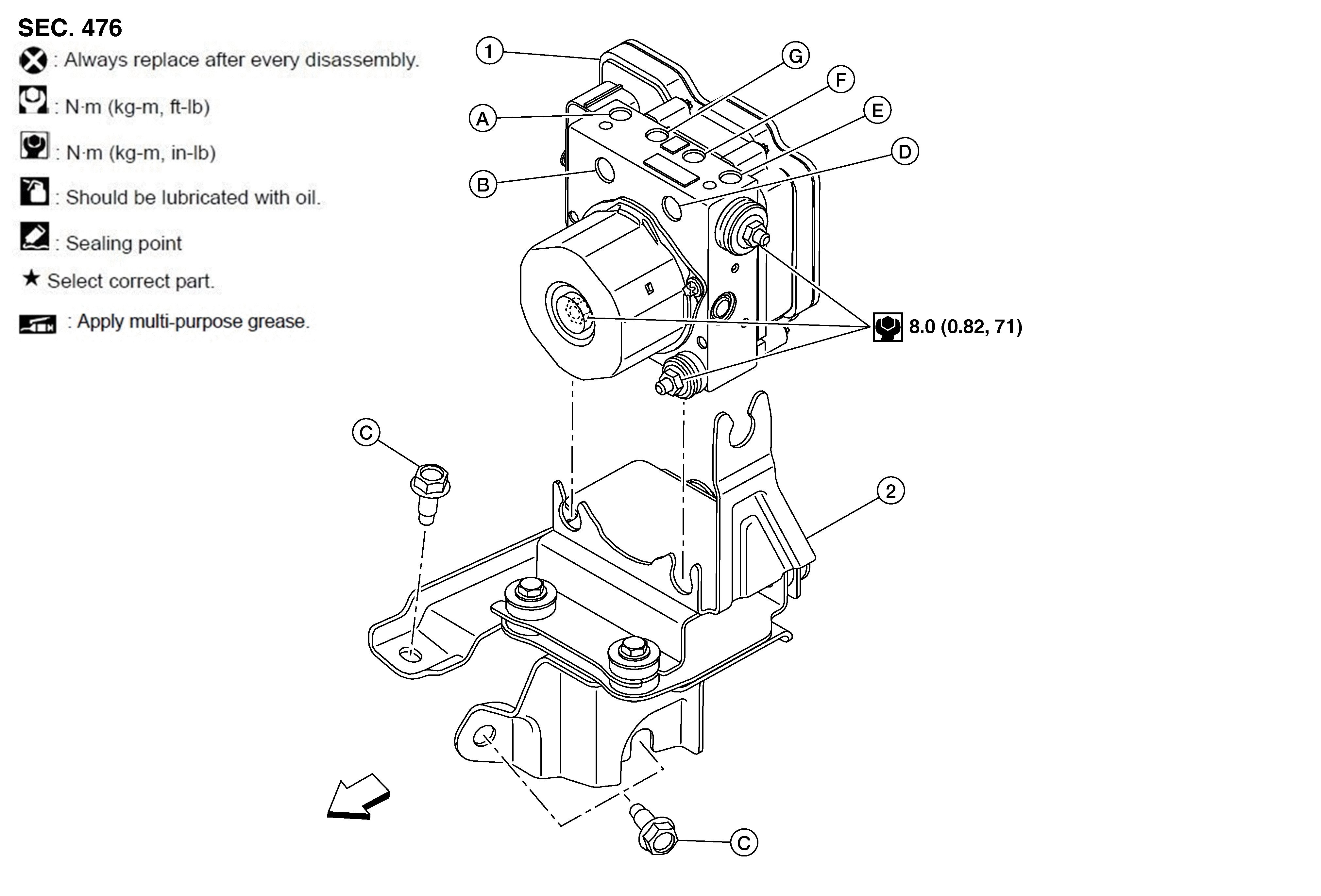

Exploded View

1.

ABS actuator and electric unit (control unit)

2.

Bracket

A.

To rear (RH) brake caliper. Refer to Exploded View .

B.

From master cylinder secondary side. Refer to Exploded View .

C.

Refer to Removal and Installation .

D.

From master cylinder primary side. Refer to Exploded View .

E.

To rear (LH) brake caliper. Refer to Exploded View .

F.

To front (RH) brake caliper. Refer to Exploded View .

G.

To front (LH) brake caliper. Refer to Exploded View .

Front
