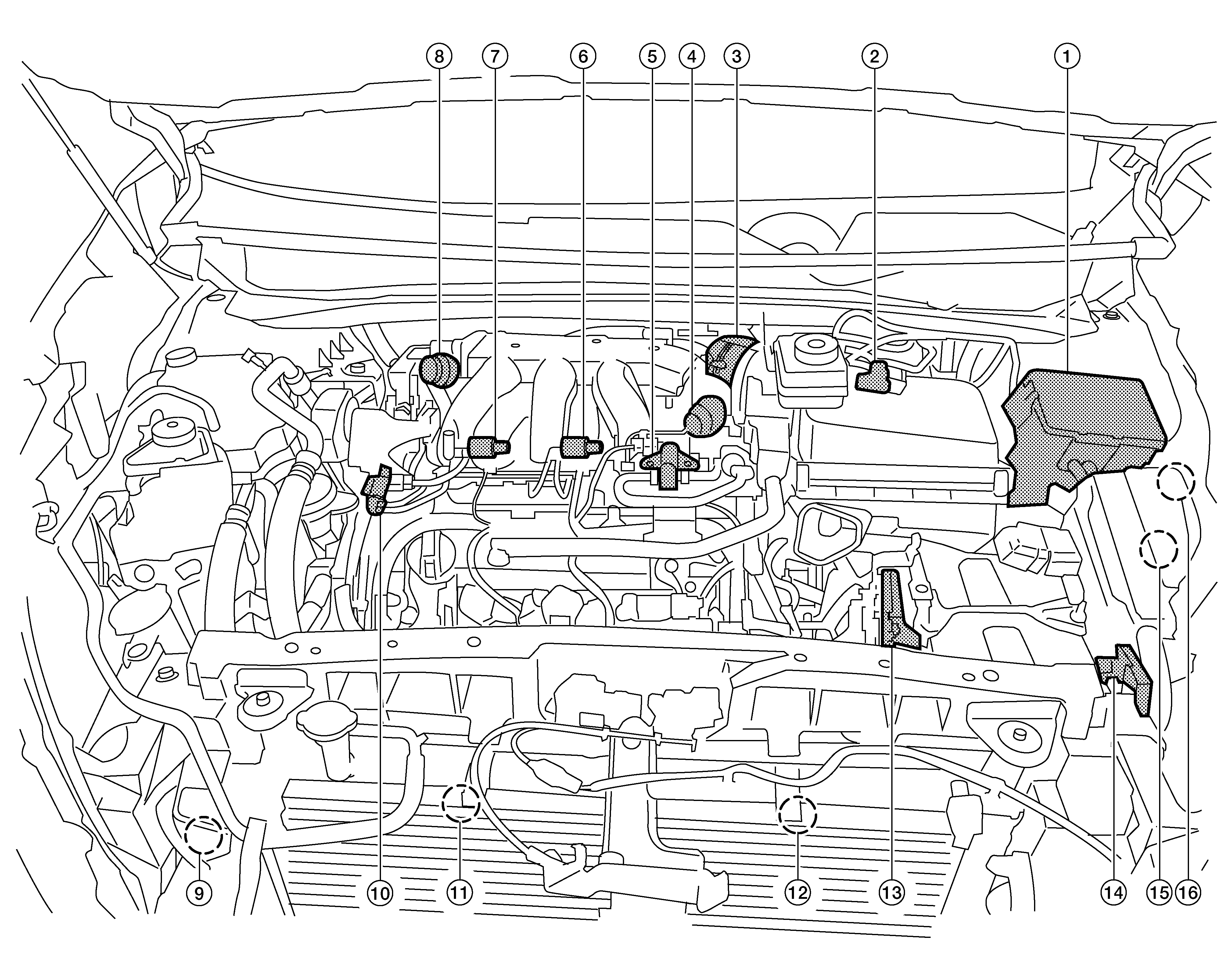

Engine Room
|
No. |
Component |
Function |
|
|
IPDM E/R |
IPDM E/R activates the internal control circuit to perform the relay ON-OFF control according to the input signals from various sensors and the request signals received from control units via CAN communication. Refer to Component Location for detailed installation location. |
|
|
Mass air flow sensor (with intake air temperature sensor) |
|
|
|
Electric throttle control actuator |
|
|
|
Power valve actuator 2 |
|
|
|
EVAP canister purge volume control solenoid valve |
|
|
|
VIAS control solenoid valve 2 |
|
|
|
VIAS control solenoid valve 1 |
|
|
|
Power valve actuator 1 |
|
|
|
Refrigerant pressure sensor |
Refer to Component Location for detailed installation location. |
|
|
Electronic controlled engine mount control solenoid valve |
|
|
|
Cooling fan motor-2 |
|
|
|
Cooling fan motor-1 |
|
|
|
ECM |
|
|
|
Battery current sensor (with battery temperature sensor)* |
-- |
|
|
Cooling fan relay-2 |
-- |
|
|
Cooling fan relay-3 |
*: Not used for engine control system.
