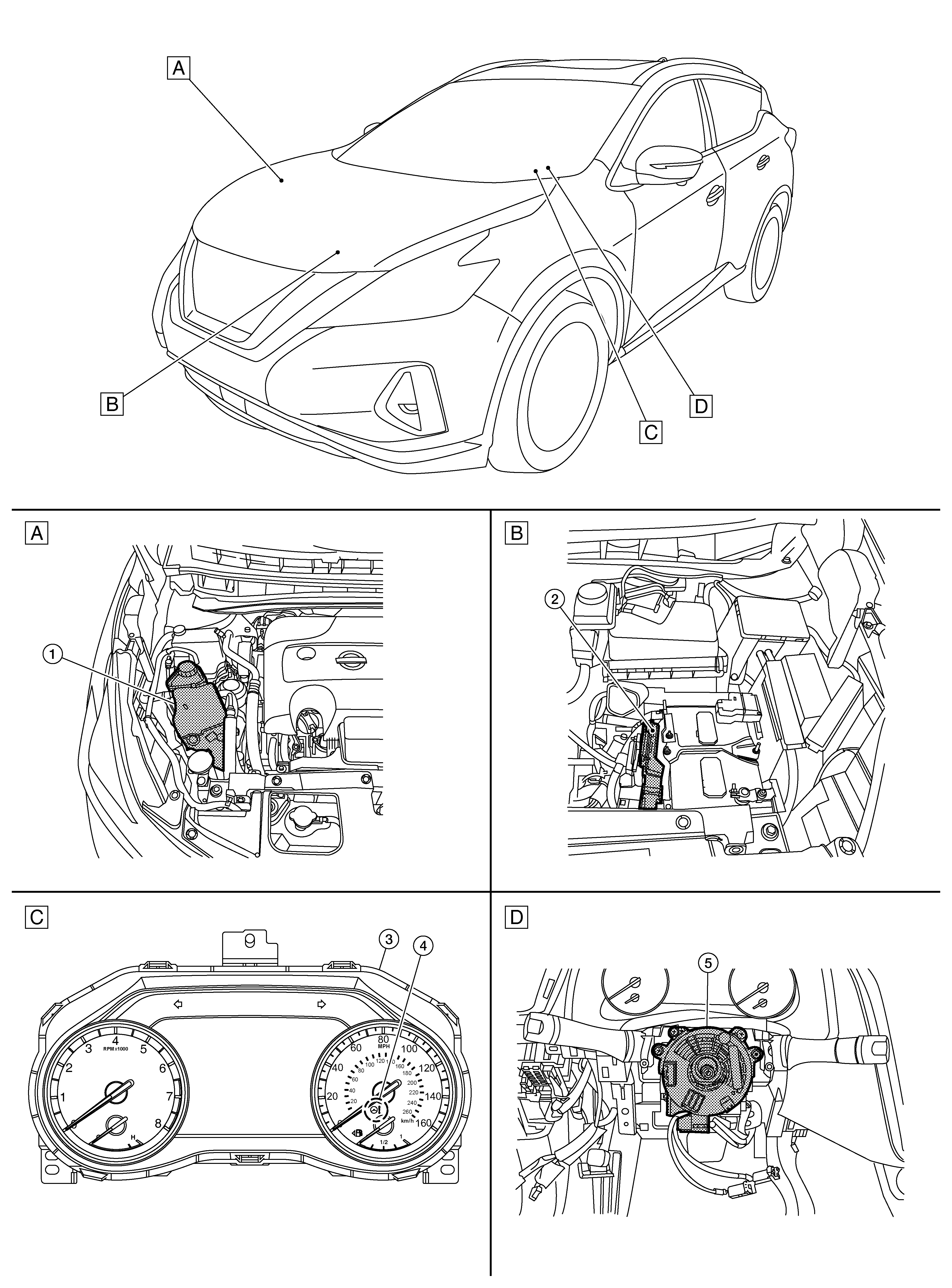

Component Location

A.

Engine room right side

B.

Engine room left side

C.

Instrument panel

(view with combination meter removed)

D.

View with heated steering wheel removed

No.

Component

Function

1.

Power steering oil pump assembly

Reservoir tank

Refer to Power Steering Oil Pump Assembly .

Power steering oil pump

Power steering motor

Power steering control module

2.

ECM (Engine Control Module)

Transmits mainly the following signal to power steering control module via CAN communication:

• Engine status signal

  Refer to Component Location for detailed component location.

3.

Combination meter

Transmits mainly the following signal to power steering control module via CAN communication:

• Vehicle speed signal

  Refer to Component Location for detailed component location.

The hydraulic pump electric power steering system warning lamp turns ON according to the signal received by CAN communication from the power steering control module.

4.

Hydraulic pump electric power steering system warning lamp (in combination meter)

Refer to Warning Lamp/Indicator Lamp .

5.

Steering angle sensor

Transmits mainly the following signal to power steering control module via CAN communication:

• Steering angle sensor signal

  Refer to Component Location for detailed component location.
