Disassembly and Assembly: Disassembly

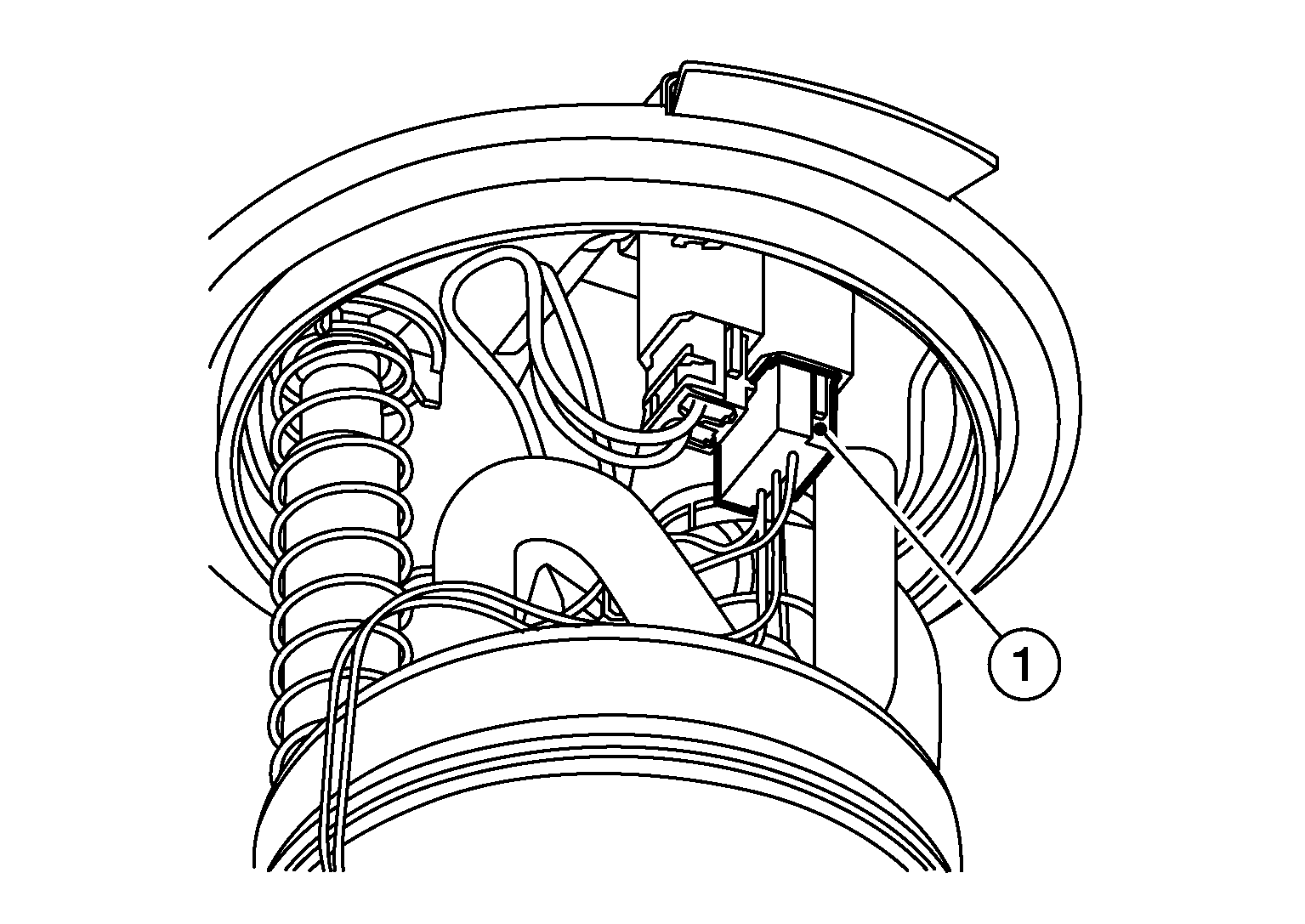

Disconnect fuel level sensor unit/fuel tank temperature sensor harness connector (1).

Courtesy of NISSAN NORTH AMERICA, INC.

NOTE: Hold connector with your fingers, because there is no tab for releasing stopper. Pull it out straight downward.

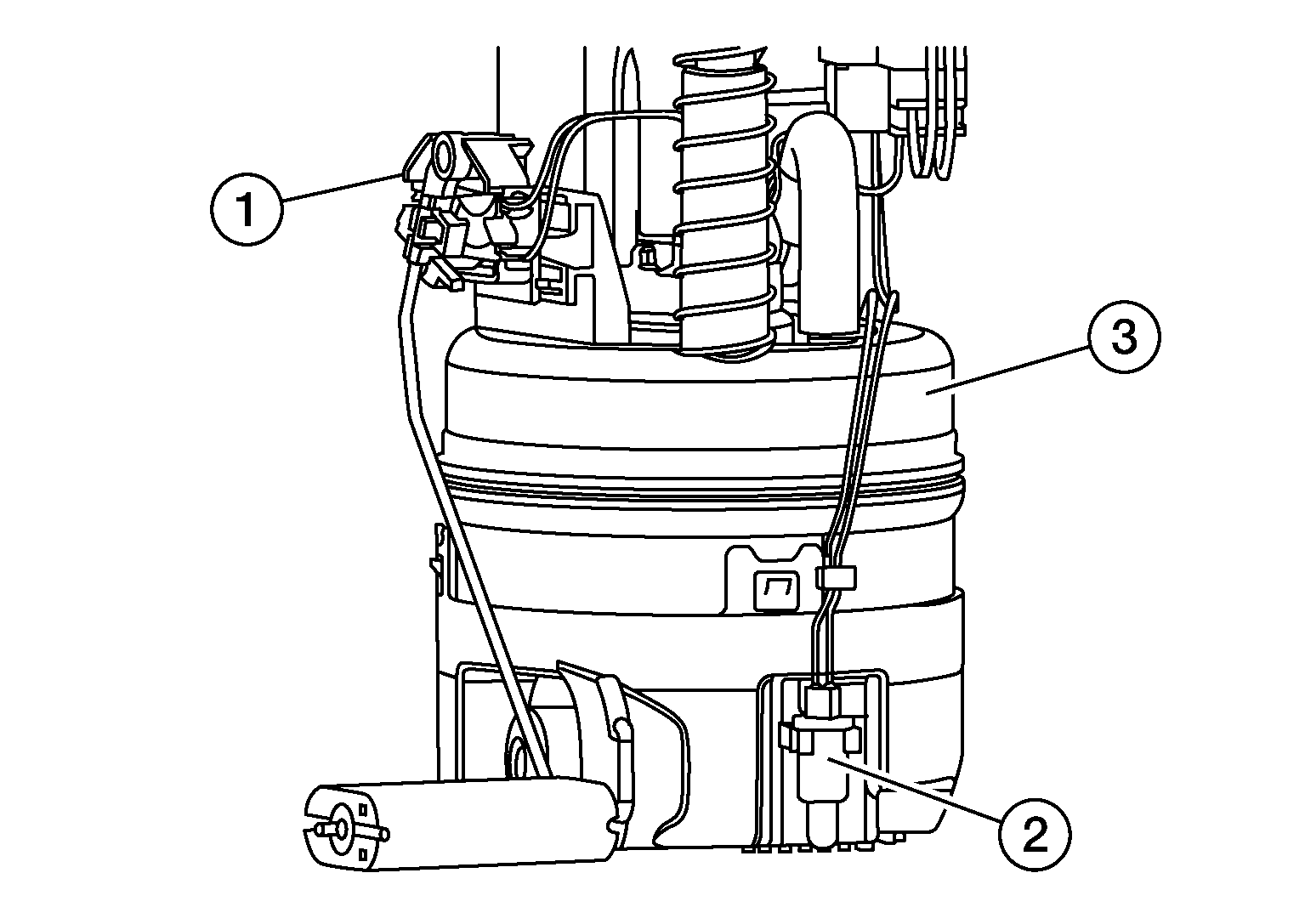

Remove fuel tank temperature sensor (2) from fuel filter and fuel pump assembly (3).

Courtesy of NISSAN NORTH AMERICA, INC.

(1)

: Fuel level sensor unit

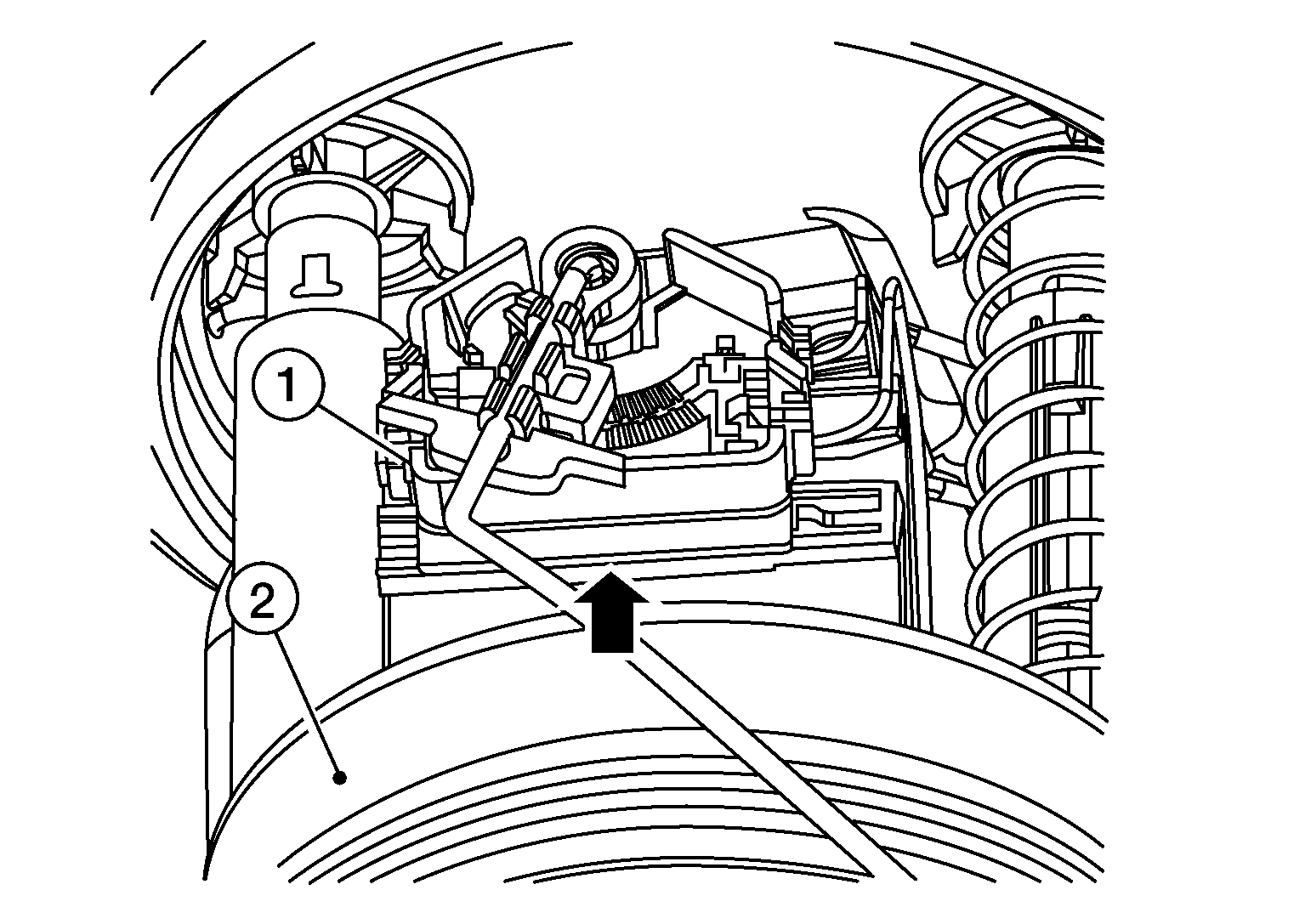

Using a suitable tool press up on clip ( ) and remove fuel level sensor unit (1) from fuel filter and fuel pump assembly (2).

Courtesy of NISSAN NORTH AMERICA, INC.
CAUTION:
- Be careful not to damage the fuel level sensor unit.
- Do not disassemble fuel filter and fuel pump assembly.
