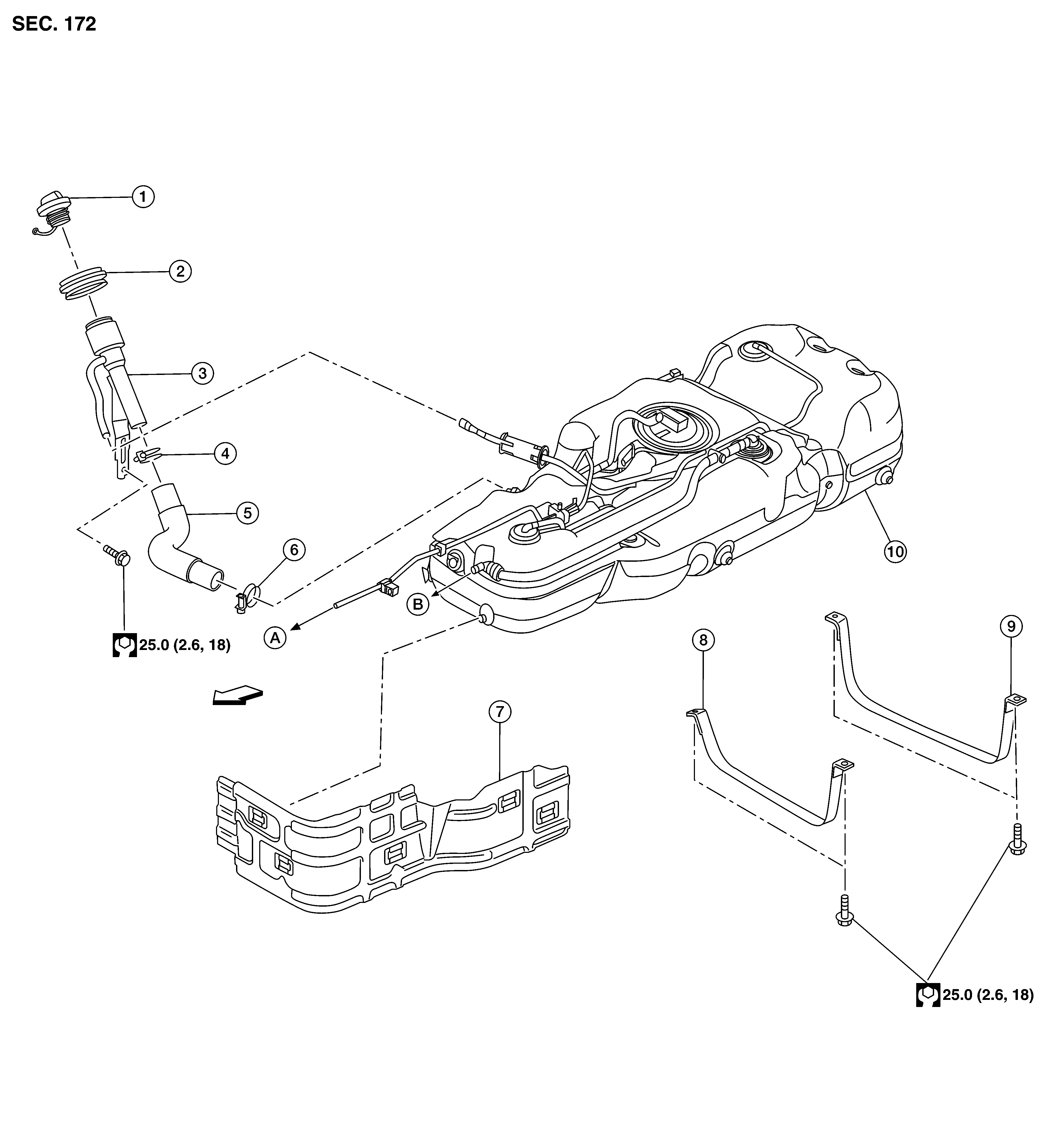

1.
Fuel filler cap
2.
Grommet
3.
Fuel filler tube
4.
Clamp
5.
Fuel filler hose
6.
7.
Protector
8.
Fuel tank mounting band (front)
9.
Fuel tank mounting band (rear)
10.
Fuel tank
A.
To Engine
B.
To EVAP canister
Front
