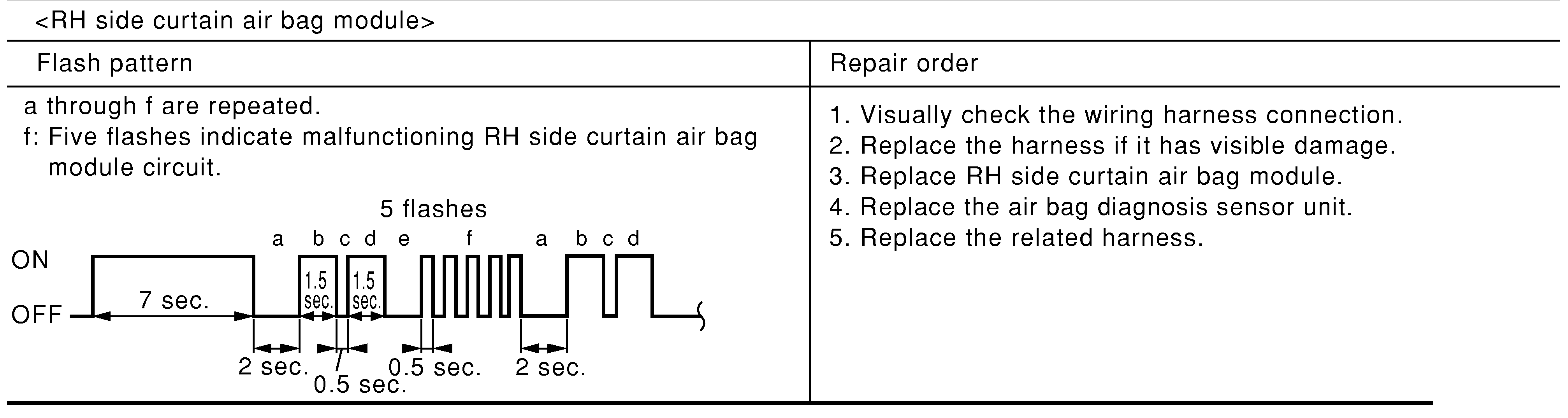

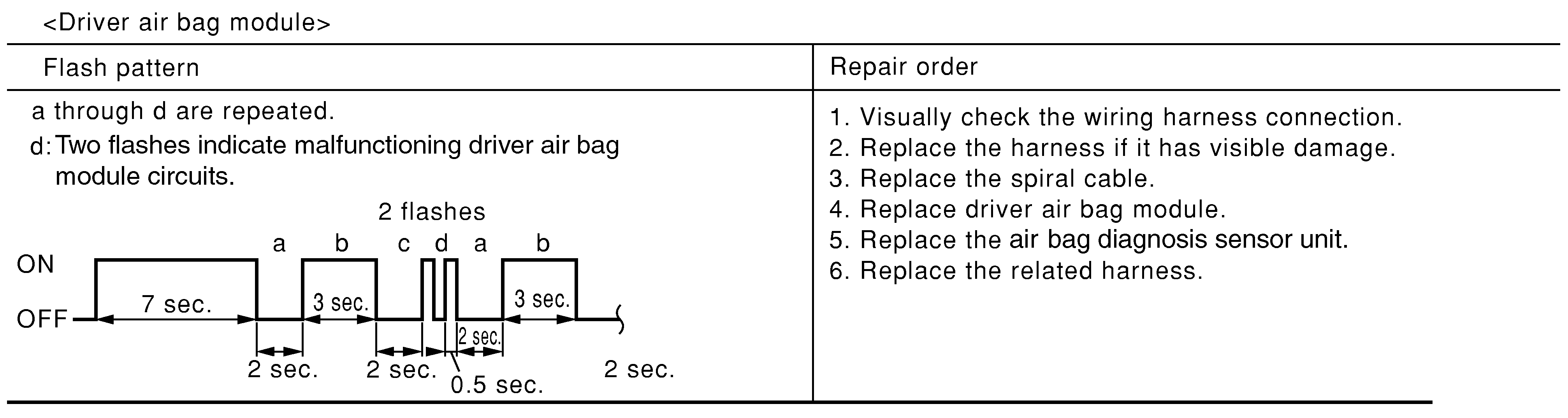

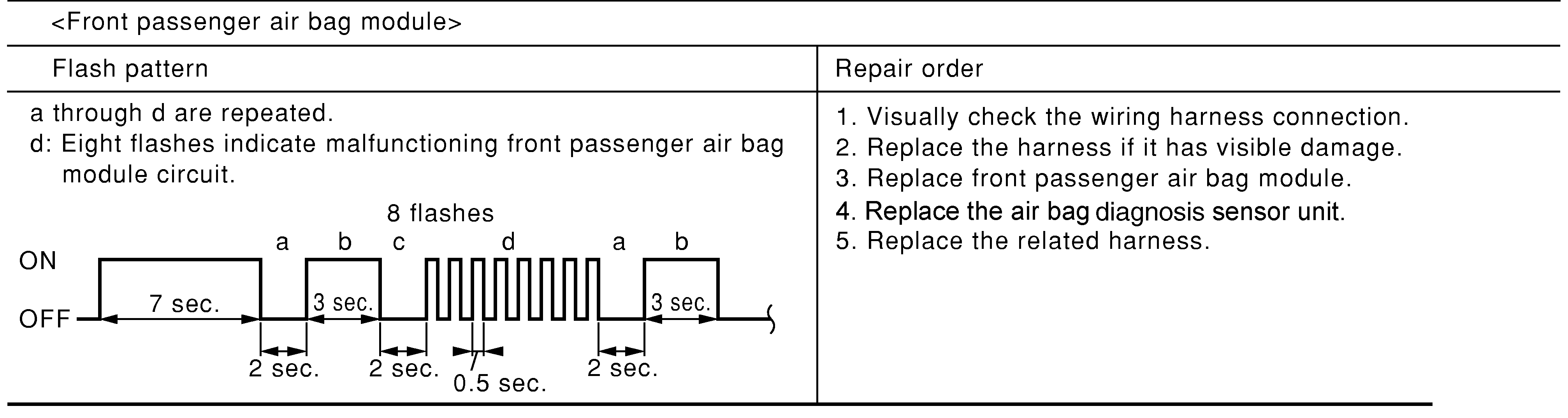

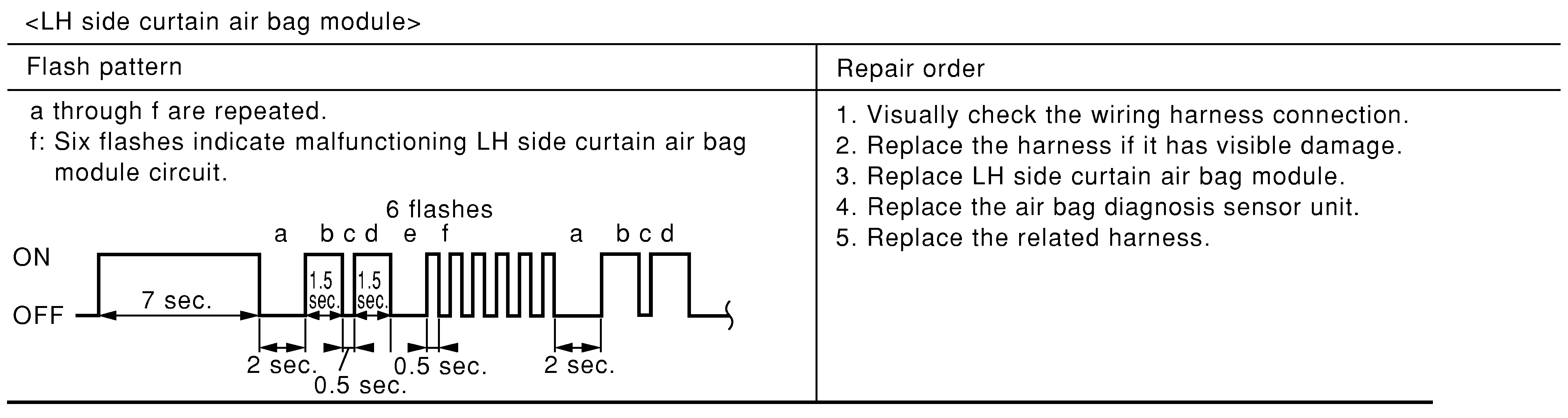

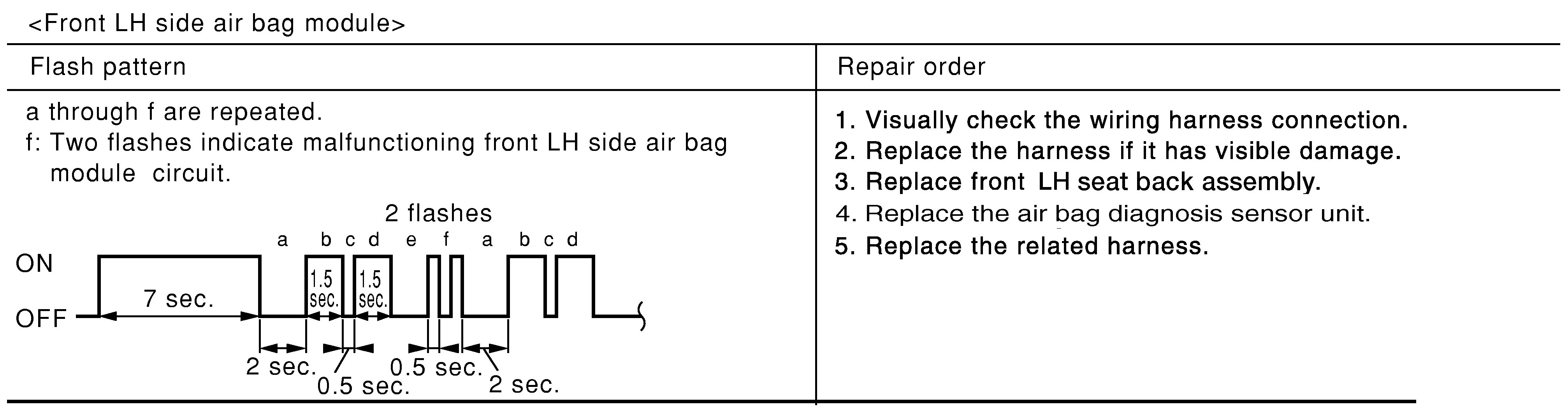

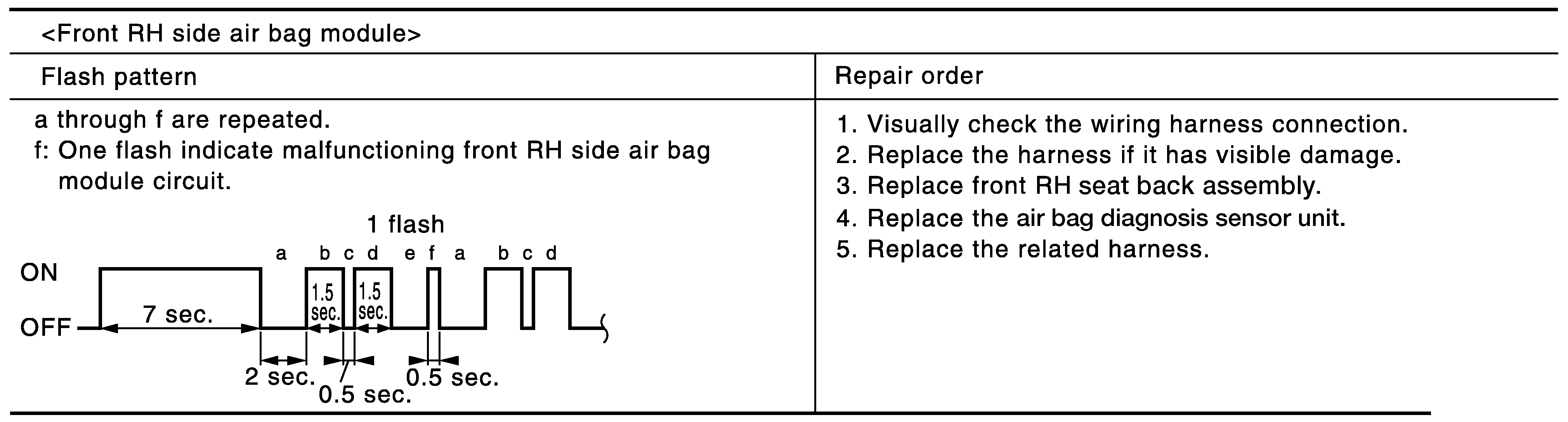

Warning Lamp Flash Code Chart
NOTE:
Follow the procedures in numerical order when repairing malfunctioning parts. Confirm whether malfunction is eliminated using air bag warning lamp each time repair is finished. If malfunction is still observed, proceed to the next step. When malfunction is eliminated, further repair work is not required.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
 Courtesy of NISSAN NORTH AMERICA, INC.
|
 Courtesy of NISSAN NORTH AMERICA, INC.
|
 Courtesy of NISSAN NORTH AMERICA, INC.
|
 Courtesy of NISSAN NORTH AMERICA, INC.
|
 Courtesy of NISSAN NORTH AMERICA, INC.
|
 Courtesy of NISSAN NORTH AMERICA, INC.
|
 Courtesy of NISSAN NORTH AMERICA, INC.
|
 Courtesy of NISSAN NORTH AMERICA, INC.
|
 Courtesy of NISSAN NORTH AMERICA, INC.
|
 Courtesy of NISSAN NORTH AMERICA, INC.
|
 Courtesy of NISSAN NORTH AMERICA, INC.
|
 Courtesy of NISSAN NORTH AMERICA, INC.
|
 Courtesy of NISSAN NORTH AMERICA, INC.
|
 Courtesy of NISSAN NORTH AMERICA, INC.
|
 Courtesy of NISSAN NORTH AMERICA, INC.
|
 Courtesy of NISSAN NORTH AMERICA, INC.
|
 Courtesy of NISSAN NORTH AMERICA, INC.
|
