Brake Fluid Level Switch

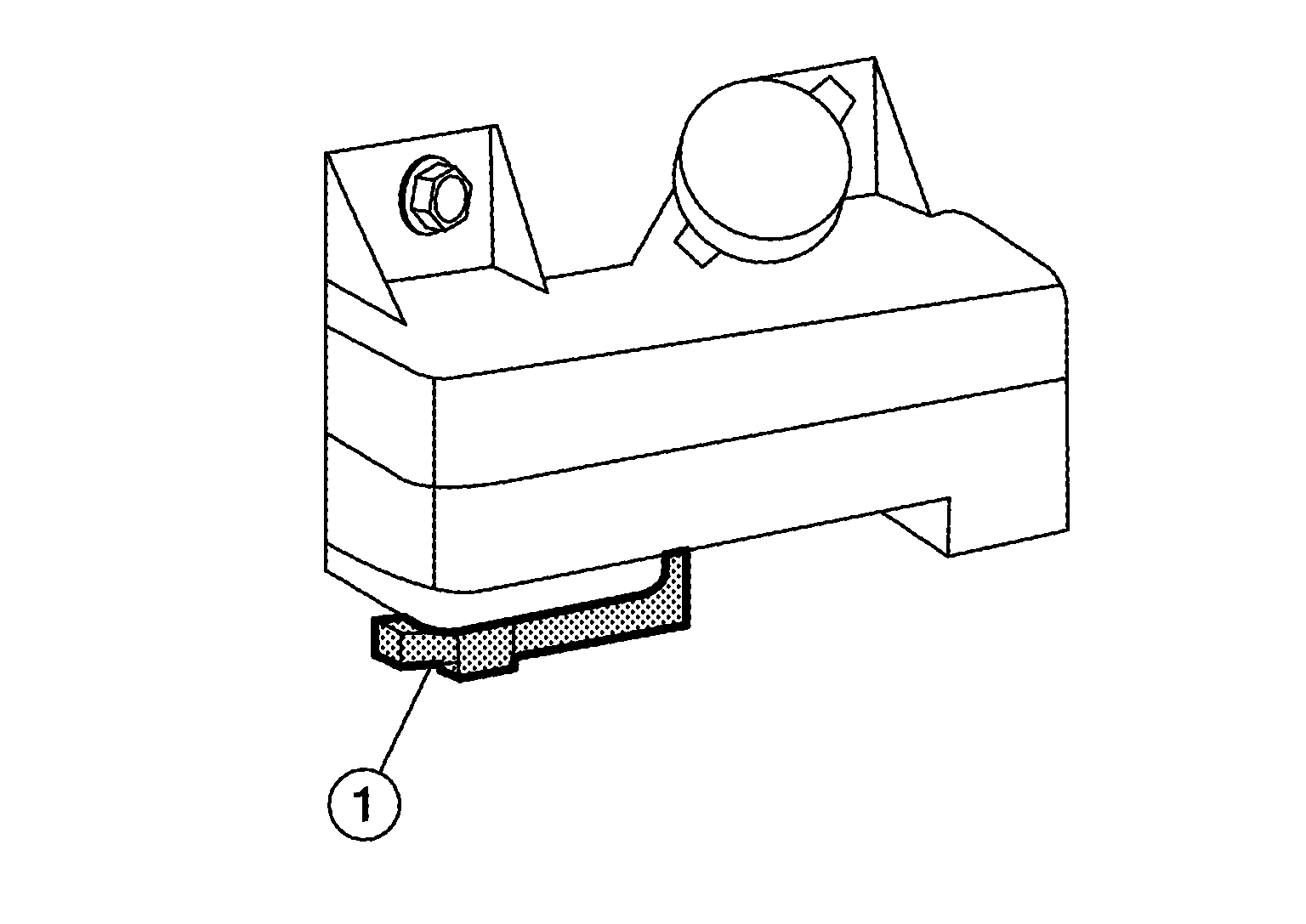

The brake fluid level switch (1) is located on the left side of the master cylinder reservoir.

Detects the brake fluid level in reservoir tank and transmits converted electric signal from combination meter to ABS actuator and electric unit (control unit) via CAN communication.

Courtesy of NISSAN NORTH AMERICA, INC.
