Ignition Timing: Inspection

  1. CHECK IGNITION TIMING

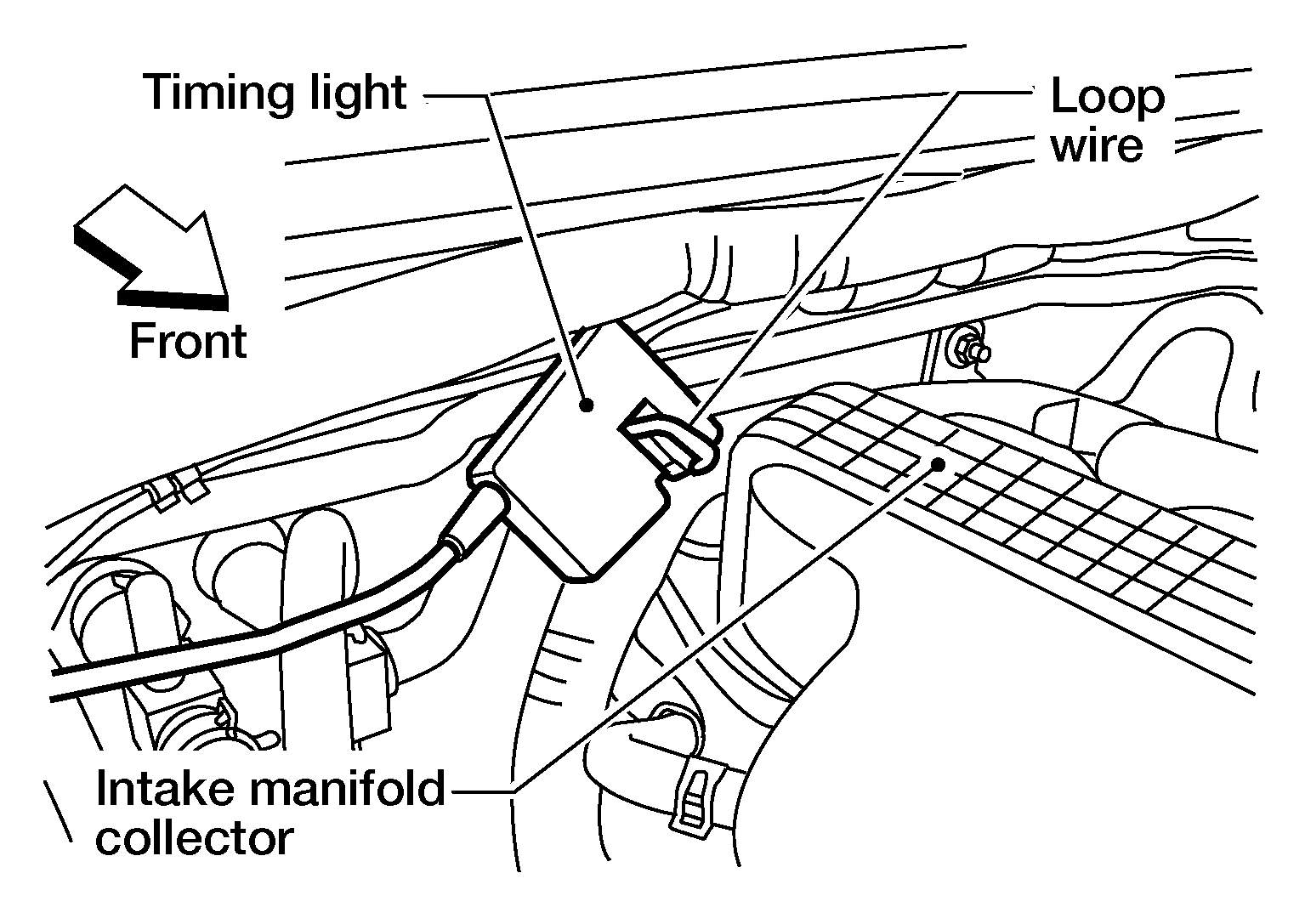

    1. Attach timing light to loop wire as shown.
      G04147880Courtesy of NISSAN NORTH AMERICA, INC.

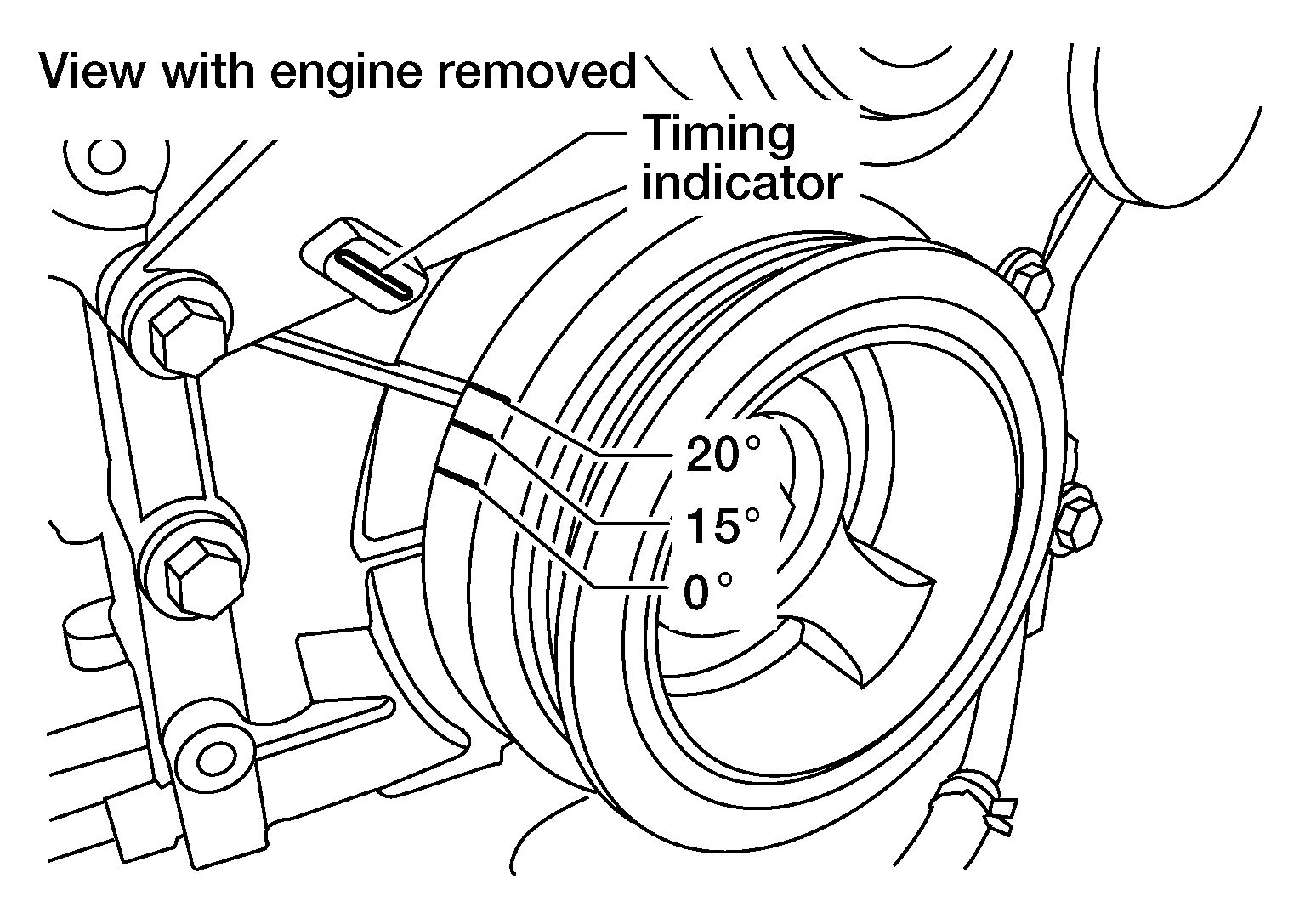

    2. Check ignition timing.
      G04147876Courtesy of NISSAN NORTH AMERICA, INC.

    INSPECTION END
