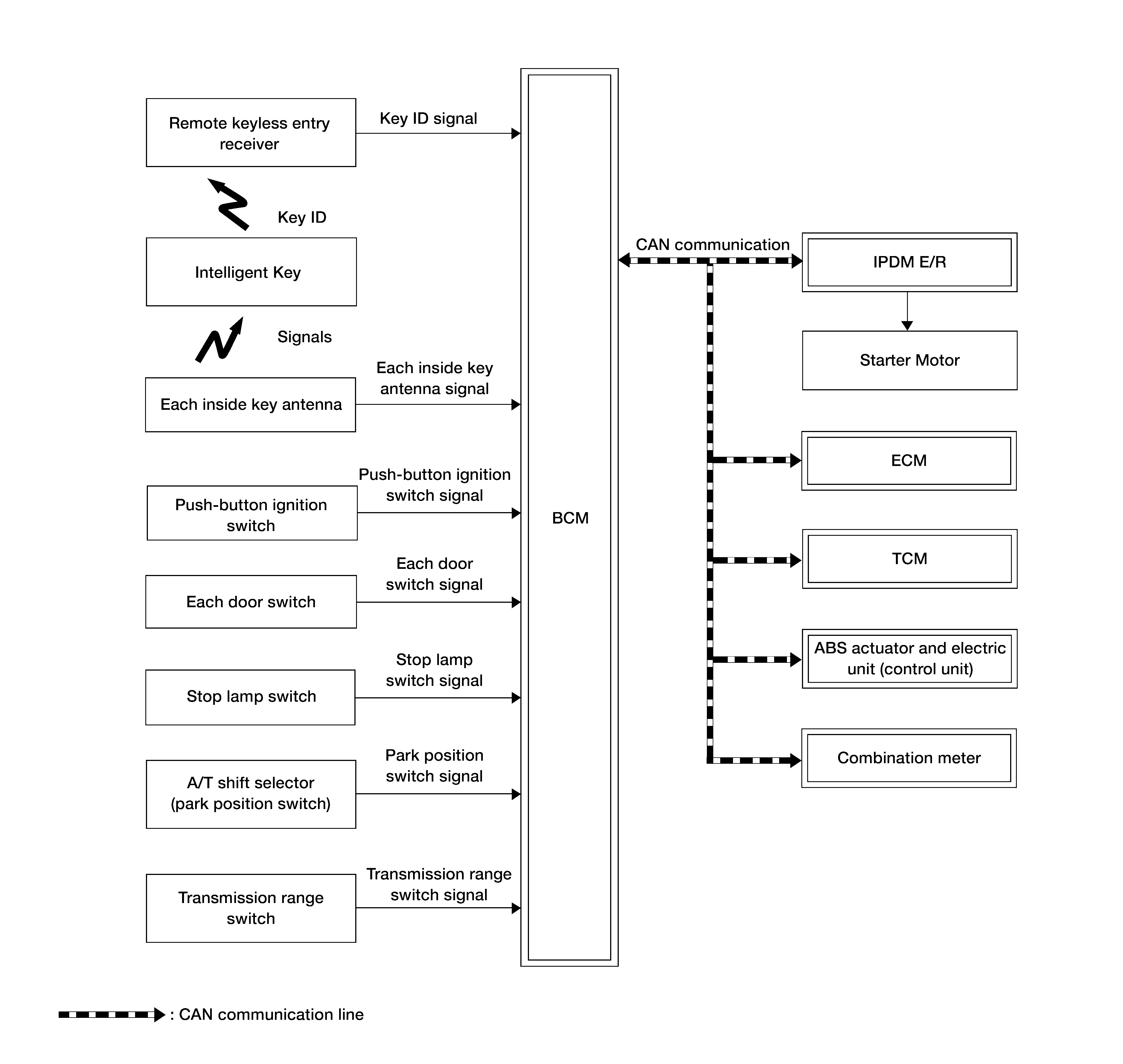

System Diagram

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
GNSALKIA4331GB-331Courtesy of NISSAN NORTH AMERICA, INC.
