Exploded View

WARNING: This page is about a different car, the 2018 Nissan Titan XD and 2018 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

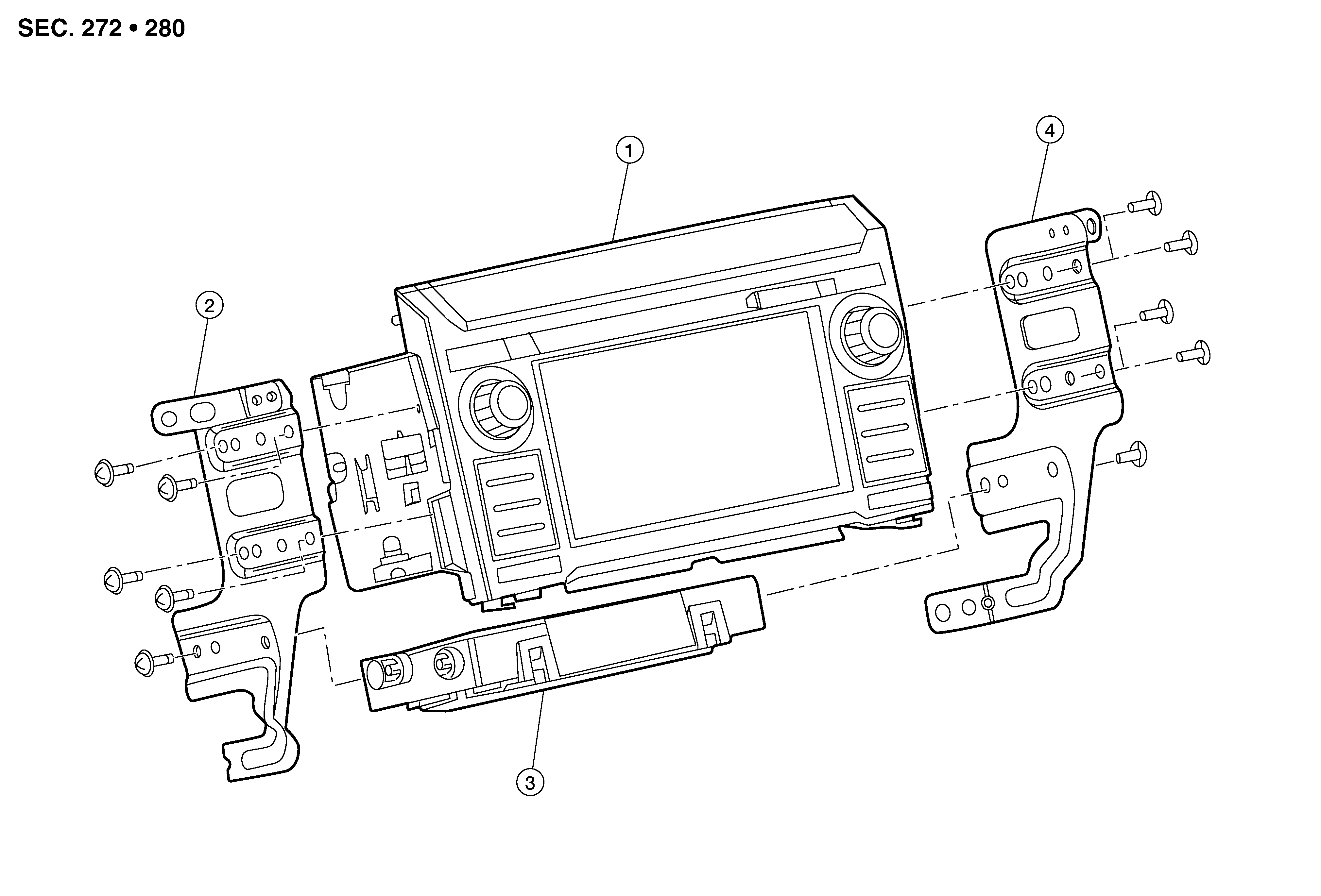

1.	AV control unit	2.	AV control unit bracket (LH)	3.	A/C auto amp.
4.	AV control unit bracket (RH)
