CVT models

No.

Component

Function

TCM (MR engine models)

• The TCM receives the following signal via CAN communications from the combination meter.
  • ECO mode switch signal
  • SPORT mode switch signal

• The TCM transmits the following signal via CAN communications to the ECM.
  • ECO mode signal
  • SPORT mode signal

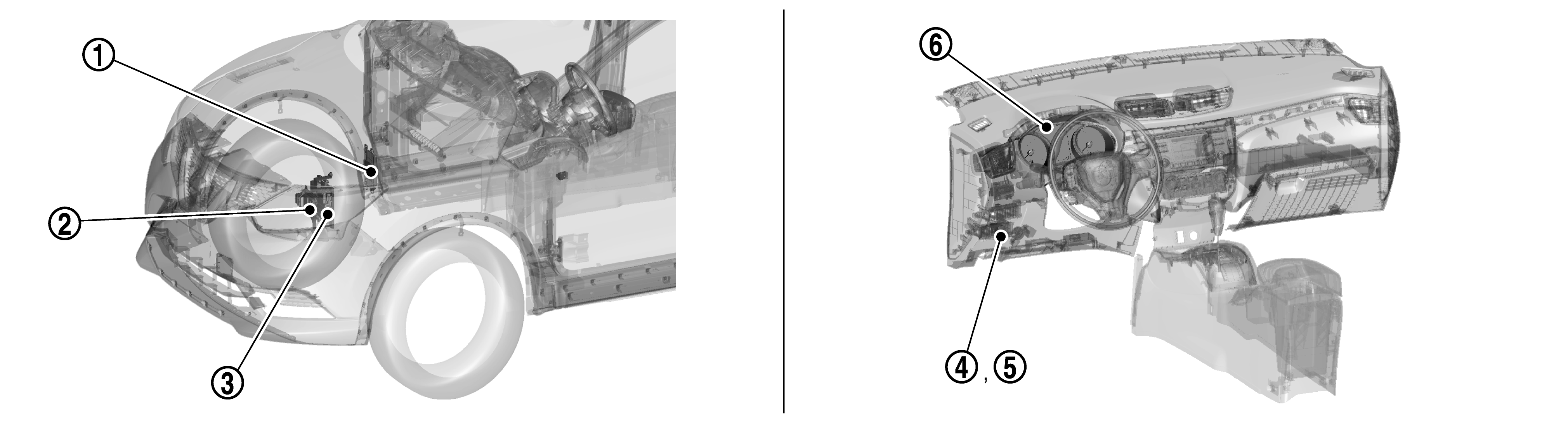

Refer to Component Location . for detailed installation location.

TCM*

--

ECM

• The ECM receives the following signal via CAN communications from the TCM.
  • ECO mode signal
  • SPORT mode signal

• The ECM transmits the following signal via CAN communications to the combination meter.
  • ECO mode indicator signal
  • SPORT mode indicator signal

Refer to Component Location . for detailed installation location.

ECO mode switch

Refer to Component Description .

SPORT mode switch

Refer to Component Description .

Combination meter

• The combination meter transmits the following signal via CAN communications to the TCM.
  • ECO mode switch signal
  • SPORT mode switch signal

• The combination meter receives the following signal via CAN communications from the ECM.
  • ECO mode indicator signal
  • SPORT mode indicator signal

Refer to Component Location . for detailed installation location.
