CVT models

DESIGN/PURPOSE

The ECO mode indicator informs the driver that the vehicle is in ECO mode.

Courtesy of NISSAN NORTH AMERICA, INC.

OPERATION AT COMBINATION METER CAN COMMUNICATION CUT-OFF OR UNUSUAL SIGNAL

For actions on CAN communications blackout in the combination meter, refer to Fail-safe .

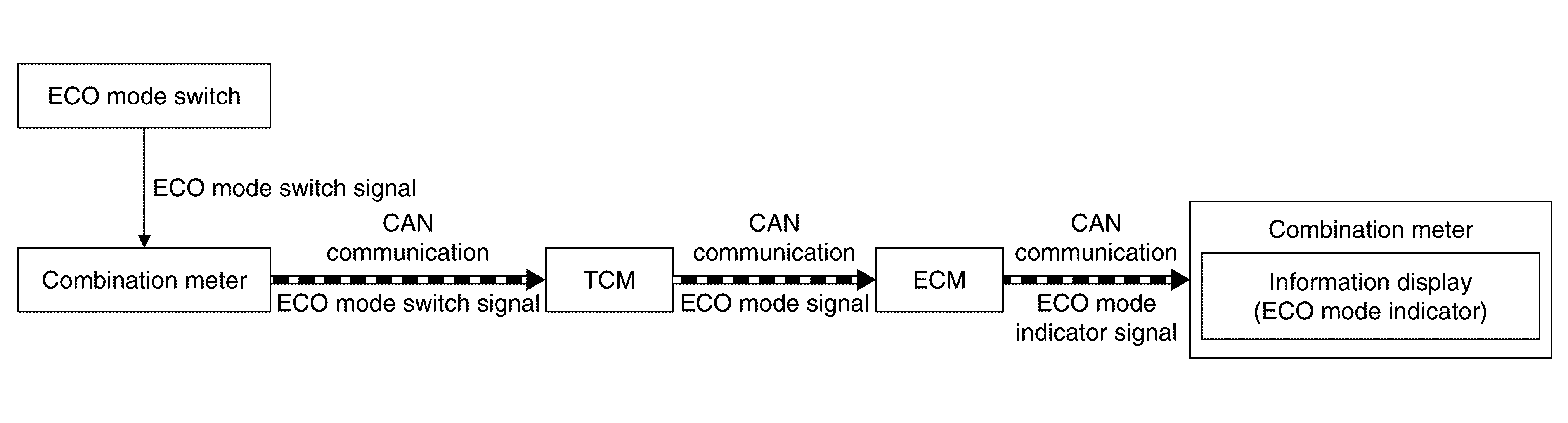

SYSTEM DIAGRAM

Courtesy of NISSAN NORTH AMERICA, INC.

SIGNAL PATH

• TCM receives ECO mode switch signal (ON/OFF) from combination meter via CAN communication. Based on the signal, TCM transmits ECO mode signal to ECM via CAN communication.
• ECM transmits ECO mode indicator signal to combination meter via CAN communication. Based on the signal, combination meter illuminates ECO mode indicator.

LIGHTING CONDITION

When all of the following conditions are satisfied.

• Ignition switch: ON
• The ECO mode switch is pressed when the ECO mode indicator is OFF

SHUTOFF CONDITION

When any of the condition listed below is satisfied.

• Ignition switch: Other than ON
• The ECO mode switch is pressed when the ECO mode indicator is ON.

TIMING CHART

Courtesy of NISSAN NORTH AMERICA, INC.
