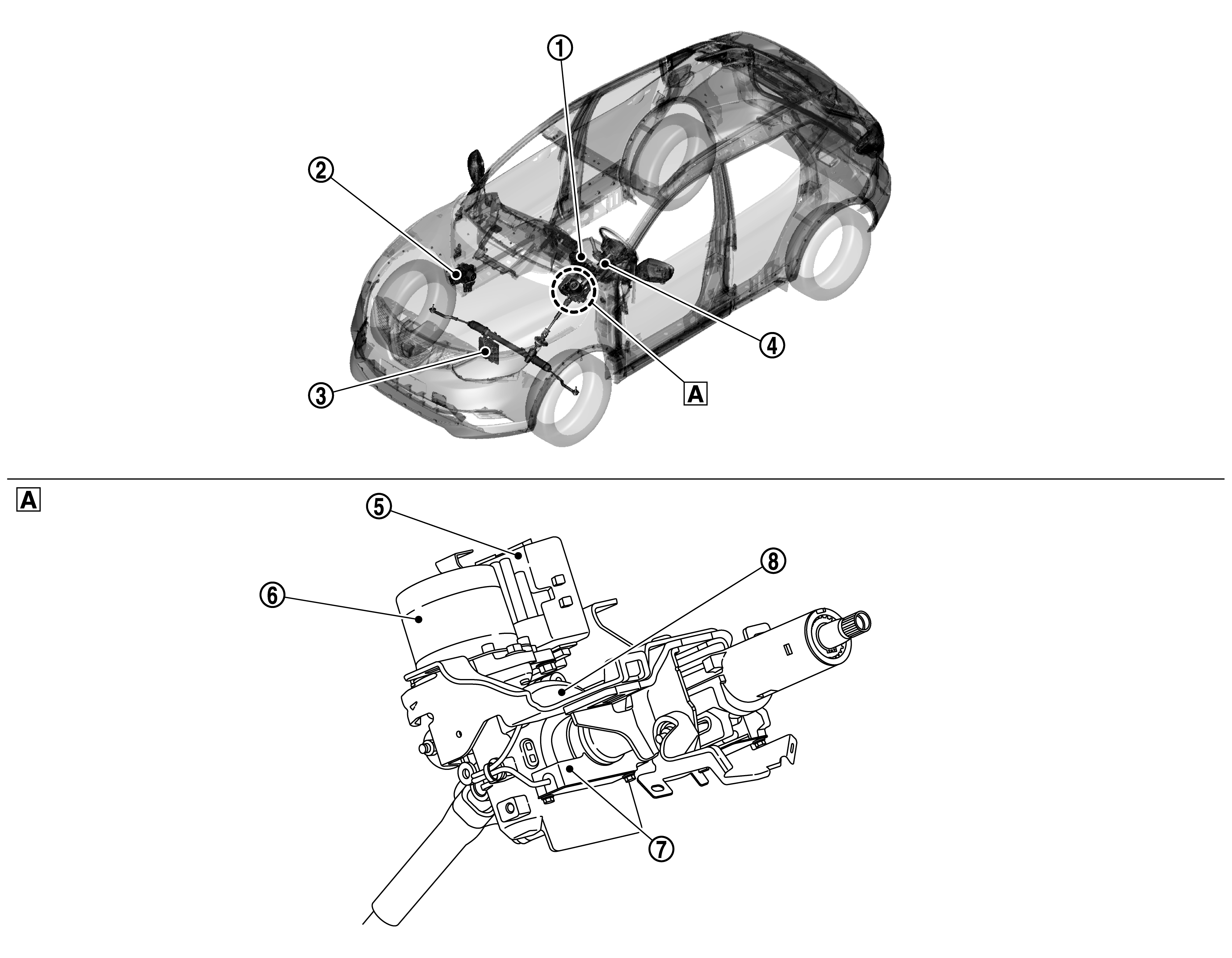

Component Location

Steering column assembly

No.

Component

Function

Combination meter

(Electric power steering warning lamp)

• Transmits mainly the following signal to EPS control unit via CAN communication.
  • Vehicle speed signal (Meter)
• For detailed installation location, refer to Component Location .
• Turns ON the Electric power steering warning lamp according to the signal from EPS control unit via CAN communication.
• For electric power steering warning lamp, refer to Warning / Indicator / Chime List .

ABS actuator and electric unit (control unit)

• Transmits mainly the following signal to EPS control unit via CAN communication.
  • Vehicle speed signal (ABS)
• For detailed installation location, refer to Component Location .

ECM

• Transmits mainly the following signals to EPS control unit via CAN communication.
  • Engine status signal
• Receives mainly the following signal to EPS control unit via CAN communication.

Steering angle sensor

• Transmits mainly the following signals to EPS control unit via CAN communication.
  • Steering angle sensor signal
• For detailed installation location, refer to Component Location .

EPS control unit

Refer to Component Description .

EPS motor

Refer to Component Description .

Torque sensor

Refer to Component Description .

Reduction gear

Refer to Component Description .
