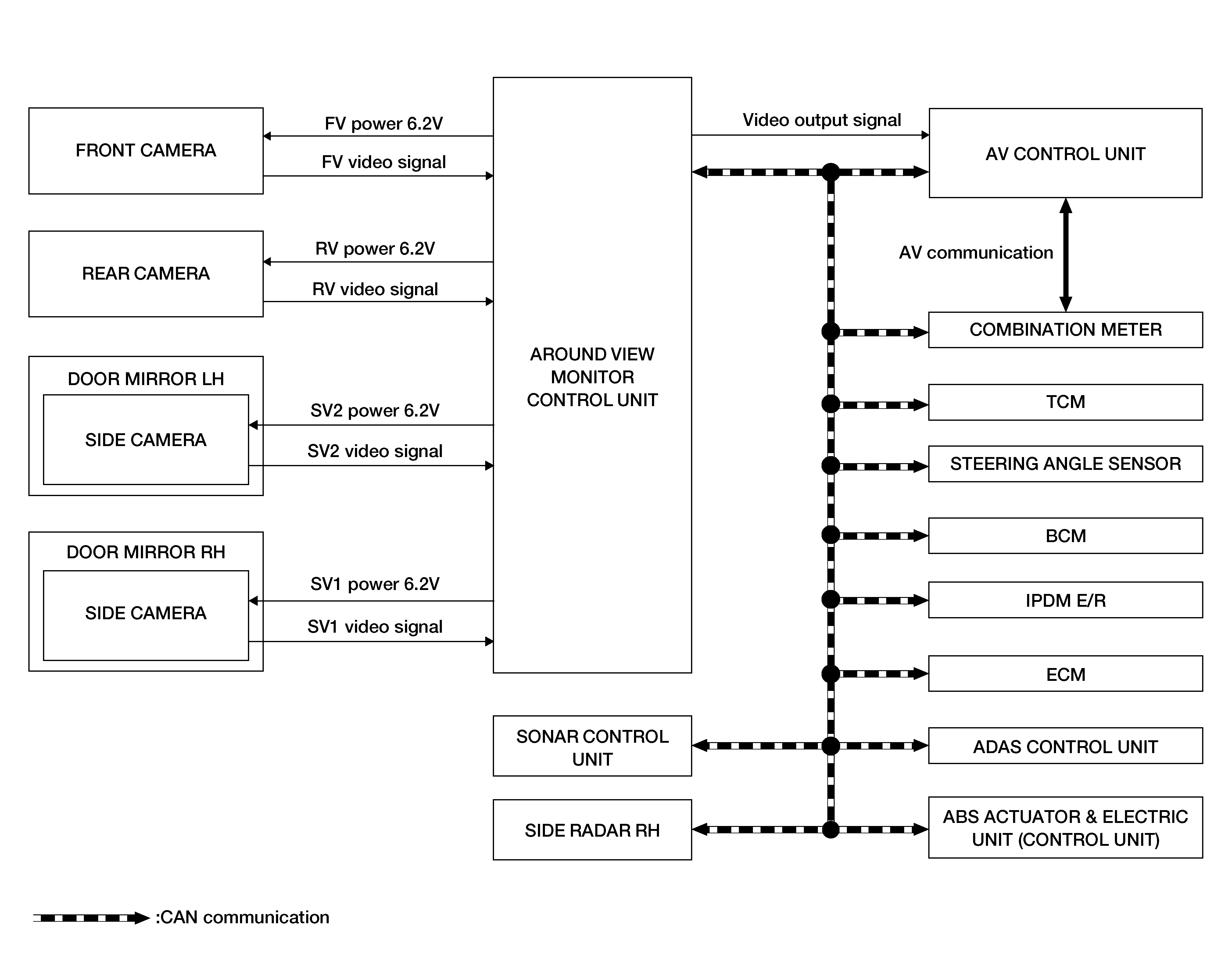

System Diagram
Around View Monitor Control Unit Input Signal (CAN Communication)
|
Transmit unit |
Signal name |
|
ABS actuator and electric unit (Control unit) |
Vehicle speed signal |
|
ADAS control unit |
Alert 1 and 2 signal |
|
AV control unit |
Camera switch signal |
|
BCM |
Door switch state signal |
|
Combination meter |
Parking brake signal |
|
ECM |
Pedal failure signal |
|
IPDM E/R |
Ignition supply signal |
|
Side radar RH |
right and left alert signal |
|
Sonar control unit |
Display request signal |
|
Steering Angle Sensor |
Steering wheel angle signal |
|
TCM |
Transmission range sensor signal |
