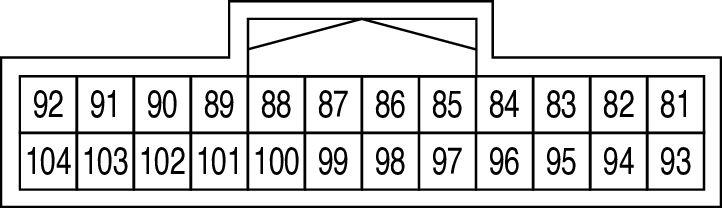

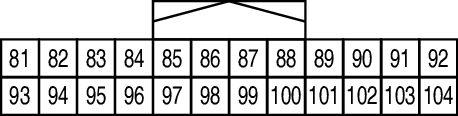

BCM (Body Control Module) Connector End View (M85)
Connector Types: TH24FGY-NH
Connector Color: GRAY
| Terminal No. | Color of Wire | Signal Name (Specification) |
|---|---|---|
| 81 | LA/G | DR DOOR SW |
| 82 | - | - |
| 83 | - | - |
| 84 | - | - |
| 85 | - | - |
| 86 | - | - |
| 87 | - | - |
| 88 | - | - |
| 89 | - | - |
| 90 | - | - |
| 91 | - | - |
| 92 | - | - |
| 93 | BR | AS DOOR SW B |
| 94 | Y | RL DOOR SW |
| 95 | V | RR DOOR SW |
| 96 | W | TRUNK SW |
| 97 | - | - |
| 98 | LA/P | TRUNK OUTSIDE OPENER SW |
| 99 | - | - |
| 100 | - | - |
| 101 | - | - |
| 102 | - | - |
| 103 | - | - |
| 104 | - | - |
