Cooling Fan Control Module Connector End View (F63)

Connector Types:  8200573202

Connector Color:  GRAY

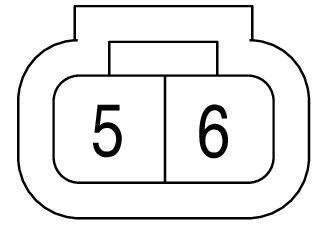

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
5	G	FAN CONNECTION
6	LG	POWER SUPPLY
