Cooling Fan Control Module Connector End View (F67)

Connector Types:  RH04FB

Connector Color:  BLACK

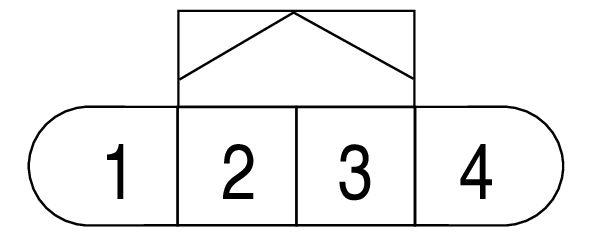

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
1	B	GROUND
2	W	POWER SUPPLY DRIVE
3	GR	LOW SPEED DRIVE
4	LG	HIGH SPEED DRIVE
