EVAP Control System Pressure Sensor Connector End View (B65)

Connector Types:  E03FGY-RS

Connector Color:  GRAY

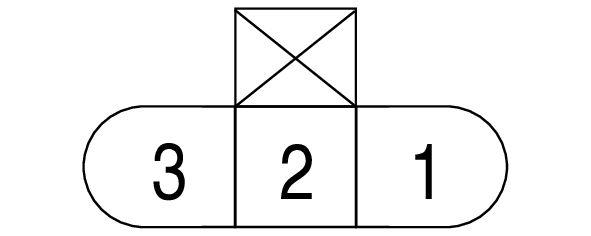

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

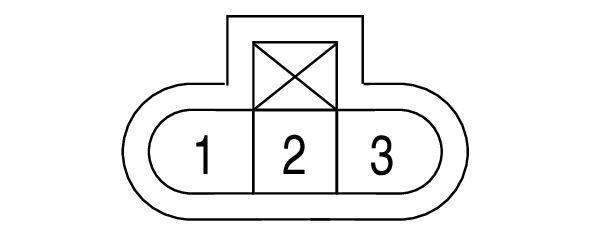

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
1	Y	SENSOR GROUND
2	L	EVAP CONTROL SYSTEM PRESSURE SENSOR
3	SB	SENSOR POWER SUPPLY
