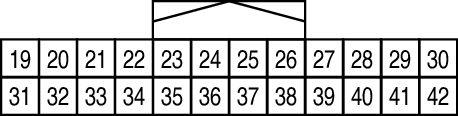

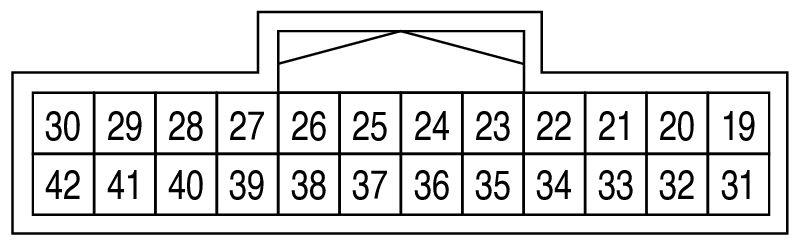

IPDM E/R (Intelligent Power Distribution Module Engine Room) Connector End View (E43)
Connector Types: TH24FGY-NH
Connector Color: GRAY
| Terminal No. | Color of Wire | Signal Name (Specification) |
|---|---|---|
| 19 | L | IGNITION |
| 20 | - | - |
| 21 | - | - |
| 22 | P | CAN-L |
| 23 | - | - |
| 24 | L | CAN-H |
| 25 | - | - |
| 26 | - | - |
| 27 | - | - |
| 28 | - | - |
| 29 | - | - |
| 30 | - | - |
| 31 | B | GROUND |
| 32 | - | - |
| 33 | BR | AUTO STOP WIPER |
| 34 | - | - |
| 35 | - | - |
| 36 | - | - |
| 37 | - | - |
| 38 | - | - |
| 39 | L | CAN-H |
| 40 | P | CAN-L |
| 41 | - | - |
| 42 | - | - |
