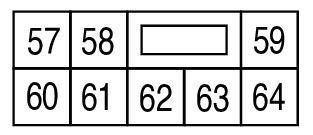

IPDM E/R (Intelligent Power Distribution Module Engine Room) Connector End View (E44)
Connector Types: NS08FW-CS
Connector Color: WHITE
| Terminal No. | Color of Wire | Signal Name (Specification) |
|---|---|---|
| 57 | W | LIGHT FR FOG LAMPS RH |
| 58 | L | LIGHT DTRL RH SIGNAL |
| 59 | W | LIGHT HBEAM LH |
| 60 | G | LED DETECTION 1 |
| 61 | L | LIGHT PARKING FR RH (WITH HALOGEN HEADLAMPS) |
| 61 | L | LIGHT PARKING FR RH POWER (WITH LED HEADLAMPS) |
| 62 | P | LIGHT LBEAM RH |
| 63 | - | - |
| 64 | - | - |
