IPDM E/R (Intelligent Power Distribution Module Engine Room) Connector End View (F97)

Connector Types:  YLA06FGY

Connector Color:  GRAY

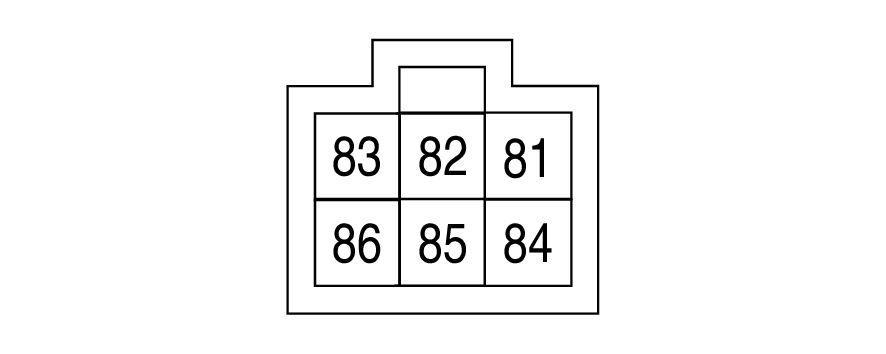

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

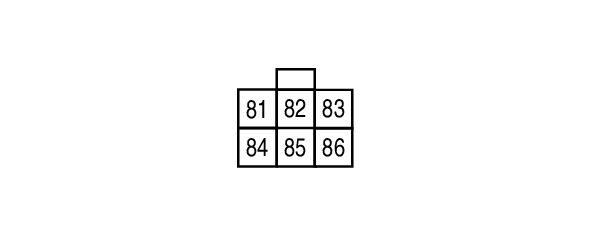

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
81	Y	FL ECM USM SUPPLY
82	-	-
83	R	STARTER
84	-	-
85	-	-
86	L	FL STARTER
