Physical Values

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

Signal name

Input/Output

+

-

1

(G)

Ground

Battery power supply

Input

Ignition switch OFF

Battery voltage

2

(R)

Ground

Battery power supply

Input

Ignition switch OFF

Battery voltage

4

(R)

Ground

Tail lamp LH power supply

Output

Lighting switch OFF

0 V

Lighting switch 1ST

Battery voltage

9

(R)

Ground

Horn relay control

Input

Horn switch OFF

Battery voltage

Horn switch ON

0 V

11

(BG)

Ground

Ignition power supply

Output

Ignition switch OFF

0 V

Ignition switch ON

Battery voltage

12

(B)

Ground

Ground

--

Ignition switch ON

0 V

16

(G)

Ground

Back-up lamp power supply

Output

Ignition switch ON

Selector lever in any position other than R

0 V

Selector lever in R position

Battery voltage

17

(R)

Ground

Tail lamp RH power supply

Output

Lighting switch OFF

0 V

Lighting switch 1ST

Battery voltage

19

(L)

Ground

Ignition power supply

Output

Ignition switch ON

0 V

Battery voltage

22

(P)

Ground

CAN-Low

Input/Output

--

--

24

(L)

Ground

CAN-High

Input/Output

--

--

31

(B)

Ground

Ground

--

Ignition switch ON

0 V

33

(BR)

Ground

Front wiper stop position

Input

Ignition switch ON

Front wiper stop position

0 V

Other than above

Battery voltage

39 ¹

(L)

Ground

CAN-High (TCM)

--

--

--

40 ¹

(P)

Ground

CAN-Low (TCM)

--

--

--

45

(L)

Ground

Front wiper motor HI power supply

Output

Ignition switch ON

Front wiper switch OFF

0 V

Front wiper switch HI

Battery voltage

46

(P)

Ground

Fuel pump power supply

Output

More than a few seconds after placing ignition switch ON or ignition switch OFF

0 V

For a few seconds after placing ignition switch ON or engine running

Battery voltage

47

(B)

Ground

Ground

--

Ignition switch ON

0 V

48

(W)

Ground

Front wiper motor LO power supply

Output

Ignition switch ON

Front wiper switch OFF

0 V

Front wiper switch LO

Battery voltage

49 ³

(L)

Ground

Daytime running light LH power supply

Output

Engine stop

Lighting switch OFF

0 V

Engine running

Lighting switch OFF

Battery voltage

Lighting switch 1ST

2.16 V - 3.84 V

50

(BG)

Ground

Headlamp (LO) LH power supply

Output

Lighting switch OFF

0 V

Lighting switch 2ND

Battery voltage

51 ⁴

(R)

Ground

Front fog lamp LH power supply

Output

Lighting switch 1ST

Front fog lamp switch OFF

0 V

Front fog lamp switch ON

Battery voltage

52 ⁵

(SB)

Ground

Hood switch

Input

Close the hood

0 V

Open the hood

Battery voltage

52 ⁶

(B)

Ground

Ground

--

Ignition switch ON

0 V

53 ⁷

(G)

Ground

LED headlamp fail signal LH

Input

Lighting switch OFF

Battery voltage

Lighting switch 2ND

0 V

54

(Y)

Ground

Headlamp (HI) RH power supply

Output

Lighting switch 2ND

Lighting switch LO

0 V

Lighting switch HI or PASS

Battery voltage

56

(Y) ⁸

(L) ⁷

Ground

Parking lamp LH power supply

Output

Lighting switch OFF

Engine stop

0 V

Engine running

Battery voltage

Lighting switch 1ST

57 ⁴

(W)

Ground

Front fog lamp RH power supply

Output

Lighting switch 1ST

Front fog lamp switch OFF

0 V

Front fog lamp switch ON

Battery voltage

58 ³

(L)

Ground

Daytime running light RH power supply

Output

Engine stop

Lighting switch OFF

0 V

Engine running

Lighting switch OFF

Battery voltage

Lighting switch 1ST

2.16 - 3.84 V

59

(W)

Ground

Headlamp (HI) LH power supply

Output

Lighting switch 2ND

Lighting switch LO

0 V

Lighting switch HI or PASS

Battery voltage

60 ⁷

(G)

Ground

LED headlamp fail signal RH

Input

Lighting switch OFF

Battery voltage

Lighting switch 2ND

0 V

61

(L)

Ground

Parking lamp RH power supply

Output

Lighting switch OFF

Engine stop

0 V

Engine running

Battery voltage

Lighting switch 1ST

62

(P)

Ground

Headlamp (LO) RH power supply

Output

Lighting switch OFF

0 V

Lighting switch 2ND

Battery voltage

65

(P)

Ground

A/C compressor power supply

Output

Engine running

A/C switch OFF

0 V

A/C switch ON

(A/C compressor is operating)

Battery voltage

66

(W)

Ground

ECM relay output

Output

Ignition switch OFF (More than a few seconds after placing ignition switch ON)

0 V

For a few seconds after placing ignition switch OFF or ignition switch ON

Battery voltage

67

(Y)

Ground

Throttle control motor relay control

Input

Ignition switch ON -> OFF

Battery voltage

Ignition switch ON

0 V

70

(BR)

Ground

Ignition power supply

Output

Ignition switch OFF

0 V

Ignition switch ON

Battery voltage

71

(SB)

Ground

Ignition power supply

Output

Ignition switch OFF

0 V

Ignition switch ON

Battery voltage

72

(R)

Ground

Throttle control motor relay power supply

Output

Ignition switch OFF (More than a few seconds after placing ignition switch ON)

0 V

For a few seconds after placing ignition switch OFF or ignition switch ON

Battery voltage

73

(G)

Ground

ECM relay output

Output

Ignition switch OFF (More than a few seconds after placing ignition switch ON)

0 V

For a few seconds after placing ignition switch OFF or ignition switch ON

Battery voltage

75

(V)

Ground

ECM relay output

Output

Ignition switch OFF (More than a few seconds after placing ignition switch ON)

0 V

For a few seconds after placing ignition switch OFF or ignition switch ON

Battery voltage

76

(GR)

Ground

Fuel pump relay control

Input

Approximately 1 second after placing the ignition switch ON or ignition switch OFF

0 V

Approximately 1 second or more placing the ignition switch ON

Battery voltage

78

(W)

Ground

ECM relay output

Output

Ignition switch OFF (More than a few seconds after placing ignition switch ON)

0 V

For a few seconds after placing ignition switch OFF or ignition switch ON

Battery voltage

79

(G)

Ground

Reverse input

Input

Ignition switch ON

• Selector lever in any position other than R (CVT models)
• Shift lever in any position other than reverse (M/T models)

0 V

• Selector lever in R position (CVT models)
• Shift lever in reverse position (M/T models)

Battery voltage

81

(Y)

Ground

Battery power supply

Input

Ignition switch OFF

Battery voltage

83

(R)

Ground

Starter relay output

Output

Other than at engine cranking

0 V

At engine cranking

Battery voltage

86

(L)

Ground

Starter cut relay output

Input

Other than at engine cranking

0 V

At engine cranking

Battery voltage

87 ¹

(L)

Ground

CAN-High (TCM)

--

--

--

88 ¹

(P)

Ground

CAN-Low (TCM)

--

--

--

93

(W)

Ground

ECM relay control

Input

Ignition switch OFF (More than a few seconds after placing ignition switch ON)

Battery voltage

For a few seconds after placing ignition switch OFF or ignition switch ON

0 V

94 ²

(BR)

Ground

Park/neutral position (PNP) switch input

Input

Ignition switch ON

Shift lever in any position other than neutral

0 V

Shift lever in neutral position

Battery voltage

95

(GR)

Ground

Battery current sensor power supply

Output

Ignition switch ON

4 - 6 V

96

(R)

Ground

Battery current sensor ground

Input

Ignition switch ON

0 V

97

(G)

Ground

Battery current sensor

Input

Engine running

• Battery: Full charge
• Engine: Idling

2.5 V

98

(Y)

Ground

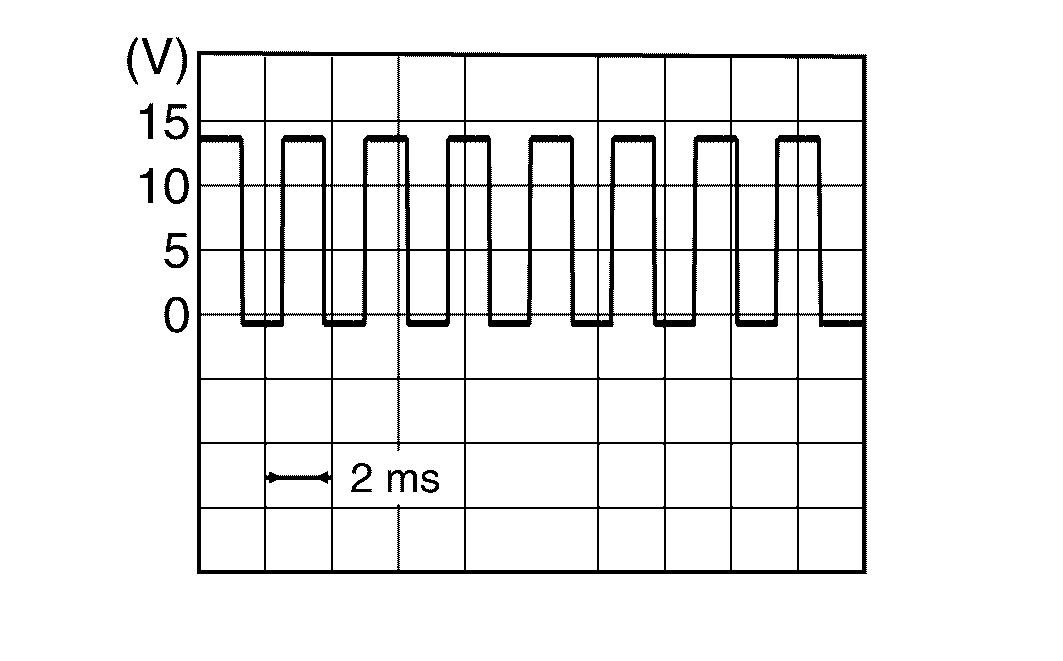

ECV control

Output

ECV

Duty ratio: 0% (MODE5 or MODE6)

0 V

Duty ratio: 50% (MODE3 or MODE4)

Duty ratio: 100% (MODE1, MODE2 or MODE7)

Battery voltage

106

(LG)

Ground

Cooling fan control

Output

Engine running

Cooling fan stop

Battery voltage

• Cooling fan LO operated
• Cooling fan HI operated

0 V

107

(GR)

Ground

Cooling fan control

Output

Engine running

• Cooling fan stop
• Cooling fan LO operated

Battery voltage

Cooling fan HI operated

0 V

110

(P)

Ground

Battery temperature sensor

Input

Engine running

• Battery temperature: 25 deg. C
• Engine: Idling

2.1 V
