Exploded View

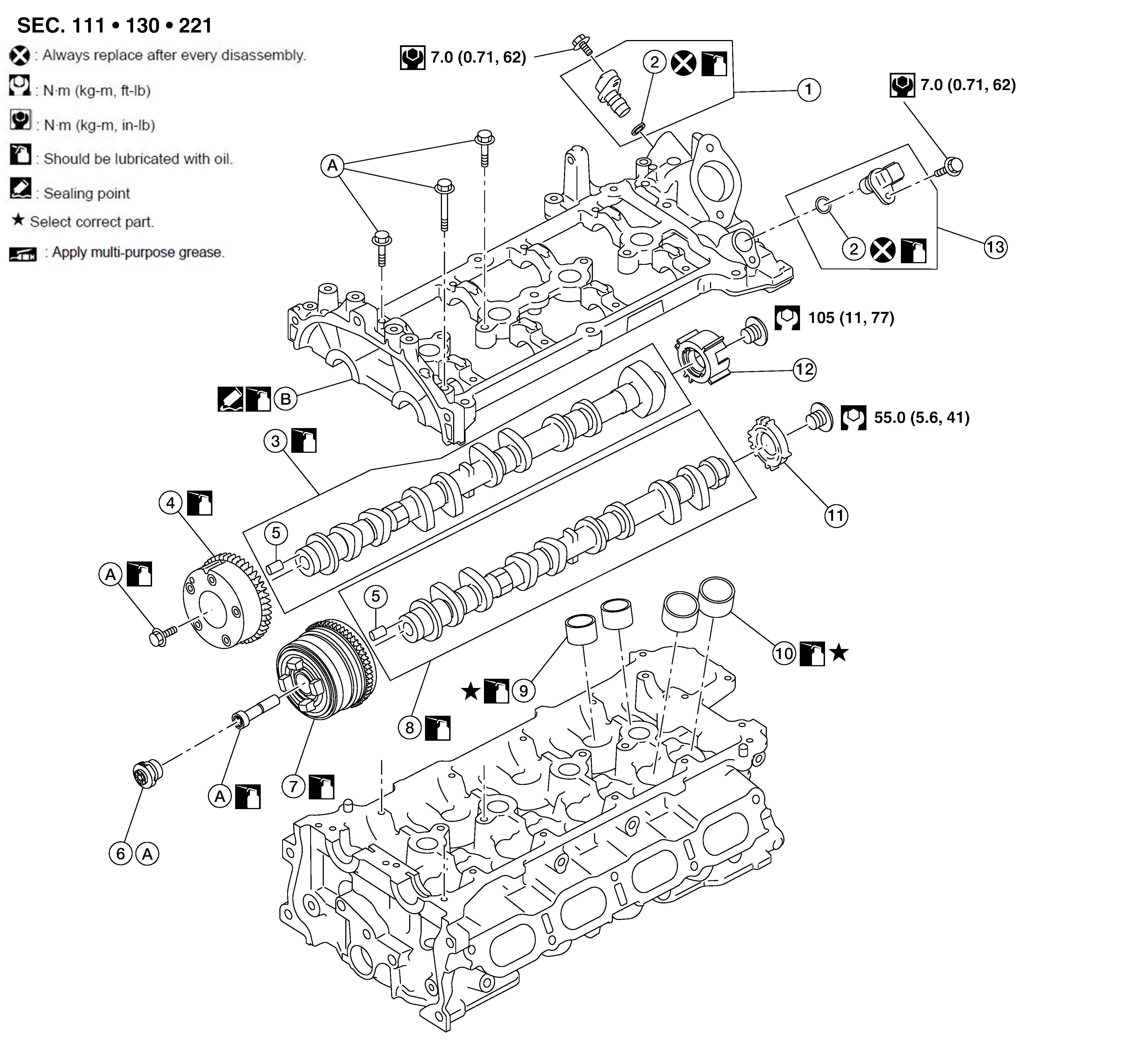

Fig 1: Camshaft Components With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Exhaust camshaft position sensor (PHASE)	2.	O-ring	3.	Camshaft (EXH)
4.	Camshaft sprocket (EXH)	5.	Dowel	6.	Electric valve timing control actuator target
7.	Camshaft sprocket (INT)	8.	Camshaft (INT)	9.	Valve lifter (EXH)
10.	Valve lifter (INT)	11.	Signal plate (INT)	12.	Signal plate (EXH)
13.	Intake camshaft position sensor (PHASE)	A.	Refer to Removal and Installation .	B.	Camshaft bracket

CAUTION: Camshaft bracket cannot be replaced as a single part because it is machined together with the cylinder head.

: Identify the installation position when removing and store them without mixing them up.
