Removal and Installation: Removal

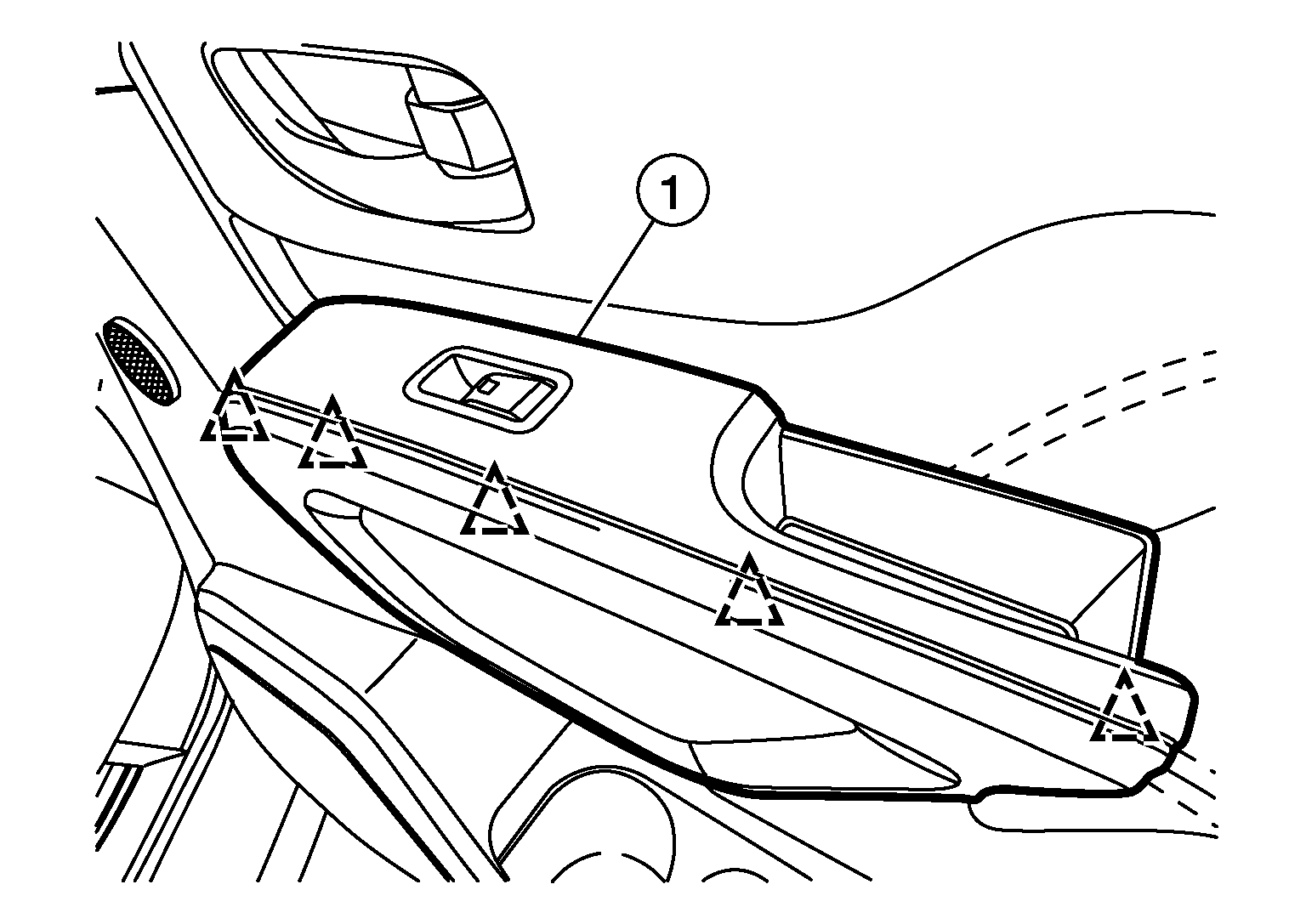

  1. Remove the rear power window switch finisher and rear power window switch (1) using suitable tool.
    GNSALKIA4347Z-347Courtesy of NISSAN NORTH AMERICA, INC.
    NOTE: RH shown, LH similar.

    SYMBOL : Clip
  2. Disconnect the harness connector from the rear power window switch.

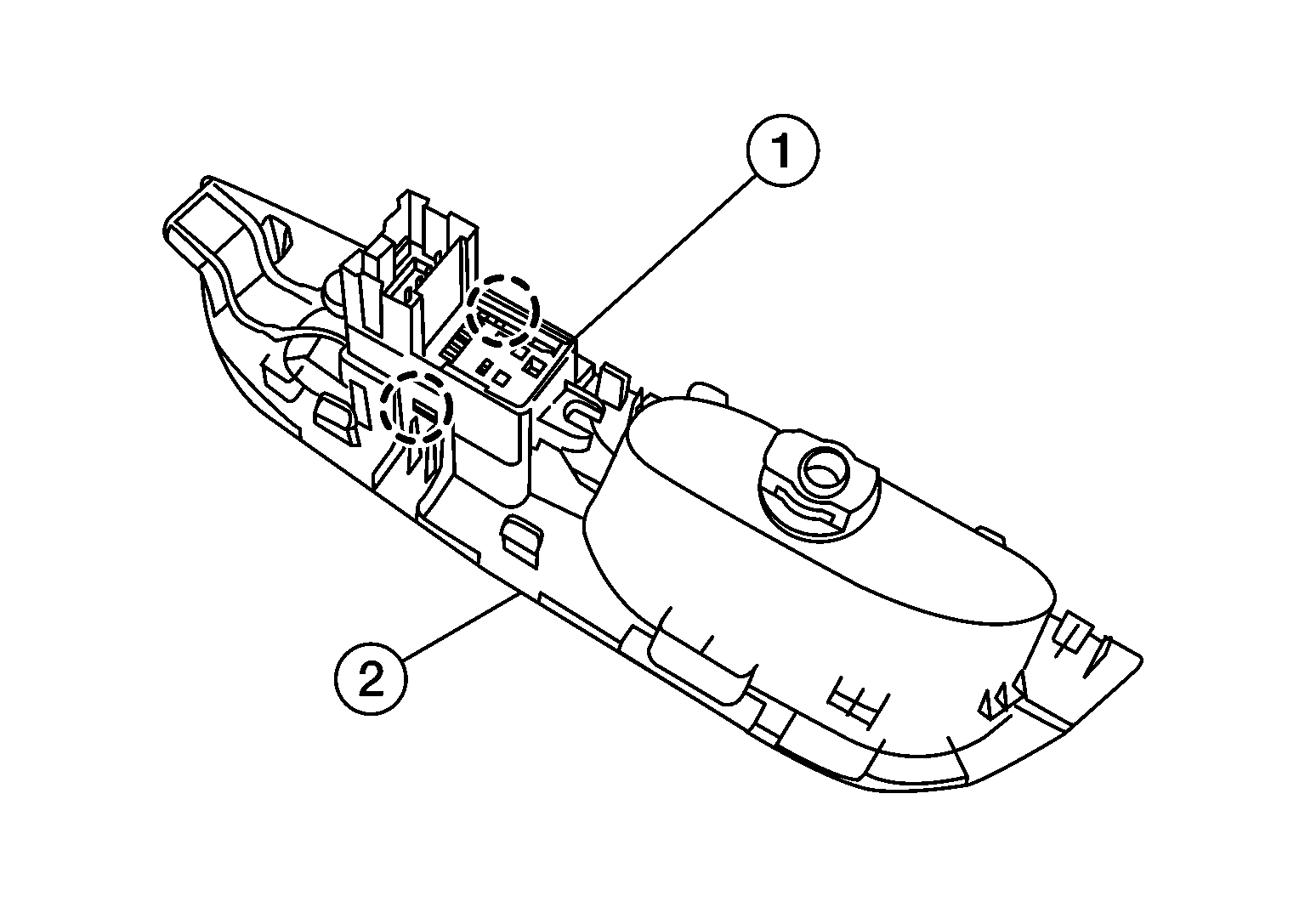

  3. Using a suitable tool, release the pawls and remove the rear power window switch (1) from the rear power window switch finisher (2).
    GNSALKIA3475Z-475Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL : Pawl
