VVEL Control Shaft Position Sensor

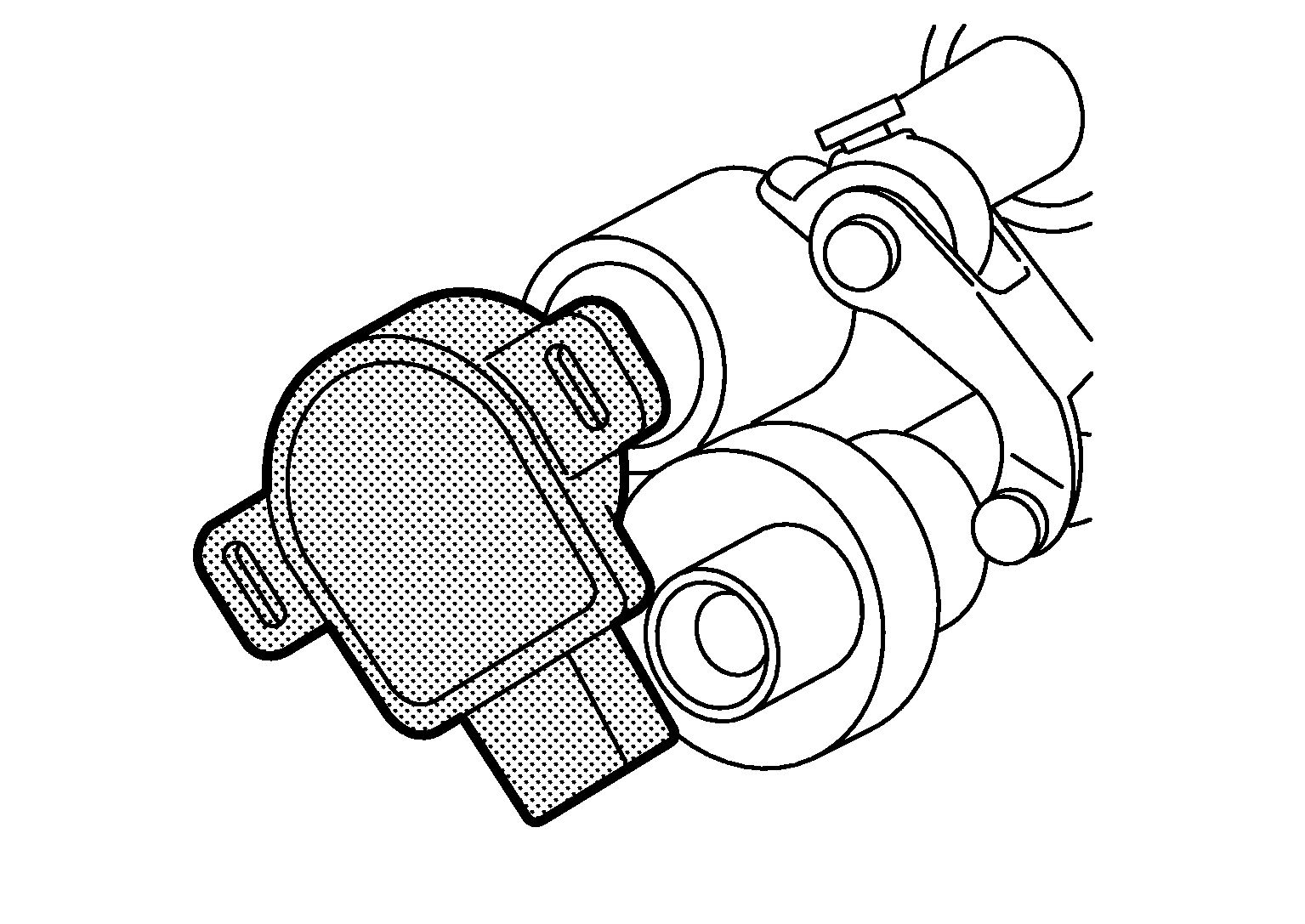

VVEL control shaft position sensor detects the control shaft position angle.

Courtesy of NISSAN NORTH AMERICA, INC.

A magnet is installed to the tip of the control shaft.

The magnetic field changes as the control shaft rotates. This changes output voltage of the VVEL control shaft position sensor.

VVEL control module detects the actual position angle through the voltage change and sends the signal to ECM.
