Exploded View

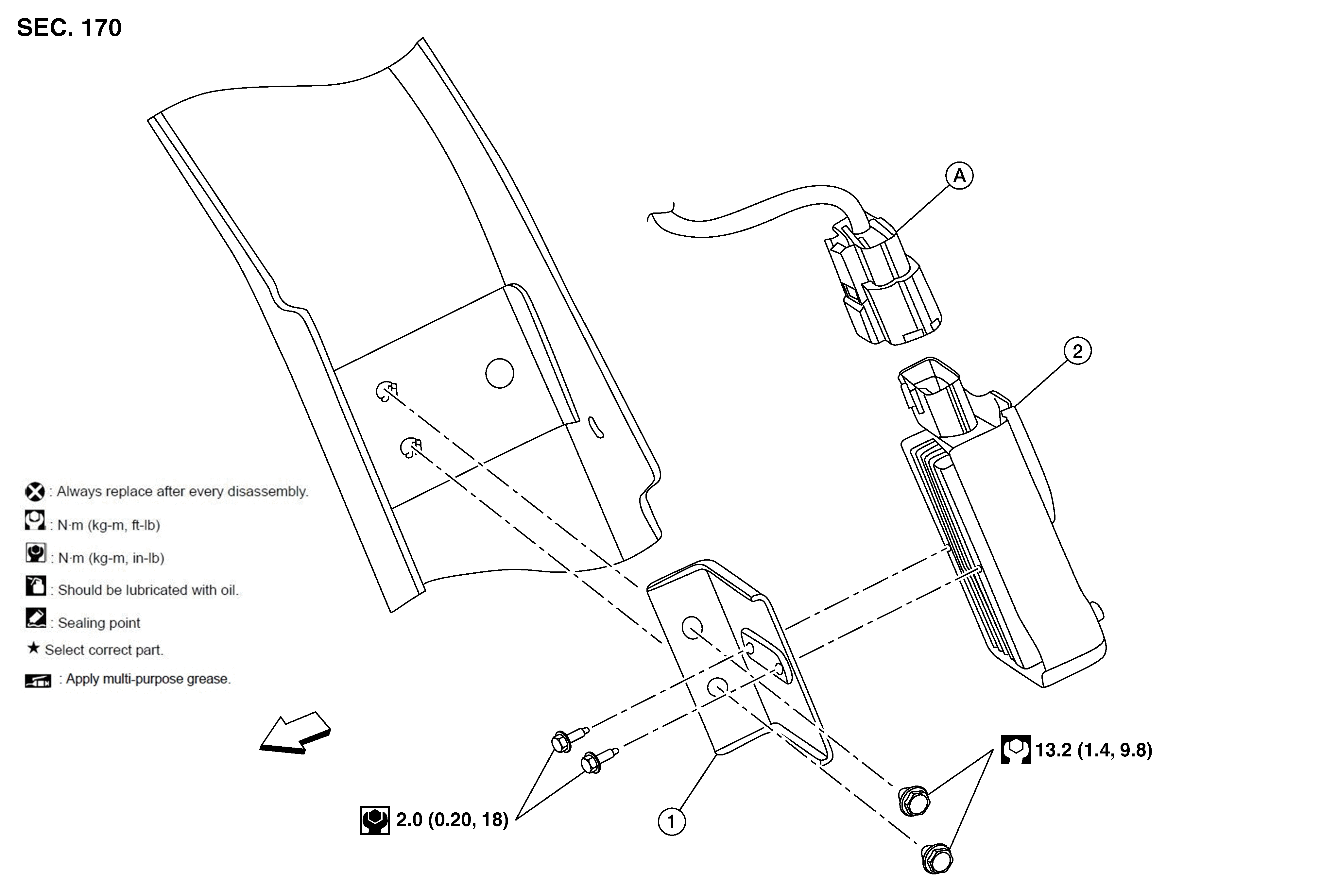

Fig 1: Fuel Pump Control Module (FPCM) Components With Torque Specifications
GNSALBIA3275Z-275SYMBOLCourtesy of NISSAN NORTH AMERICA, INC.

1.

Fuel pump control module bracket

2.

Fuel pump control module

A.

Harness connector

SYMBOL

Front
