Exploded View

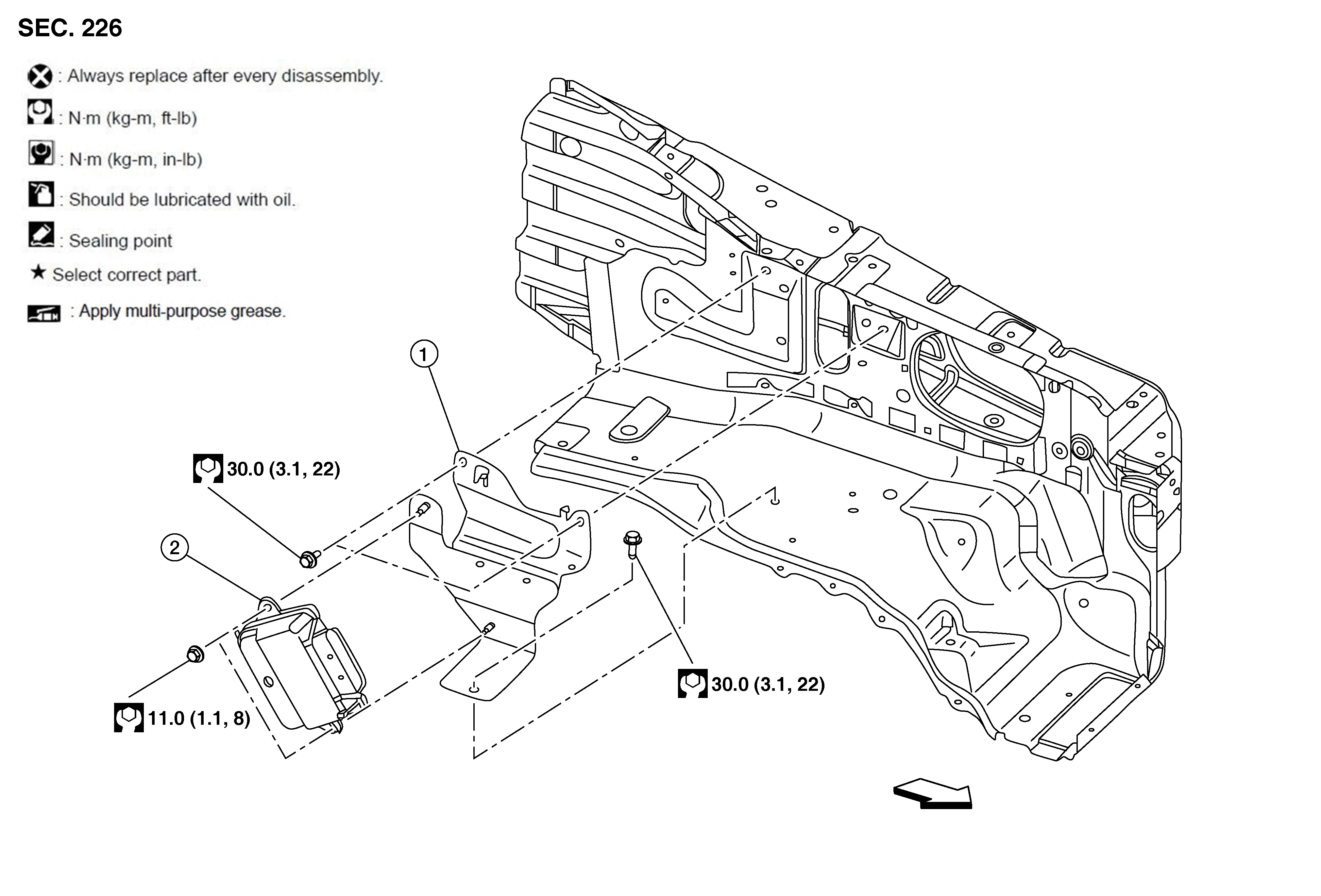

Fig 1: VVEL Control Module Components With Torque Specifications
GNSAWBIA0230Z-230Courtesy of NISSAN NORTH AMERICA, INC.

1.

VVEL control module bracket

2.

VVEL control module

SYMBOL

Front
