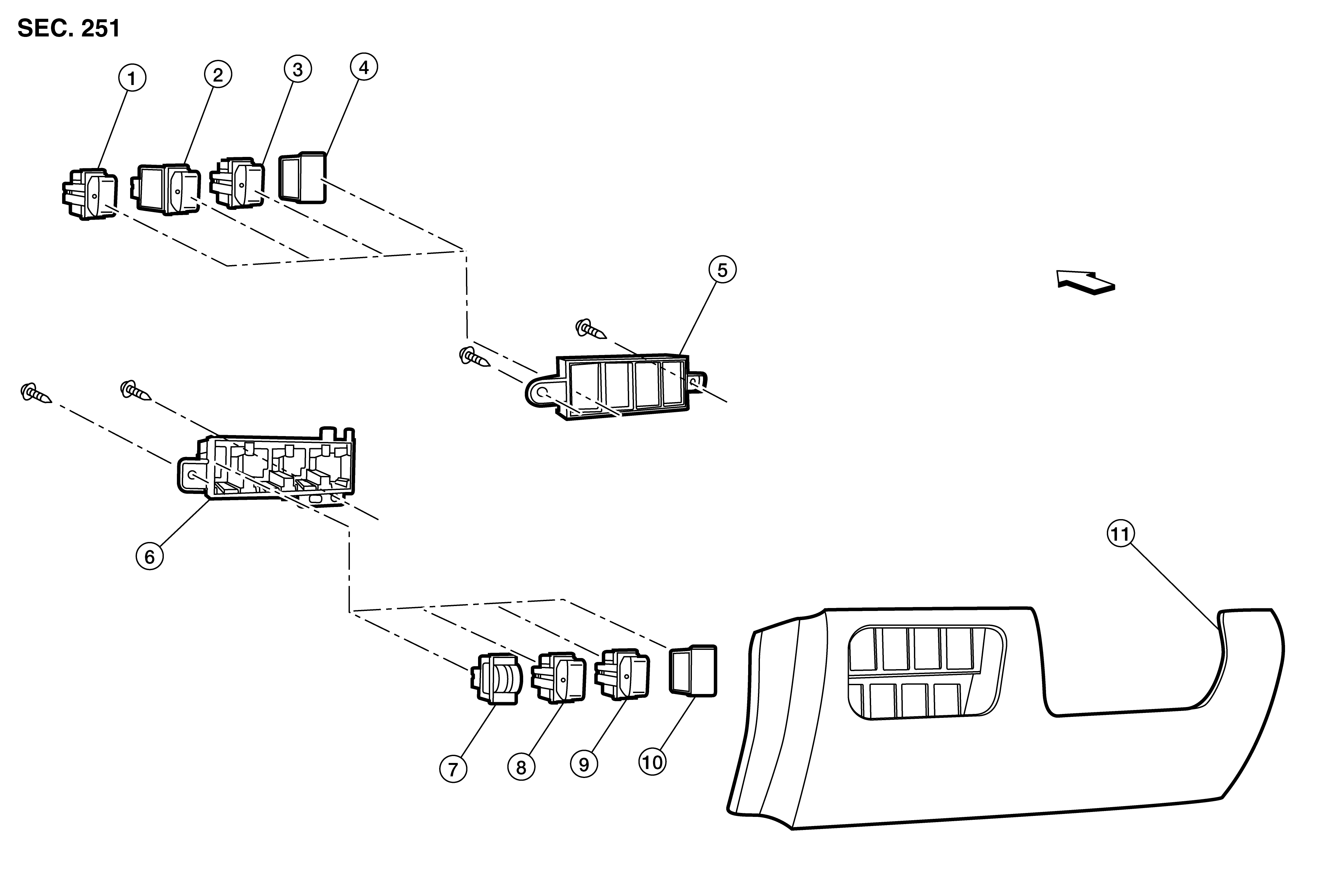

Exploded View

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Front fog lamp switch (if equipped)	2.	AC 120 V outlet main switch (if equipped)	3.	Cargo lamp switch
4.	Mask	5.	Upper switch carrier	6.	Lower switch carrier
7.	Headlamp aiming switch (if equipped)	8.	Differential lock mode switch (if equipped)	9.	Hill descent control switch
10.	Mask	11.	Instrument lower panel LH		Front
