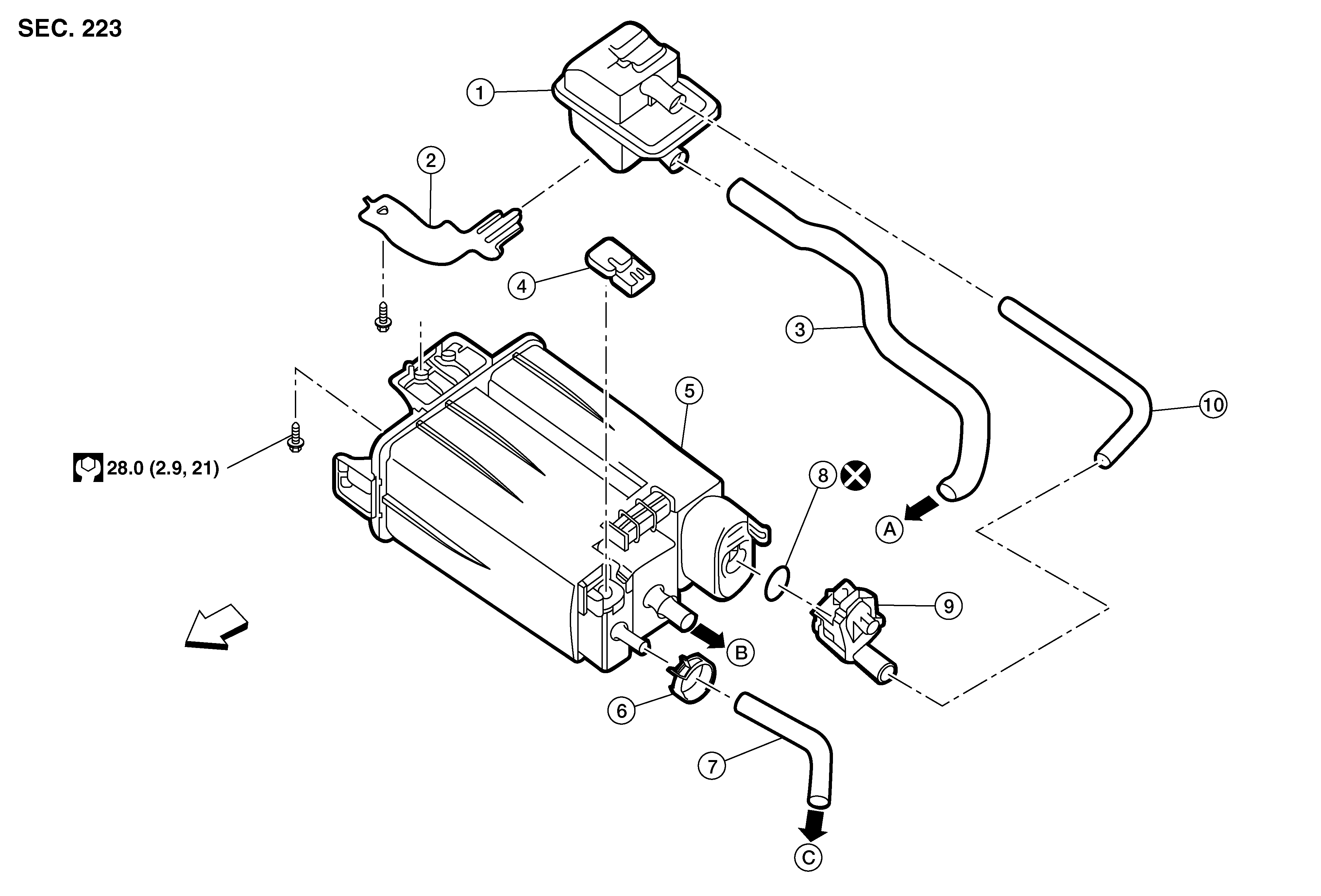

XD Models
|
1. |
EVAP canister filter |
2. |
EVAP filter bracket |
3. |
EVAP canister filter vent hose |
|
4. |
EVAP control system pressure sensor (with O-ring) |
5. |
EVAP canister |
6. |
Clamp |
|
7. |
EVAP canister purge hose |
8. |
O-ring |
9. |
EVAP canister vent control valve |
|
10. |
EVAP canister vent control valve hose |
A. |
To vehicle body |
B. |
To fuel tank. Refer to Exploded View . |
|
C. |
To EVAP tube. Refer to Exploded View . |
|
Front |
||
