Knee Air Bag Module

The knee air bag modules are single stage and located in the instrument panel assembly below the steering wheel and below the glove box assembly. It operates with the SRS system in a frontal collision exceeding a specified level. Refer to System Description  for more information.

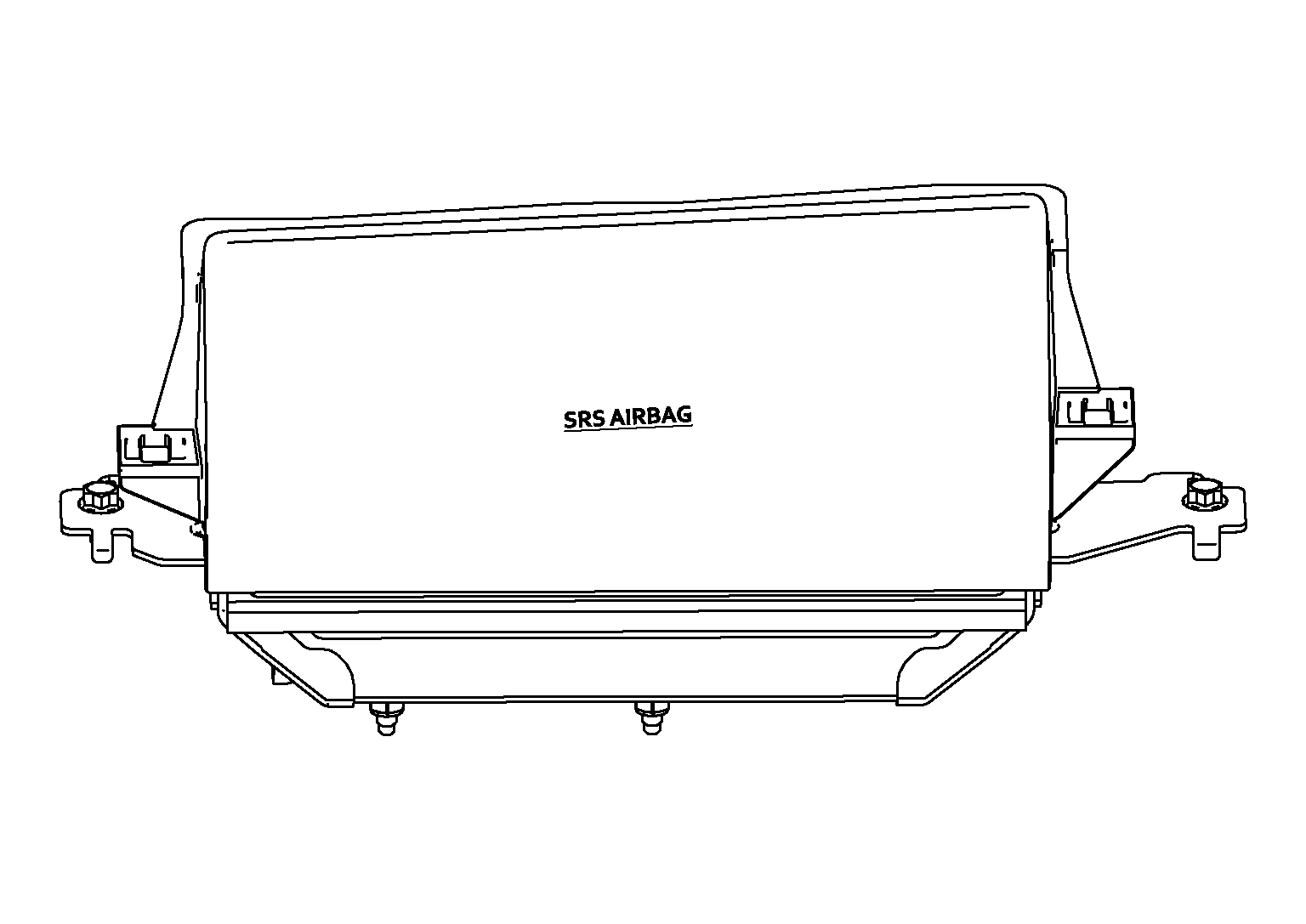

Fig 1: Left Knee Air Bag Module

Courtesy of NISSAN NORTH AMERICA, INC.

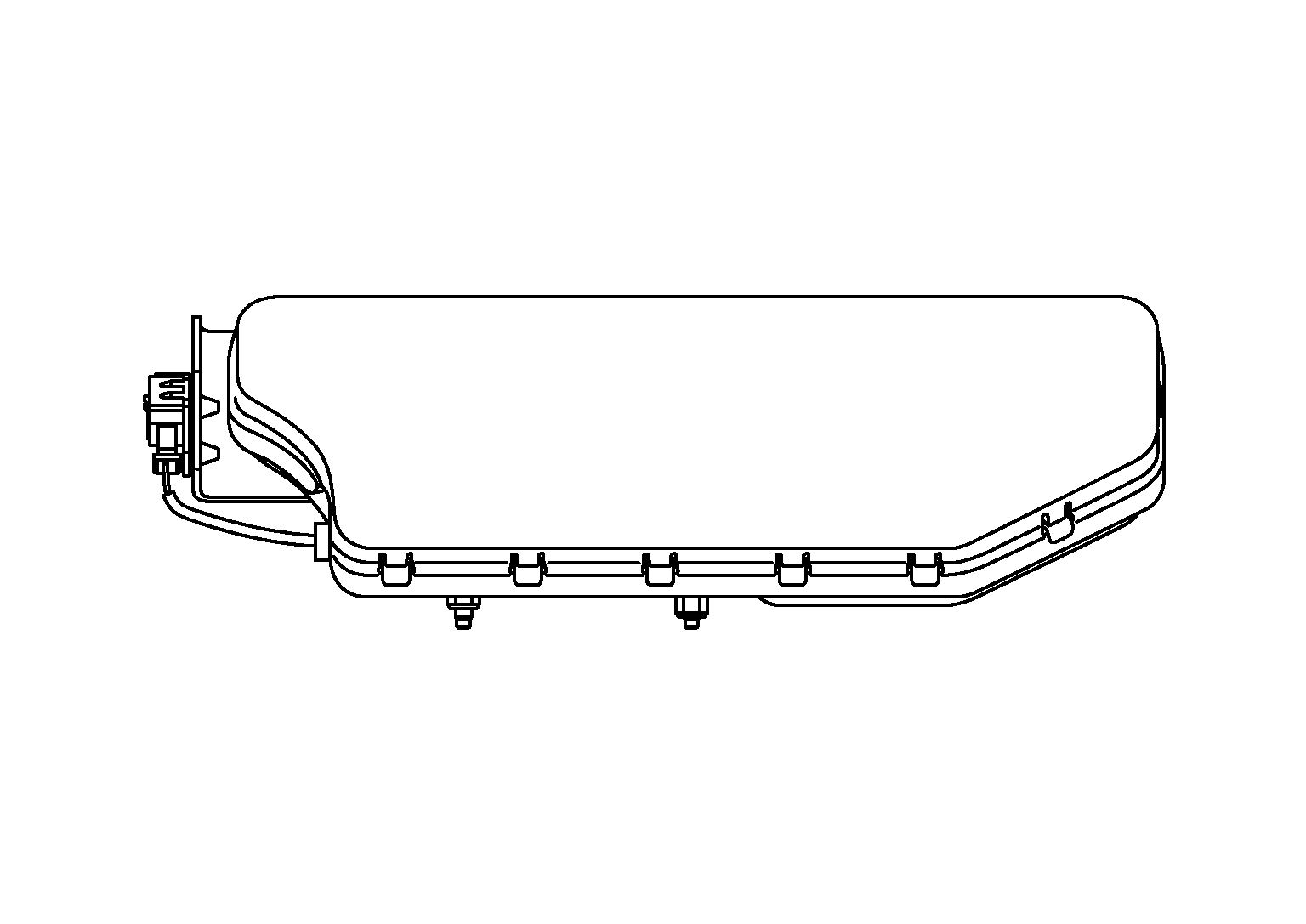

Fig 2: Right Knee Air Bag Module

Courtesy of NISSAN NORTH AMERICA, INC.
