Exploded View

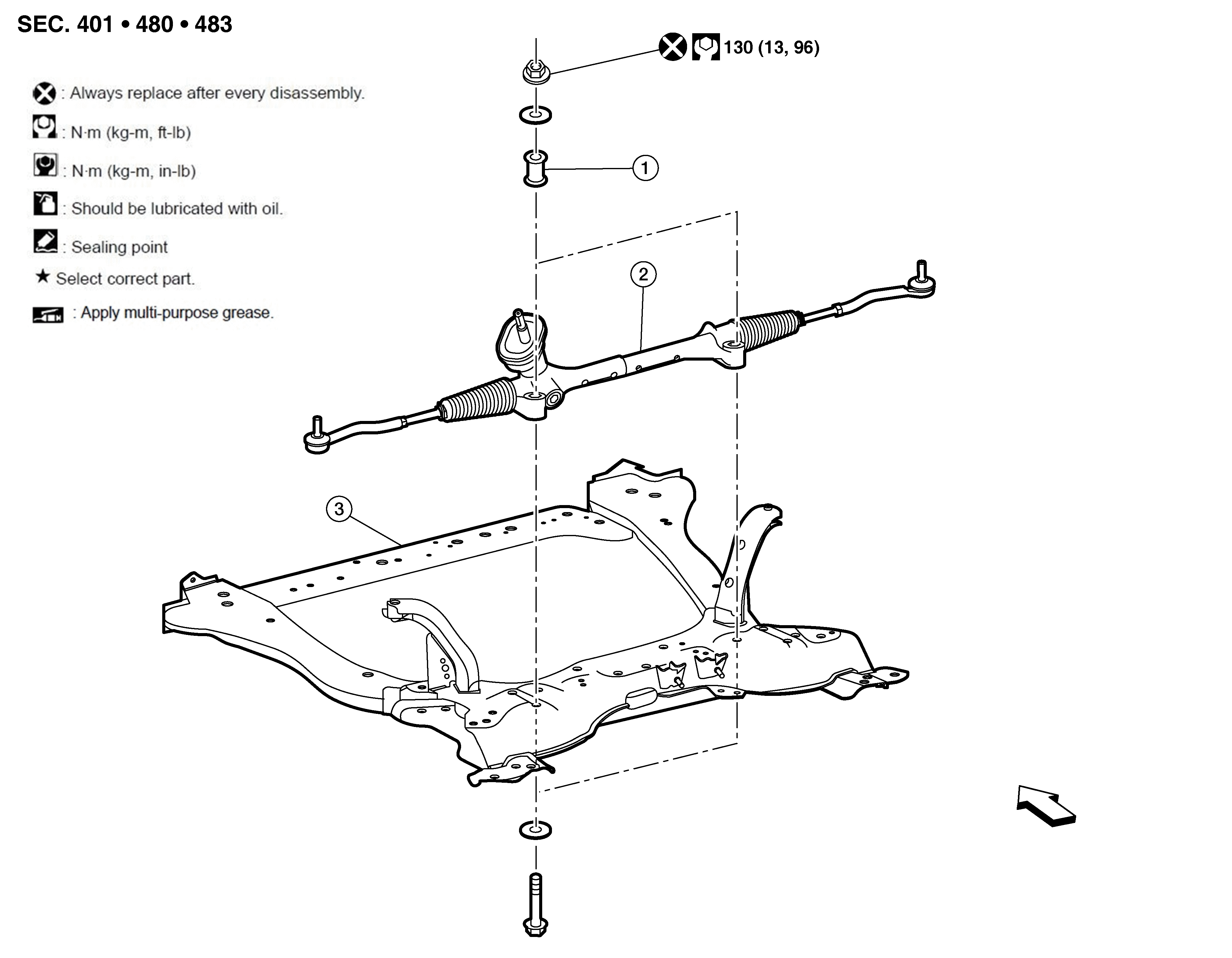

Fig 1: Steering Gear And Linkage With Torque Specifications
GNSALGIA0159Z-159Courtesy of NISSAN NORTH AMERICA, INC.

1.

Insulator

2.

Steering gear and linkage assembly

3.

Front suspension member

SYMBOL

Front
