Component Location

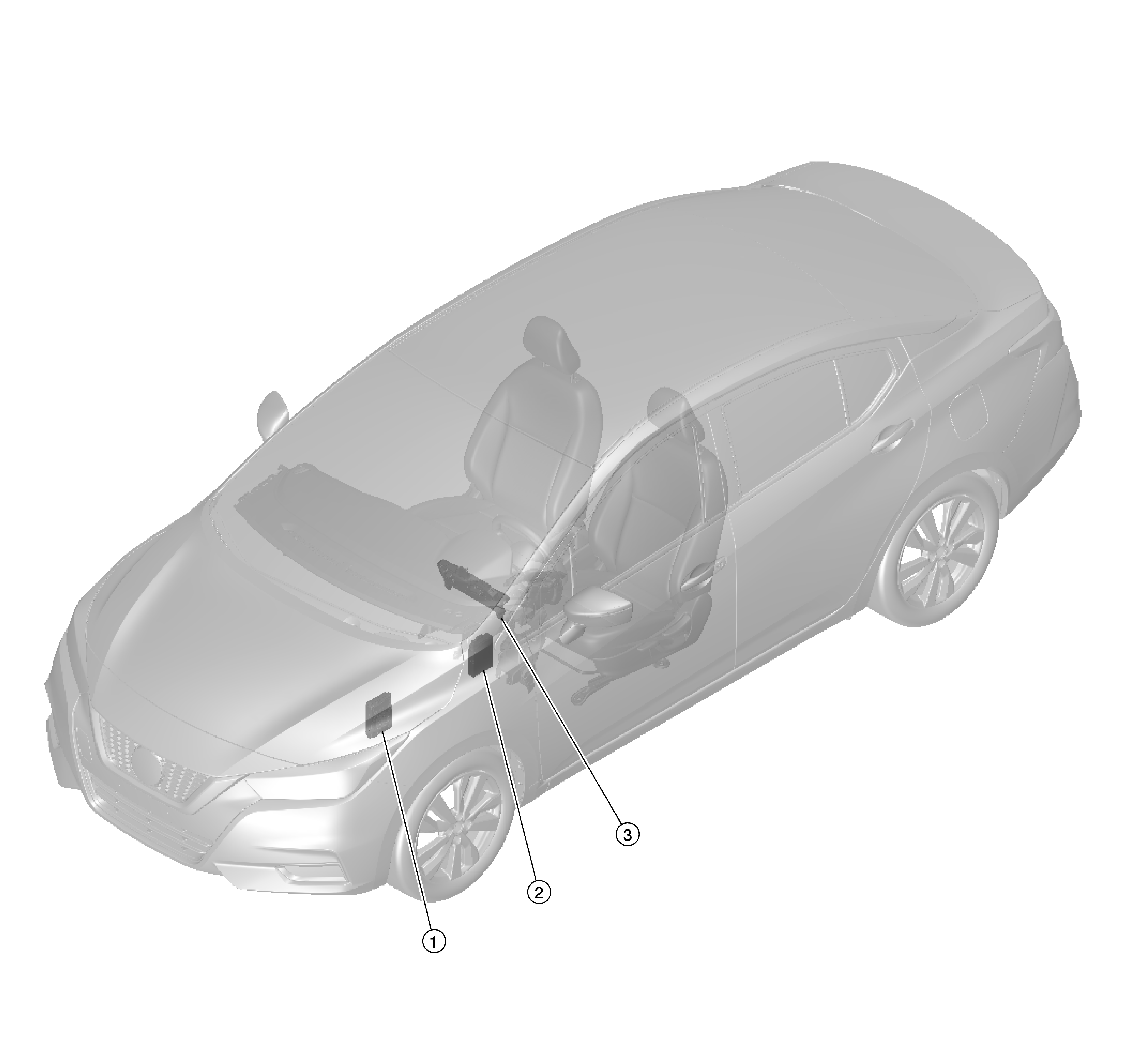

GNSALMIA0267Z-267Courtesy of NISSAN NORTH AMERICA, INC.

No.

Component

Function

1.

IPDM E/R (Intelligent Power Distribution Module Engine Room)

Refer to Component Part Location for detail component location.

2.

BCM (Body Control Module)

Refer to System Description .

3.

Combination meter

Refer to Component Part Location (type A) or Component Part Location (type B) for detail component location.
