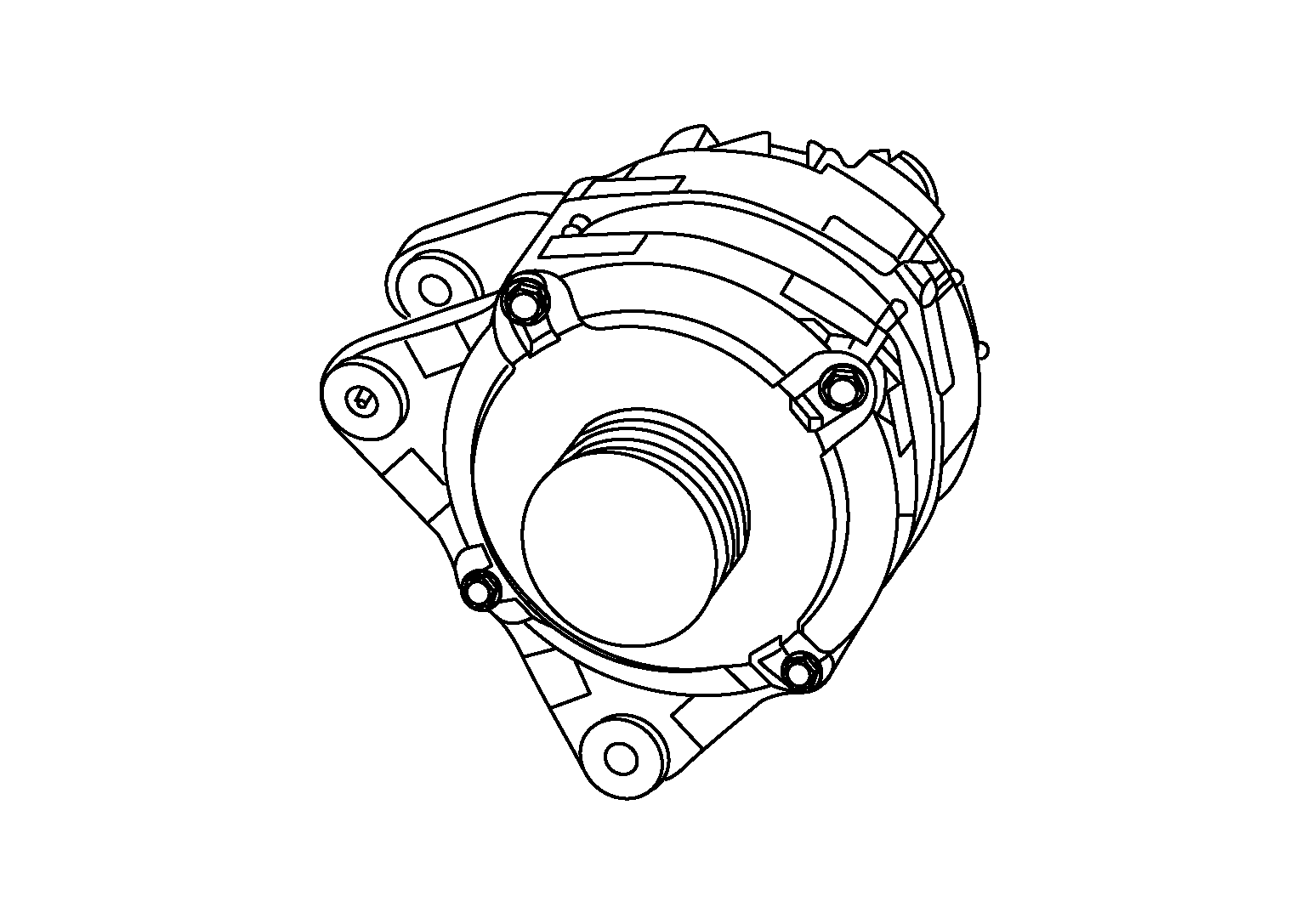

Component Parts: Generator

IC voltage regulator controls the generator voltage based on the received signal.
When there is no command signal, the generator performs the normal power generation according to the characteristic of the IC voltage regulator.

Courtesy of NISSAN NORTH AMERICA, INC.
