Exploded View

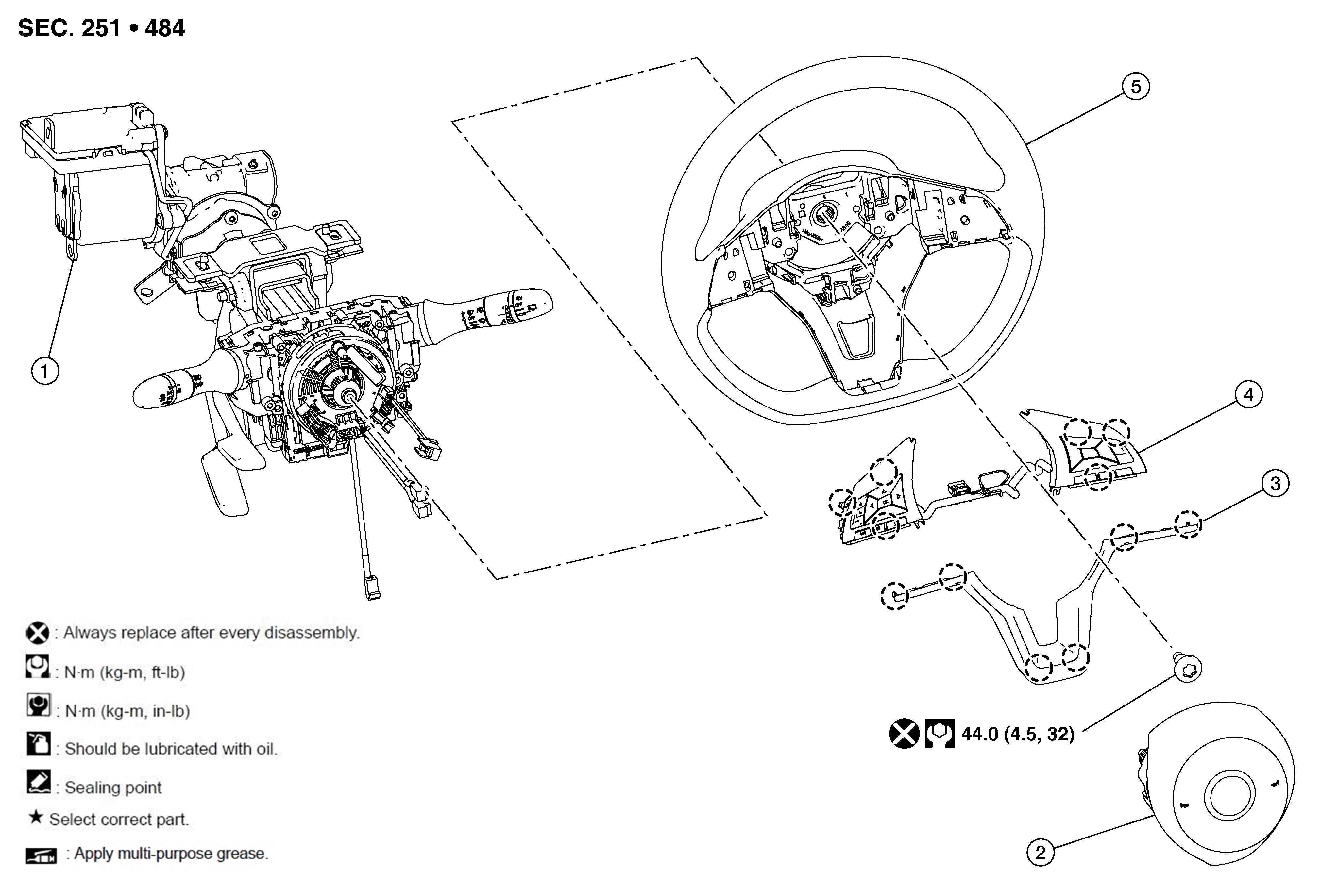

Fig 1: Steering Wheel With Torque Specifications
GNSAWGIA0119Z-119Courtesy of NISSAN NORTH AMERICA, INC.

1.

Steering column assembly

2.

Driver air bag module

3.

Finisher

4.

ASCD/ICC steering switches

5.

Steering wheel

SYMBOL

Pawl
