Exploded View

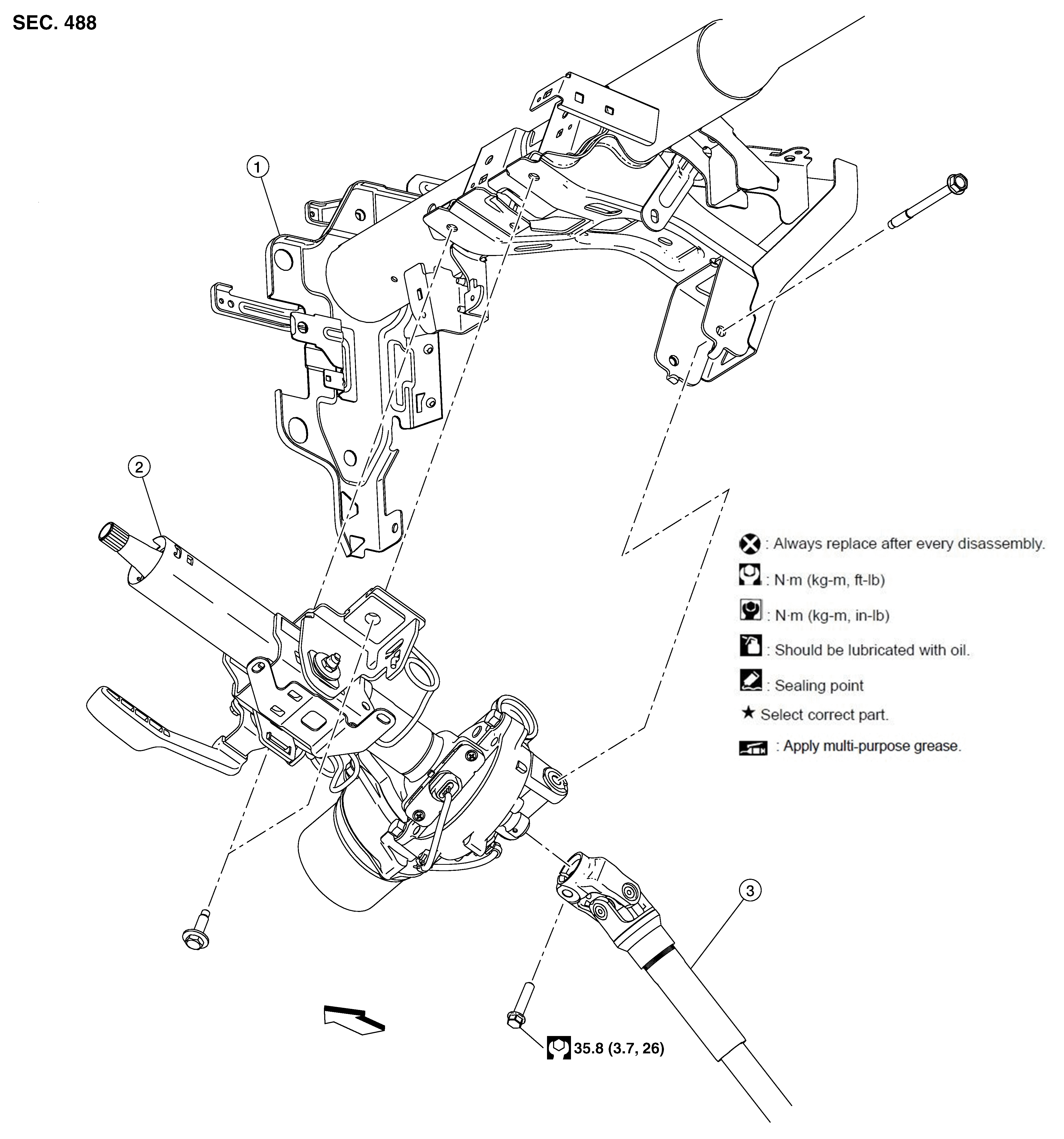

Fig 1: Steering Column With Torque Specifications
GNSAWGIA0120Z-120Courtesy of NISSAN NORTH AMERICA, INC.

1.

Steering member

2.

Steering column

3.

Lower joint

SYMBOL

Front
