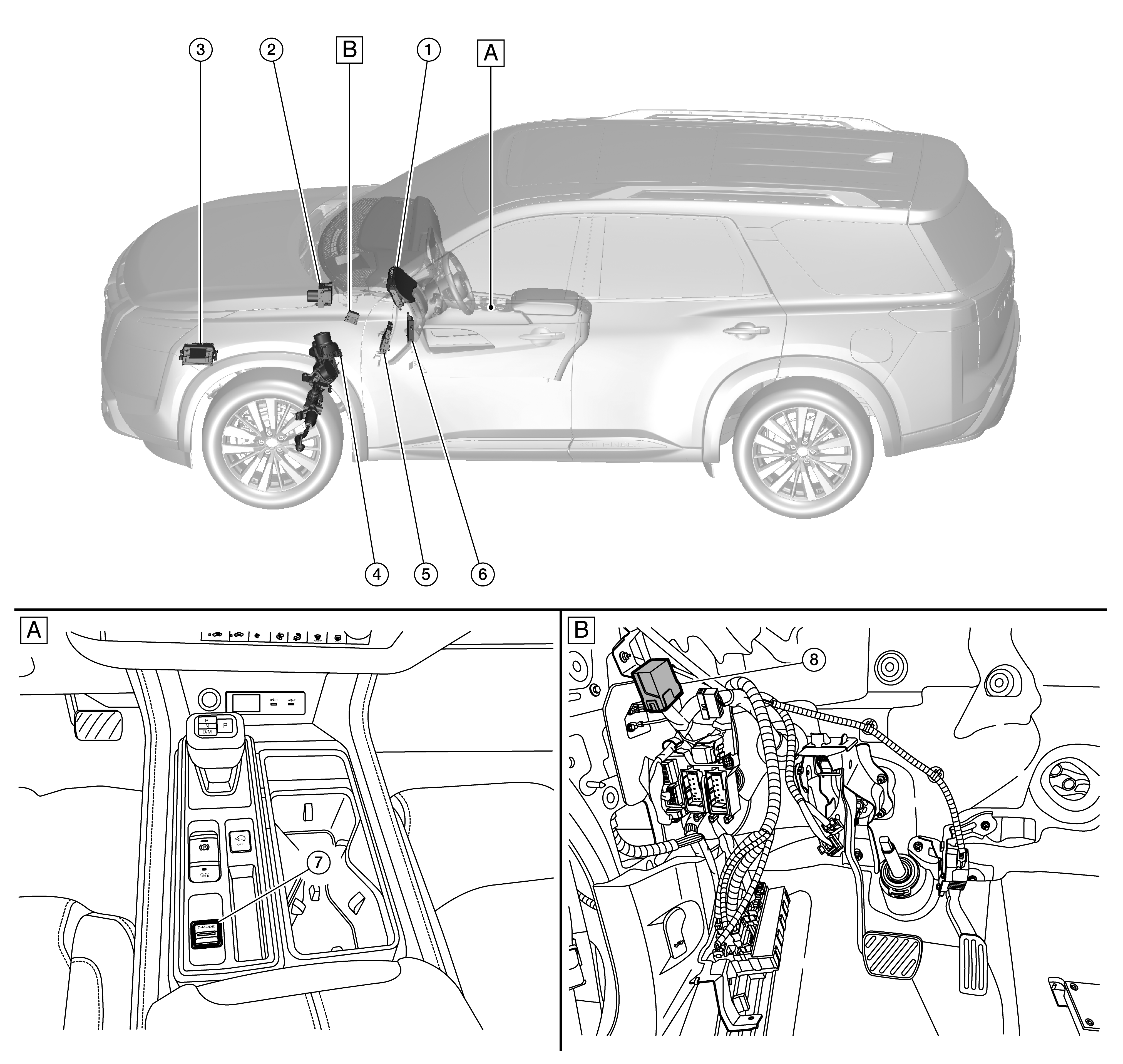

2WD Models
|
|
Center console finisher |
|
Upside of instrument lower panel RH |
|
|
Combination meter Refer to Component Location (full TFT meter), Component Location (7 inch information display) for detailed installation location. |
|
ABS actuator and electric unit (control unit) Refer to Component Location for detailed installation location. |
|
ECM Refer to Component Location for detailed installation location. |
|
|
Power steering control unit Refer to Component Location for detailed installation location. |
|
BCM Refer to Component Location for detailed installation location. |
|
ADAS control unit 2 Refer to Component Location for detailed installation location. |
|
|
Drive mode select switch |
|
Chassis control module |
