2WD Models

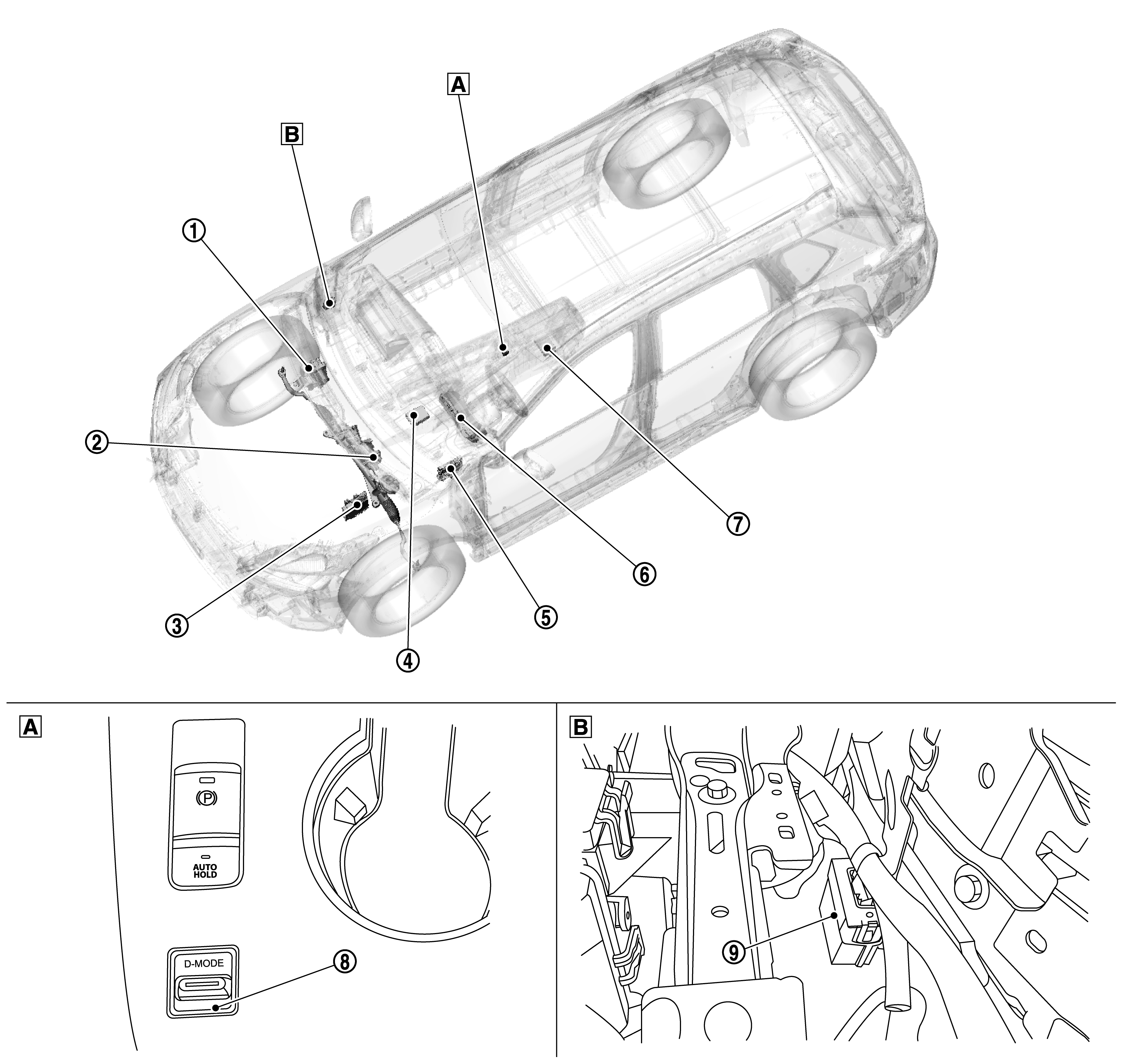

GNSILL0312261Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Center console finisher

SYMBOL

Upside of instrument lower panel RH

SYMBOL

ABS (Anti-lock Braking System) actuator and electric unit (control unit)

Refer to Component Location for detailed installation location.

SYMBOL

Power steering control unit

Refer to Component Location for detailed installation location.

SYMBOL

ECM (Engine Control Module)

Refer to Component Location (KR15DDT engine models) for detailed installation location.

SYMBOL

TCM (Transmission Control Module)

Refer to Component Location (KR15DDT engine models) for detailed installation location.

SYMBOL

BCM (Body Control Module)

Refer to Component Location for detailed installation location.

SYMBOL

Combination meter

Refer to Component Location (full TFT meter), Component Location (7 inch information display) for detailed installation location.

SYMBOL

ADAS (Advanced Driver Assistance System) control unit 2

Refer to Component Location for detailed installation location.

SYMBOL

Drive mode select switch

SYMBOL

Chassis control module

Refer to Component Location for detailed installation location.
