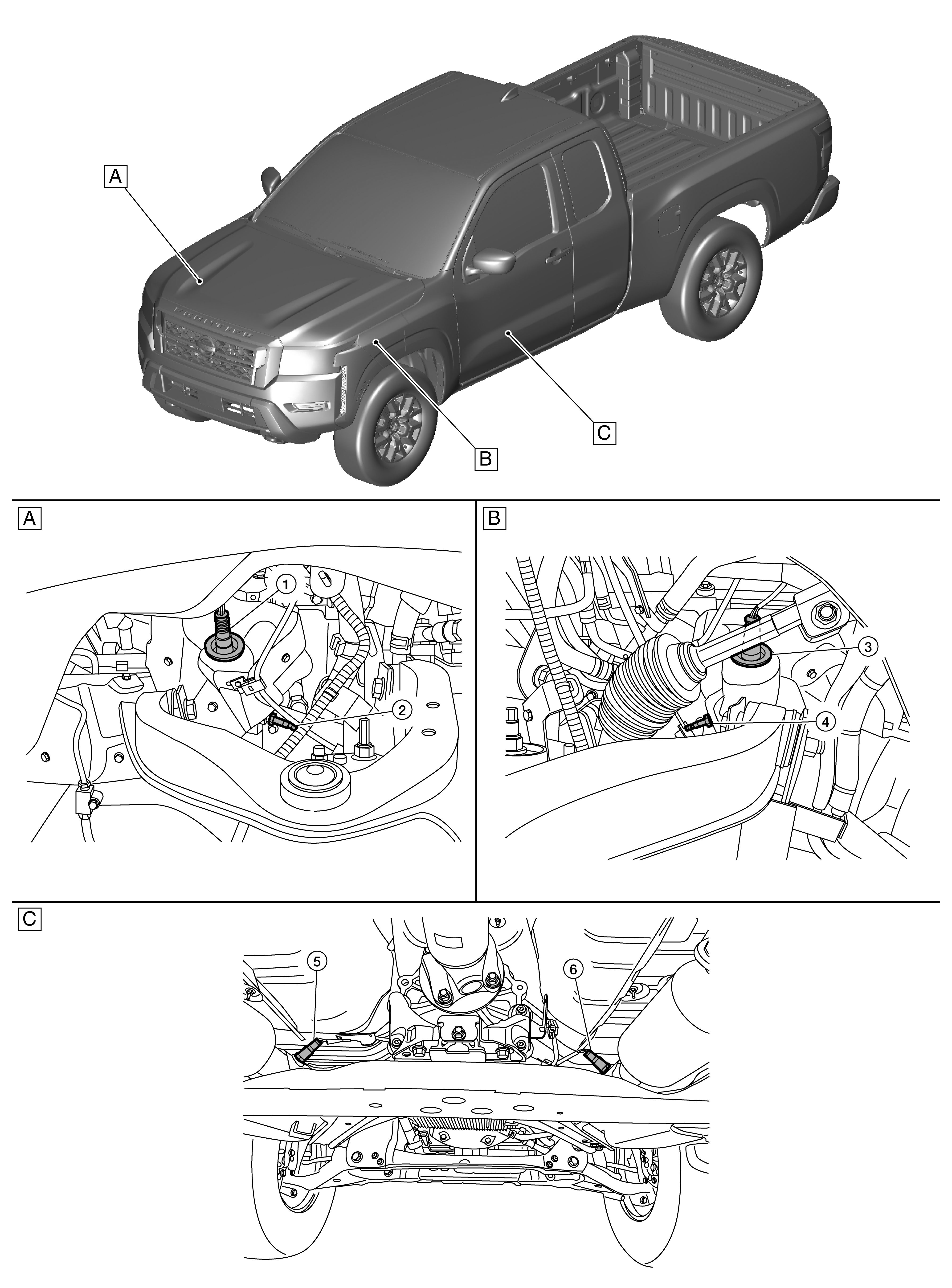

Component Location
Engine Room Component
| Right side of engine compartment | Left front of engine compartment |
| No. | Component | Function |
|---|---|---|
| ECM (with barometric pressure sensor) | ECM (With Barometric Pressure Sensor) | |
| Mass air flow sensor (with intake air temperature sensor) | Mass Air Flow Sensor (With Intake Air Temperature Sensor) | |
| EVAP canister purge volume control solenoid valve | EVAP Canister Purge Volume Control Solenoid Valve | |
| Engine restart bypass relay | Engine Restart Bypass Control Relay and Engine Restart Bypass Relay | |
| IPDM E/R | IPDM E/R controls the internal relays and the actuators. When CAN communication with ECM is impossible, IPDM E/R performs fail-safe control. | |
| Electric intake valve timing control module | Electric Intake Valve Timing Control Module | |
| Battery current sensor (with battery temperature sensor) | Battery Current Sensor (With Battery Temperature Sensor) | |
| Power steering pressure sensor | Power Steering Pressure Sensor | |
| Electric throttle control actuator | Electric Throttle Control Actuator | |
| Refrigerant pressure sensor | Refrigerant Pressure Sensor | |
| Relay box | Component Location | |
| Crankshaft position sensor 2 | Crankshaft Position Sensor 2 | |
| Relay box (Brake hold relay and engine restart bypass control relay) | Engine Restart Bypass Control Relay and Engine Restart Bypass Relay |

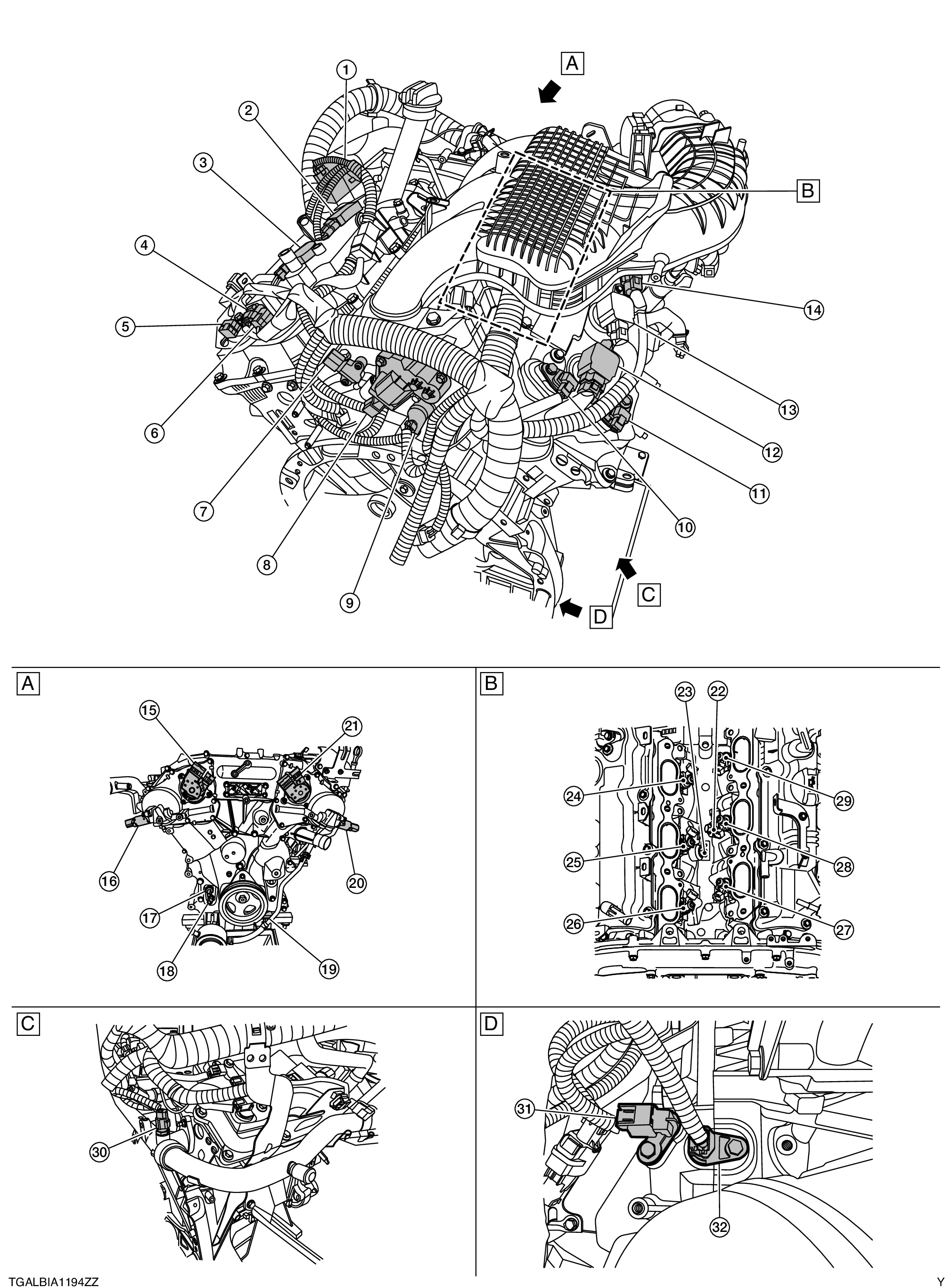

Engine Assembly Component
| Front view of the engine | Top view of the engine | Upper side view of engine |
| Lower side view of engine |
| No. | Component | Function |
|---|---|---|
| High pressure fuel pump | High Pressure Fuel Pump | |
| Ignition coil (with power transistor) and spark plug (No. 2 cylinder) | Ignition Coil and Spark Plug | |
| Ignition coil (with power transistor) and spark plug (No. 4 cylinder) | ||
| Ignition coil (with power transistor) and spark plug (No. 6 cylinder) | ||
| Exhaust camshaft position sensor (bank 2) | Exhaust Camshaft Position Sensor | |
| Intake camshaft position sensor (bank 2) | Intake Camshaft Position Sensor | |
| Intake manifold runner control valve position sensor | Intake Manifold Runner Control Valve | |
| Intake manifold runner control valve motor | Intake Manifold Runner Control Valve | |
| Fuel rail pressure sensor | Fuel Rail Pressure Sensor | |
| Intake camshaft position sensor (bank 1) | Intake Camshaft Position Sensor | |
| Exhaust camshaft position sensor (bank 1) | Exhaust Camshaft Position Sensor | |
| Ignition coil (with power transistor) and spark plug (No. 5 cylinder) | Fuel Injector | |
| Ignition coil (with power transistor) and spark plug (No. 3 cylinder) | ||
| Ignition coil (with power transistor) and spark plug (No. 1 cylinder) | ||
| Electric intake valve timing control actuator (bank 1) | Electric Intake Valve Timing Control Actuator | |
| Exhaust valve timing control solenoid valve (bank 1) | Exhaust Valve Timing Control Solenoid Valve | |
| Engine oil pressure sensor | Engine Oil Pressure Sensor | |
| Engine oil temperature sensor | Exhaust Camshaft Position Sensor | |
| Engine oil pressure control solenoid valve | Engine Oil Pressure Control Solenoid Valve | |
| Exhaust valve timing control solenoid valve (bank 2) | Exhaust Valve Timing Control Solenoid Valve | |
| Electric intake valve timing control actuator (bank 2) | Electric Intake Valve Timing Control Actuator | |
| Knock sensor (bank 2) | Knock Sensor | |
| Knock sensor (bank 1) | ||
| Fuel injector (No. 5 cylinder) | Fuel Injector | |
| Fuel injector (No. 3 cylinder) | ||
| Fuel injector (No. 1 cylinder) | ||
| Fuel injector (No. 2 cylinder) | ||
| Fuel injector (No. 4 cylinder) | ||
| Fuel injector (No. 6 cylinder) | ||
| Engine coolant temperature sensor | Engine Coolant Temperature Sensor | |
| Crankshaft position sensor 2 | Crankshaft Position Sensor 2 | |
| Crankshaft position sensor 1 | Crankshaft Position Sensor 1 |
Exhaust System Component
| Right side of engine | Left side of engine | Undercarriage |
| No. | Component | Function |
|---|---|---|
| Air fuel ratio (A/F) sensor 1 (bank 1) | Air Fuel Ratio (A/F) Sensor 1 | |
| Exhaust gas temperature sensor (bank 1) | Exhaust gas temperature sensor | |
| Air fuel ratio (A/F) sensor 1 (bank 2) | Air Fuel Ratio (A/F) Sensor 1 | |
| Exhaust gas temperature sensor (bank 2) | Exhaust gas temperature sensor | |
| Heated oxygen sensor 2 (bank 2) | Heated Oxygen Sensor 2 | |
| Heated oxygen sensor 2 (bank 1) | Heated Oxygen Sensor 2 |

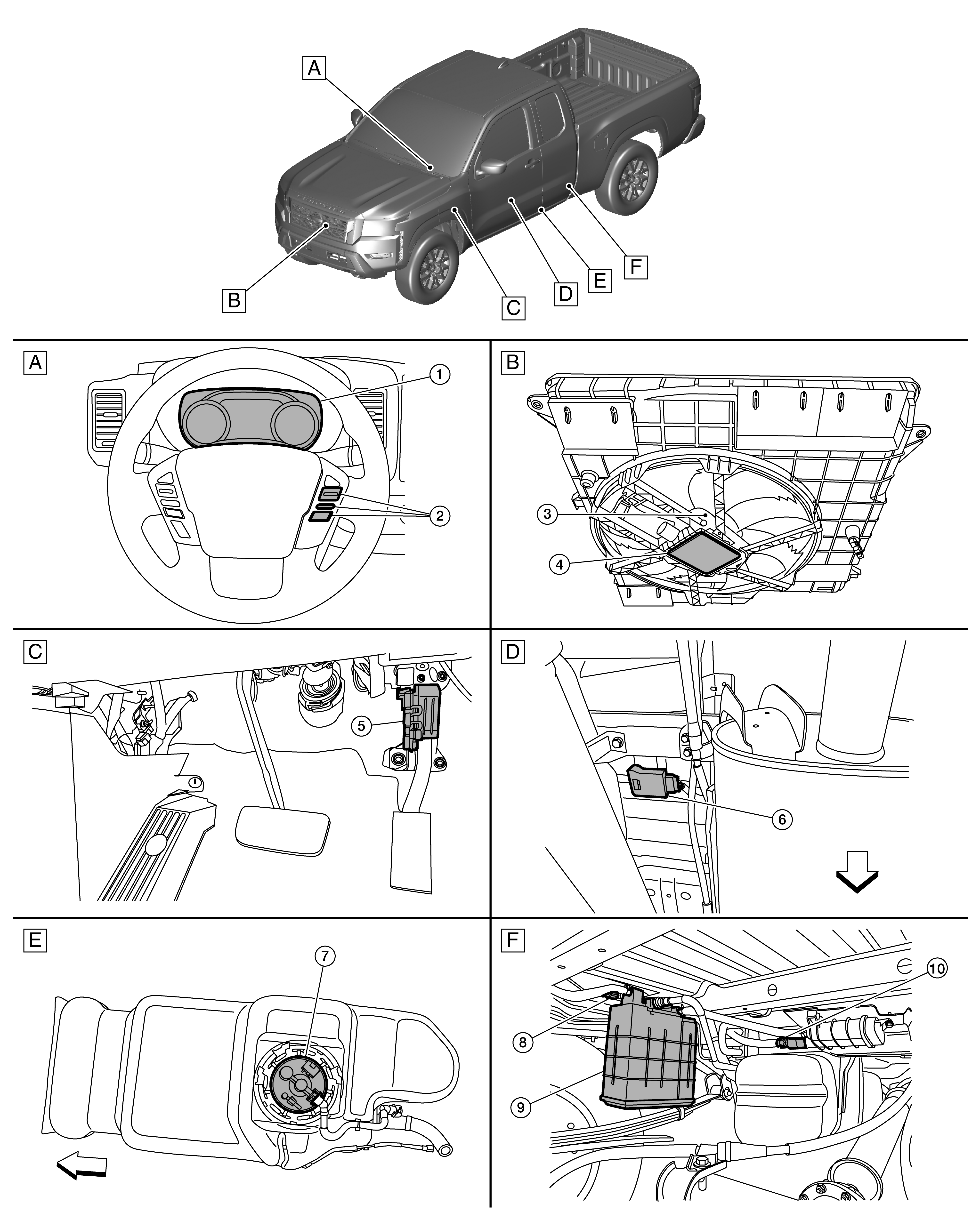

Vehicle Compartment
| Instrument panel periphery (driver side) | Front of engine compartment | Pedal periphery | |||
| Undercarriage center of vehicle | Undercarriage driver side | Undercarriage rear of vehicle | |||
| Vehicle front | |||||
| No. | Component | Function |
|---|---|---|
| Combination meter | Mainly transmits the following signal to ECM via CAN communication.
Mainly receives the following signal from ECM via CAN communication.
|
|
| ASCD steering switch | ASCD Steering Switch | |
| Cooling fan motor | Cooling Fan | |
| Cooling fan control module | ||
| Accelerator pedal position sensor | Accelerator Pedal Position Sensor | |
| Fuel pump control module (FPCM) | Fuel Pump Control Module | |
| Fuel level sensor unit and fuel pump (with fuel tank temperature sensor) | Low Pressure Fuel Pump Fuel Level Sensor Fuel Tank Temperature Sensor | |
| EVAP control system pressure sensor | EVAP Control System Pressure Sensor | |
| EVAP canister | EVAP canister stores the generated fuel vapors in the sealed fuel tank to activated charcoals of EVAP canister when the engine is not operating or when refueling to the fuel tank. | |
| EVAP canister vent control valve | EVAP Canister Vent Control Valve |
