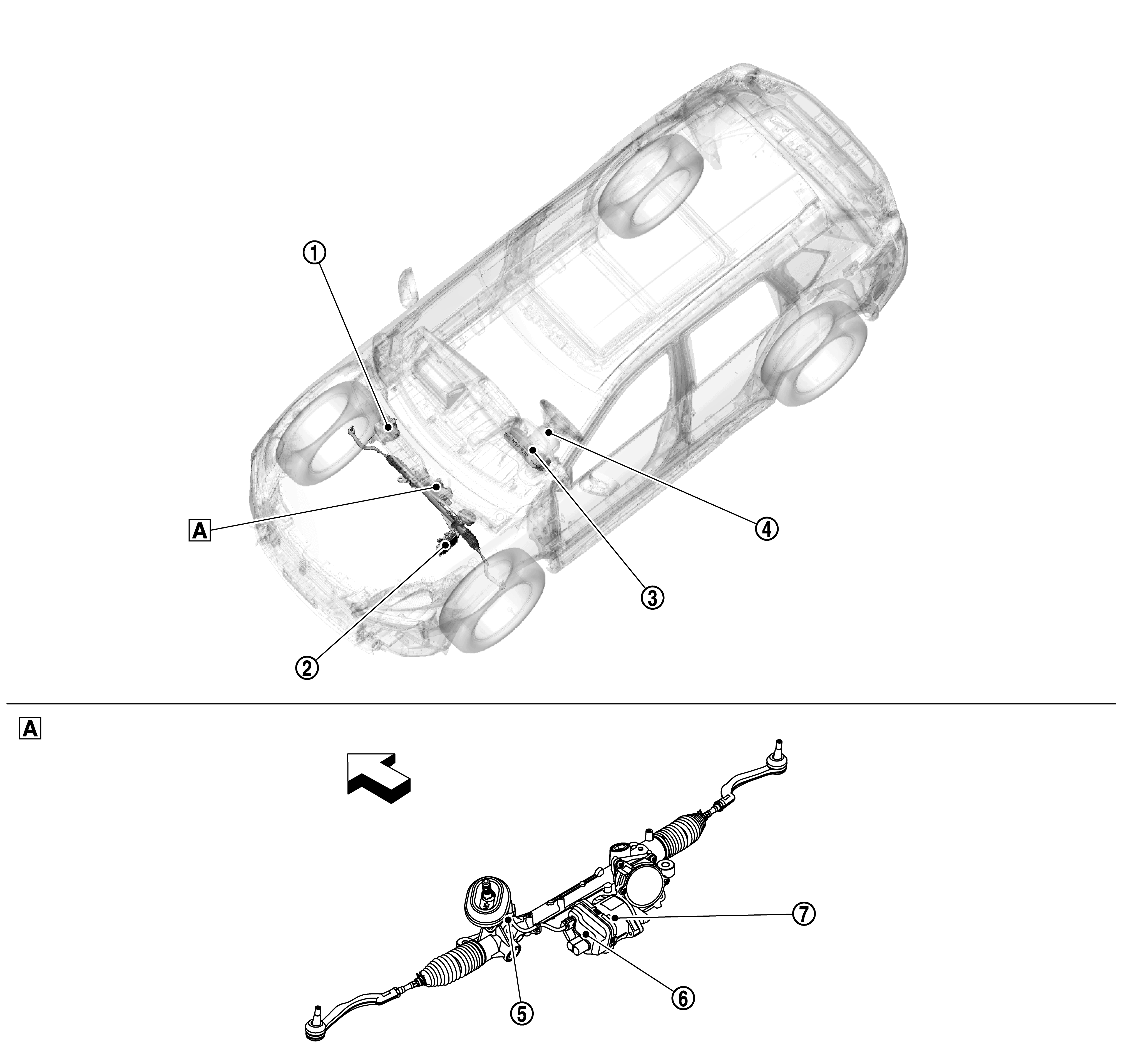

Component Location
| A. | Steering gear assembly | ||||
| 1. | ABS actuator and electric unit (control unit). Refer to Component Location for detailed installation location. | 2. | ECM. Refer to Component Location (KR15DDT engine models) for detailed installation location. | 3. | Combination meter. Refer to Component Location (full TFT meter), or Component Location (7 inch information display) for detailed installation location. |
| 4. | Steering angle sensor Component Location | 5. | Power steering torque sensor | 6. | Power steering control module |
| 7. | EPS motor | ||||
