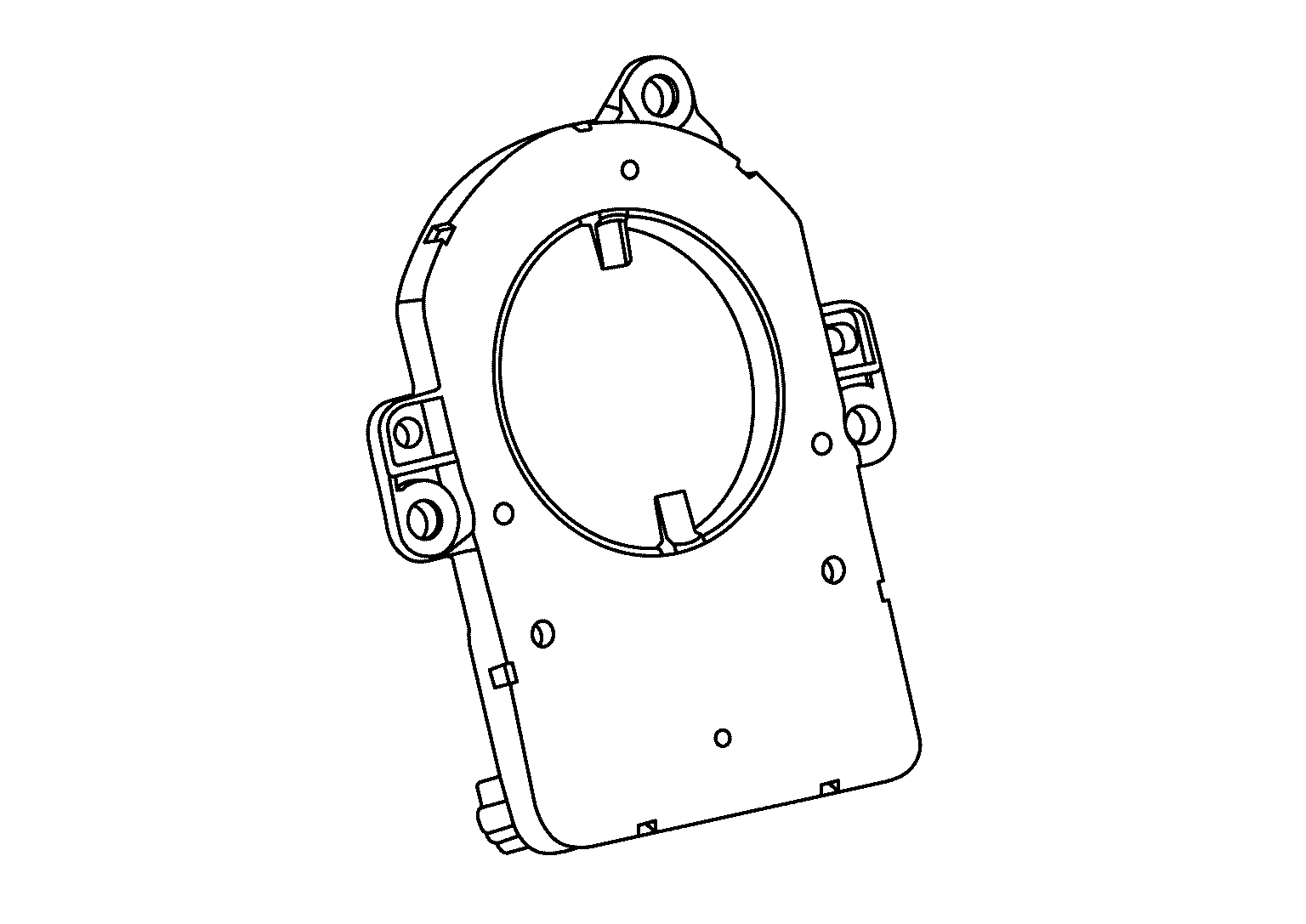

Chassis Control Module (With Built In Steering Angle Sensor)

FUNCTIONS WITHIN THE SYSTEM

Chassis control module (with built in steering angle sensor) controls the following systems based on the signals from each sensor, each switch, and each control unit.

Courtesy of NISSAN NORTH AMERICA, INC.

• Intelligent trace control function
• Intelligent engine brake function
• Active ride control function

INDIVIDUAL FUNCTIONS WITHIN THE SYSTEM

• Transmits the signals to each control unit via CAN communication.
• Receives the signals from each control unit via CAN communication

INDIVIDUAL OPERATION

• Intelligent trace control function: Refer to System Description .
• Intelligent engine brake function: Refer to System Description .
• Active ride control function: Refer to System Description .

COMPONENT LOCATION

Refer to Component Location .
