Abs Light Driver Module: Removal

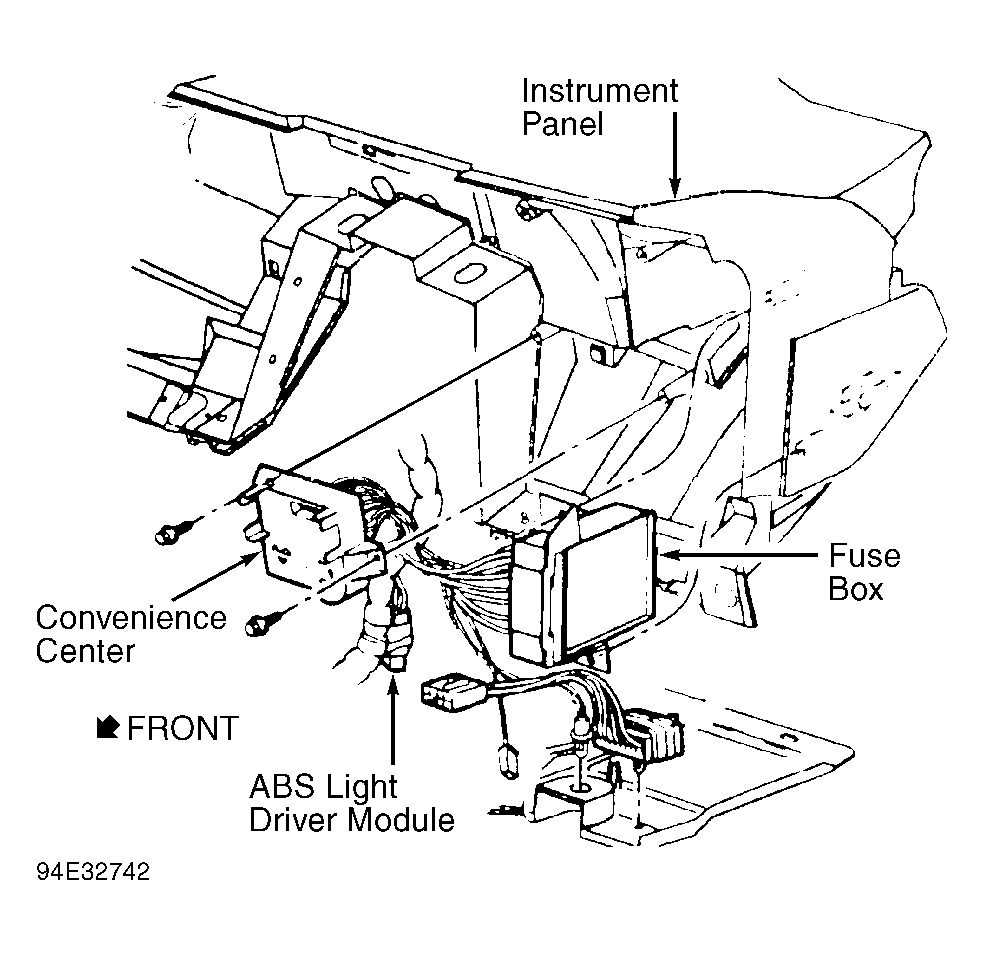

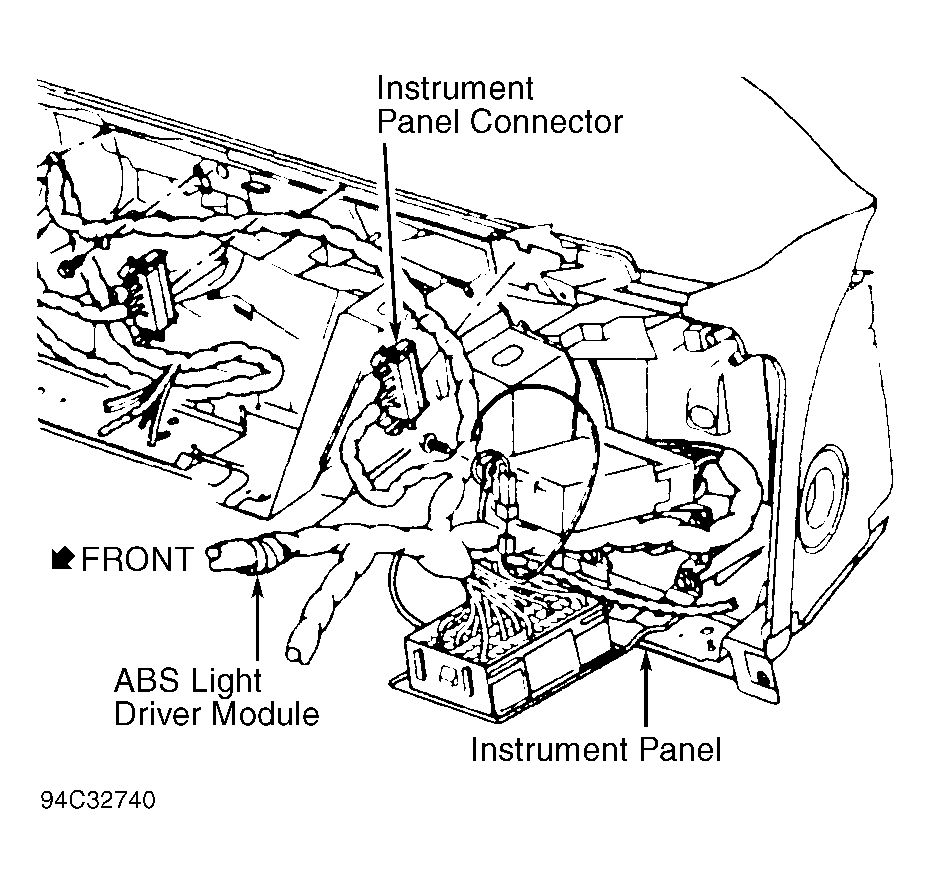

Turn ignition off. Disconnect negative battery cable. Remove left trim panel from instrument panel. Locate light driver module behind left side of instrument panel. See Figure or Figure. Connector is Green. Module is taped to instrument panel harness. Open connector and slide light driver circuit board out of connector.
