Component Locations

KEYLESS ENTRY COMPONENT LOCATION

Component	Location
Body Control Module	Below Left Side Of Instrument Panel, Left Of Steering Column. See Fig 1 .
Data Link Connector (DLC)	Under Left Side Of Dash, Right Of Steering Column.

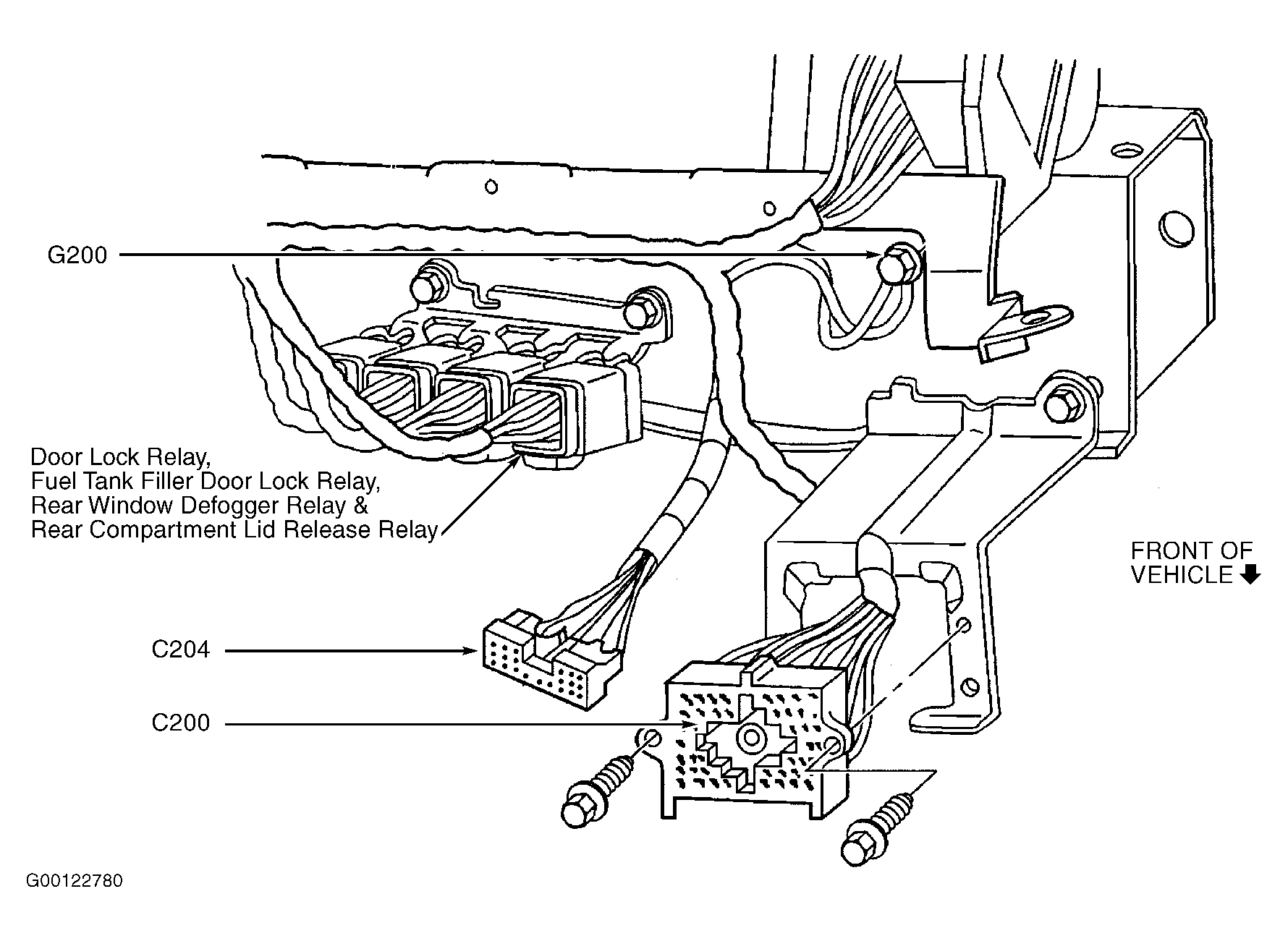

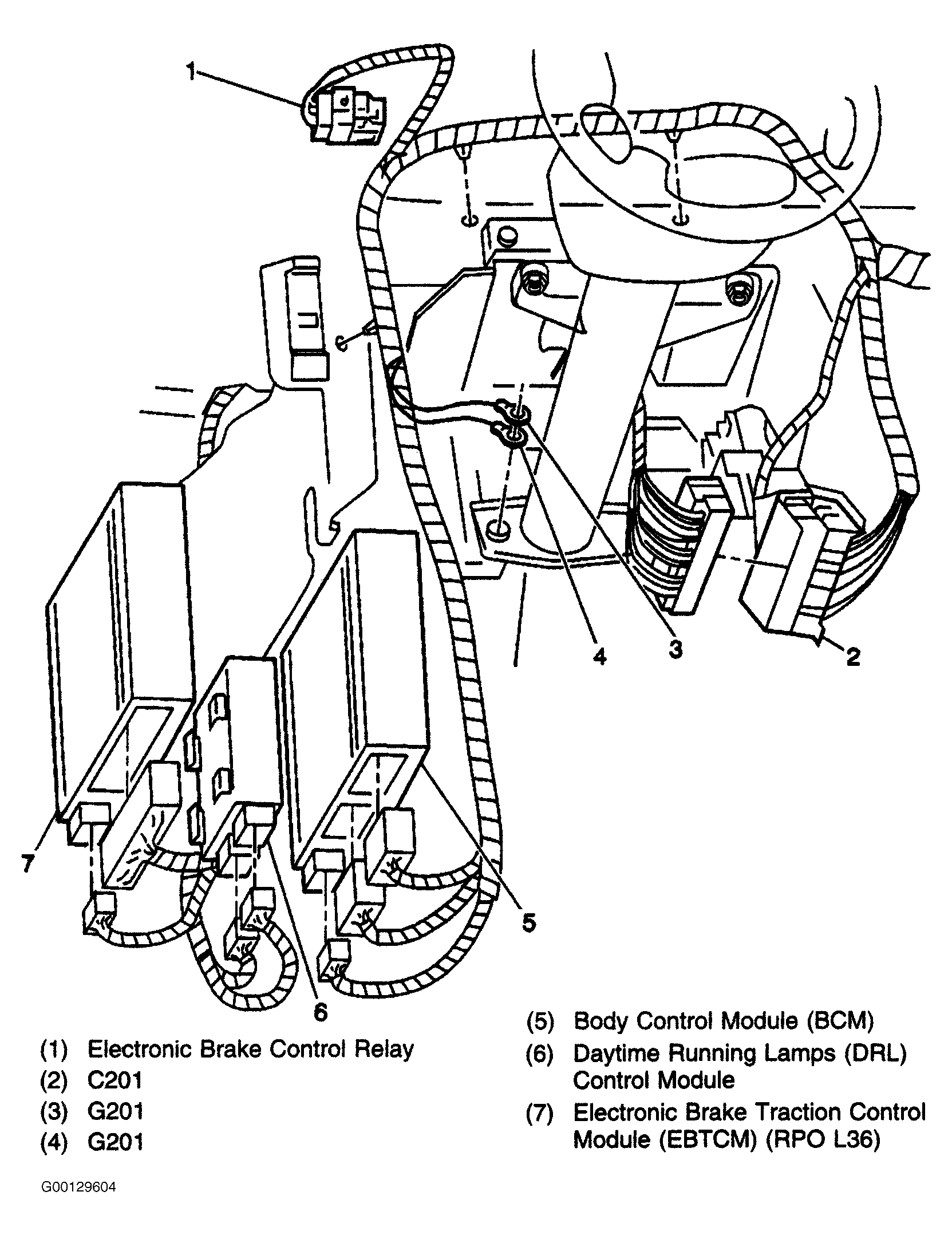

Door Lock Relay	Behind The I/P Compartment, Attached To The Cross-Car Beam. See Fig 2 .
Fuel Filler Door Lock Actuator	Left Side Of The Rear Compartment Mounted Behind The Left Rear Wheelhouse
Fuel Filler Door Lock Relay	Behind The I/P Compartment, Attached To The Cross-Car Beam. See Fig 2 .
Fuel Filler Door Release Switch	Part Of The Rear Compartment Lid And Fuel Filler Door Release Switch, On the I/P, Left Side Of The Steering Column
Fuse Block	Right Side Of Instrument Panel, In Right Front Door Opening. See Fig 3 .

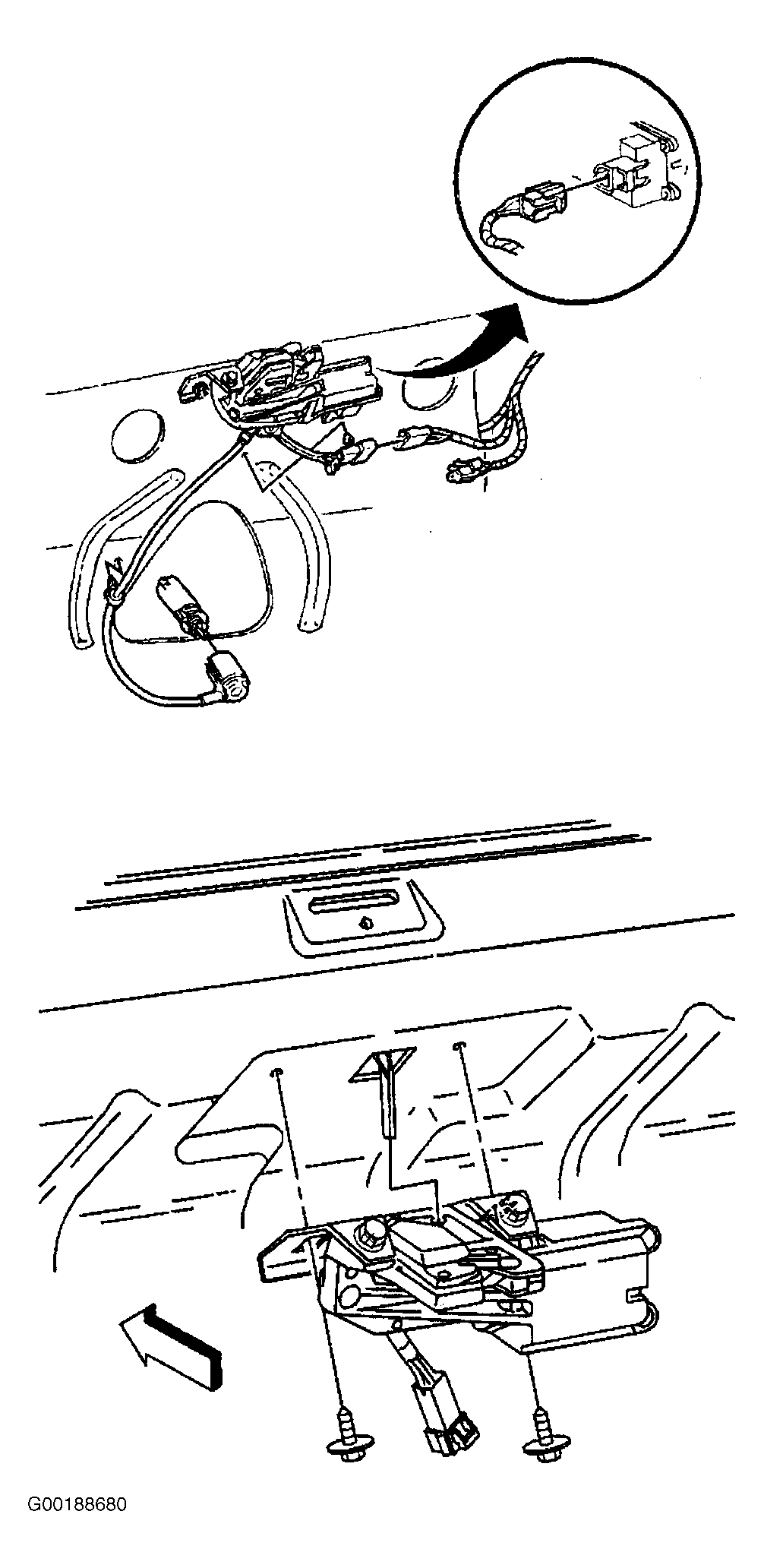

Rear Compartment Lid Lock Release Actuator	Mounted To The Rear Compartment Lid, Near The Lock. See Figure .
Rear Compartment Lid Release Relay	Behind The I/P Compartment, Attached To The Cross-Car Beam. See Fig 2 .
Rear Compartment Lid Switch	Part Of The Rear Compartment Lid And Fuel Filler Door Release Switch, On The I/P, Left Side Of The Steering Column

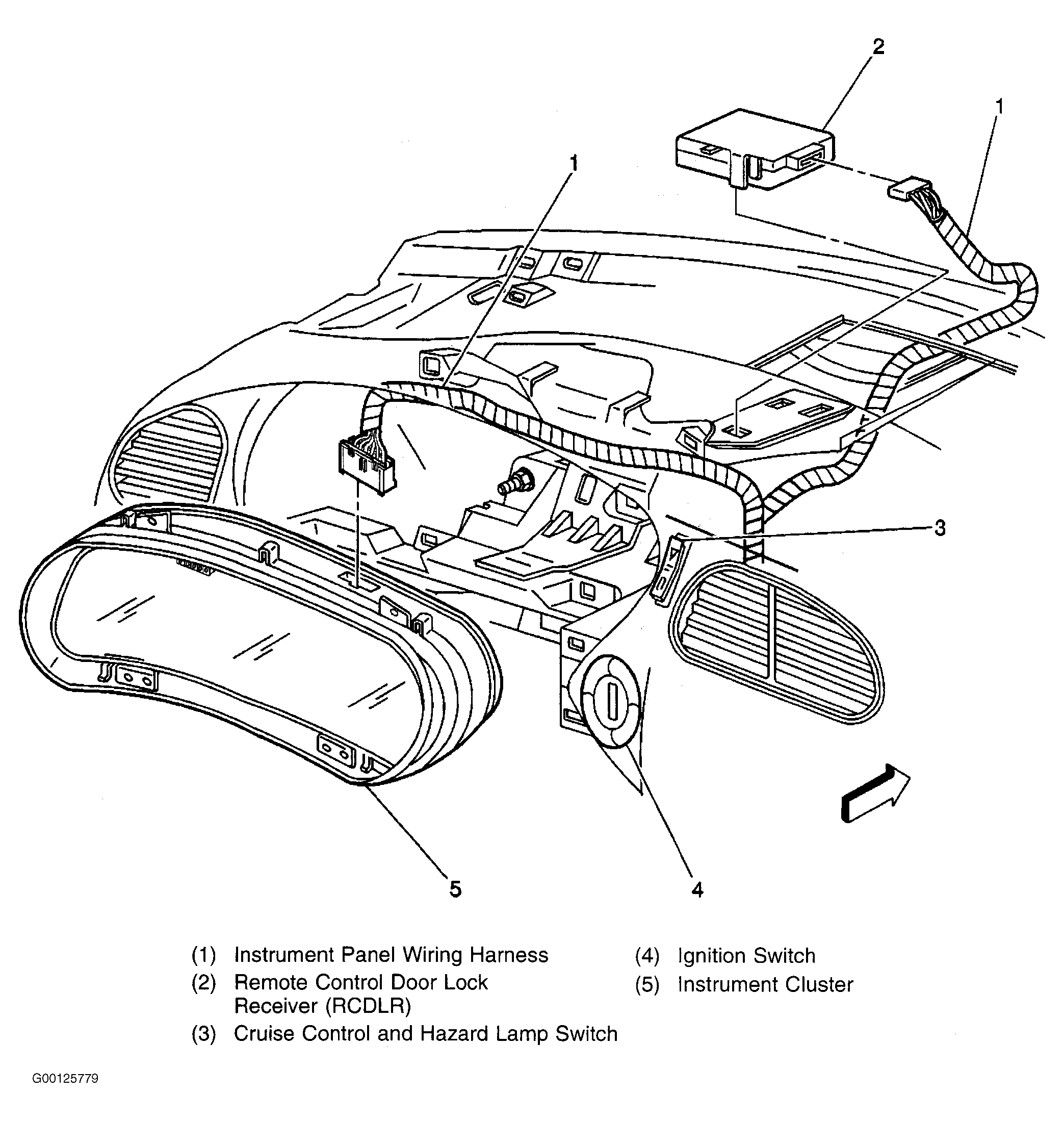

Remote Control Door Lock Receiver	Left Side Of Instrument Panel, Above Right Side Of Instrument Cluster. See Fig 4 .
Transaxle Range Switch	On Top Right Rear Of Transaxle.
Underhood Accessory Junction Box	In Engine Compartment, Mounted To Right Shock Tower
C200	Under Left Side Of Instrument Panel. See Fig 2 .
C301	In Driver's Door Opening. See Fig 7 .
C302	In Right Door Opening. See Fig 5 .
C351	In Left Rear Door Opening. See Fig 7 .
C352	Front Edge Of Right Rear Door. See Fig 6 .
G200	Behind The I/P Compartment, Attached To The Cross-Car Beam. See Fig 2 .
G201	On Steering Column Support. See Fig 1 .
G301	Under Driver's Seat, At Door Sill. See Fig 7 .
G302/G316	Inside Right Door Sill
