Control Units

CONTROL UNITS LOCATION

Component Location
Audible Message Center Control Under dash above glove box.
EFI Logic Module At bottom of right kick panel. See Figure .

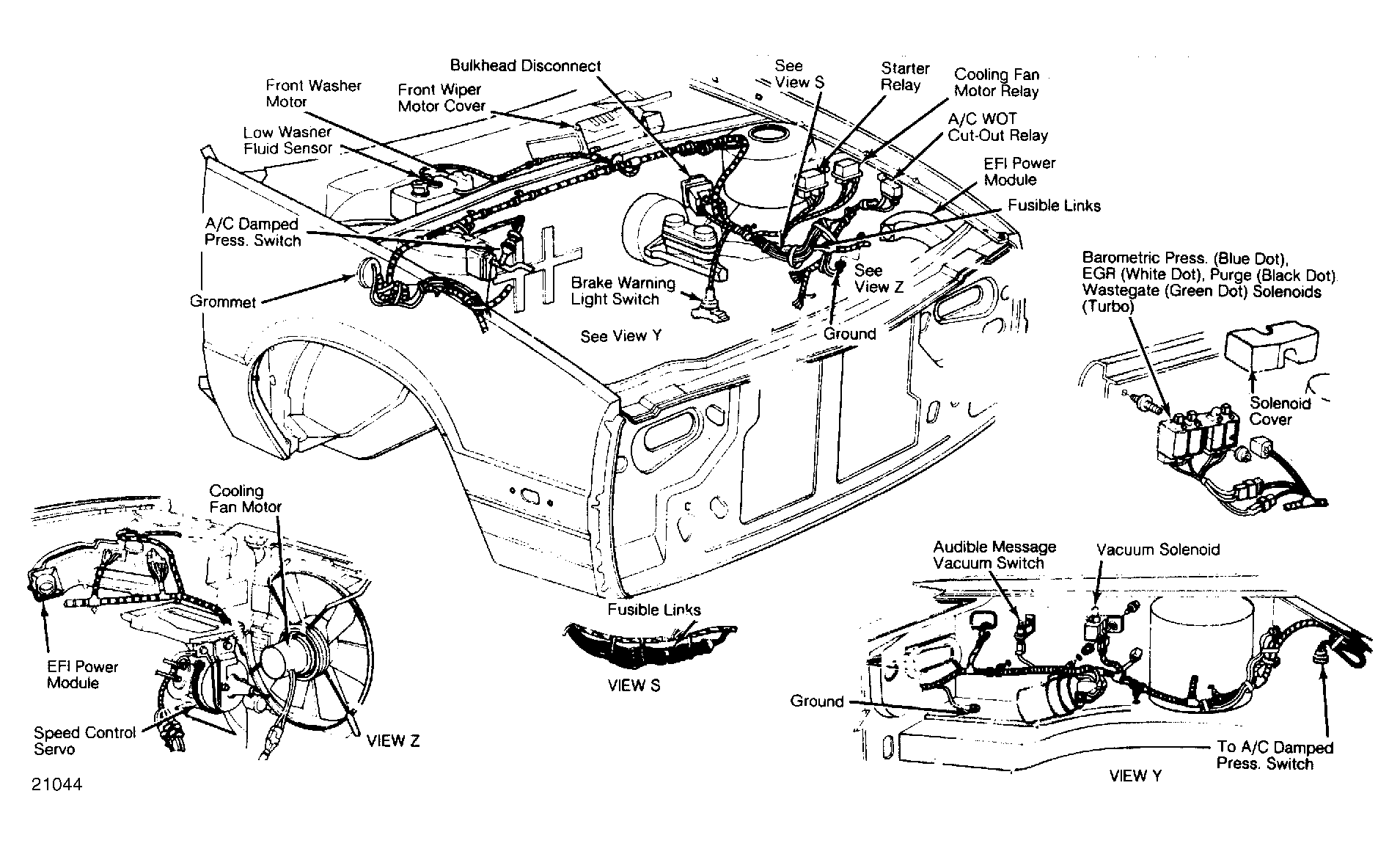

EFI Power Module At left front corner of engine bay. See Figure .
Intermittent Wiper Control Unit On bracket on left lower reinforcement.
Key-In/Headlight On/Seat Belt Warning Module With Time Delay Under dash above glove box.
Stereo Control Unit Taped to power amplifier wiring harness under center speaker. See Figure .
