Switch Test

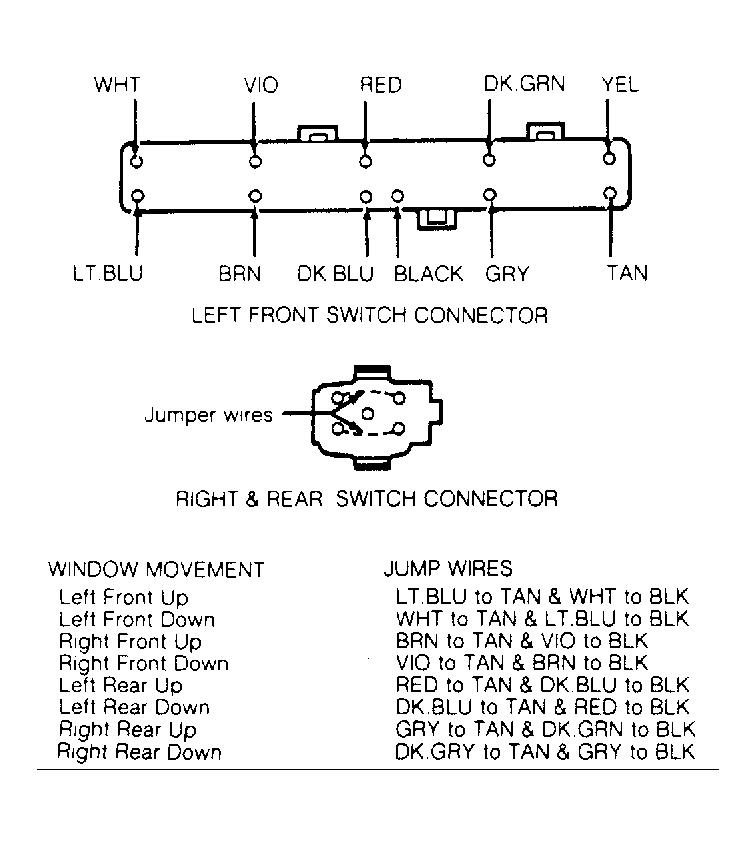

This test will simulate power window switch function. Simultaneously, connect 2 jumper wires from 4 wire terminals indicated. See Fig 1 . If motor works while using jumper wires, motor is okay. Inspect wiring and switch. If wiring is okay, replace switch. If motor does not work, proceed to WINDOW LIFT MOTOR TEST under TESTING.
