Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location | |
|---|---|---|

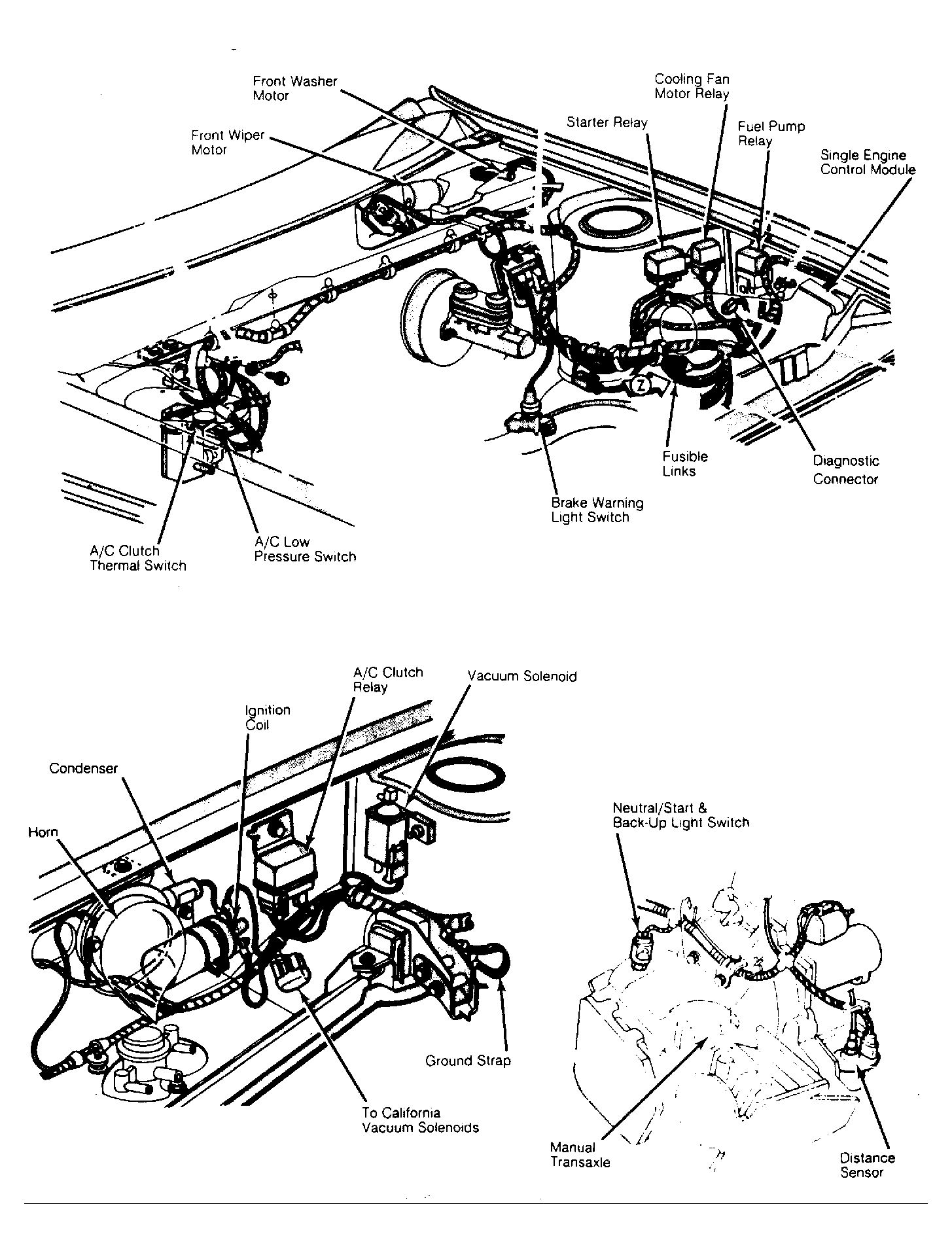

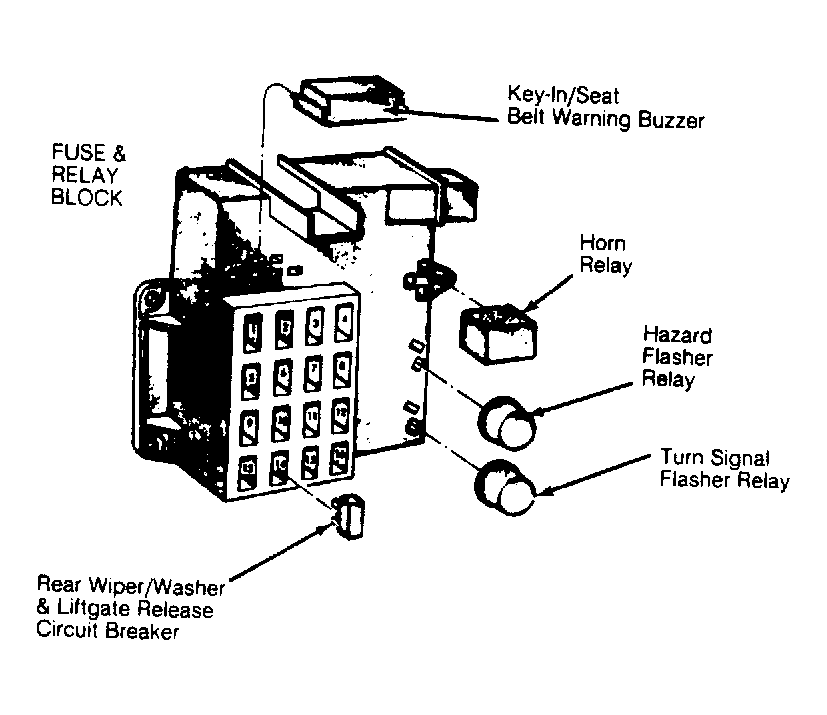

| Fuse/Relay Block | On left kick panel. See Figure . | |
| Fusible Links | ||
| A/C-Heater Blower (Orange) | On left strut tower. See Figure . | |
| Accessories (Gray) | On left strut tower. See Figure . | |
| Charging System (Red) | On left strut tower. See Figure . | |
| Cooling Fan (Red) | Behind battery. See Figure . | |
| Hazard Flasher (Orange) | Behind battery. See Figure . | |
| Ignition Switch (Gray & Orange) | On left strut tower. See Figure . | |
| Single Module Eng. Control (SMEC) (White) | On left strut tower. See Figure . | |
| Rear Wiper/Washer & Liftgate Release Circuit Breaker | In fuse block cavity No. 14. See Figure . | |
