Manifold Pressure/Vacuum Sensor: Service and Repair

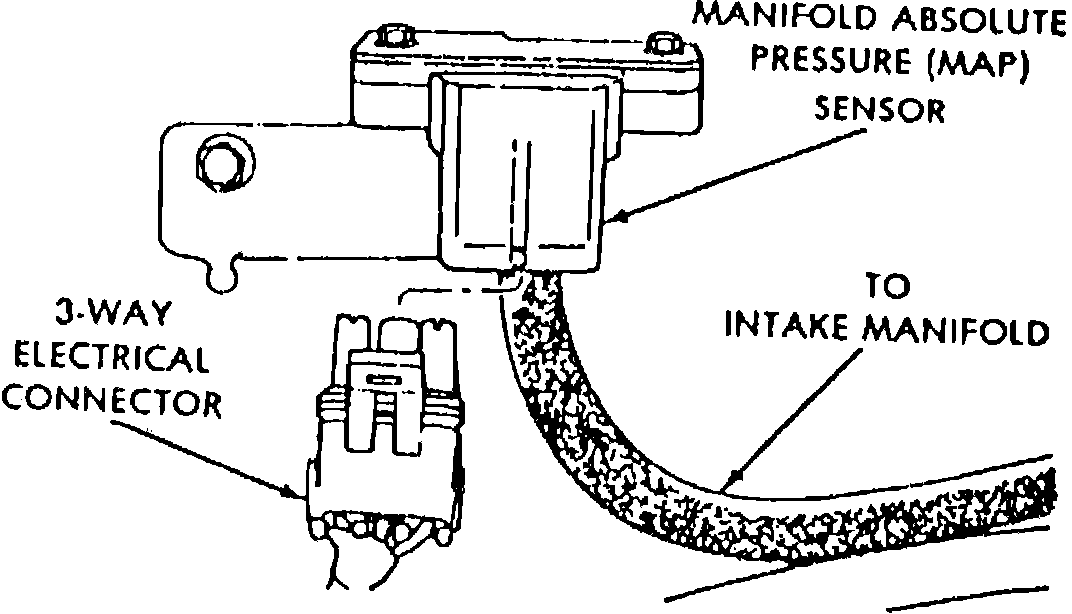

Manifold Absolute Pressure (MAP) Sensor replacement:

1. Remove kick panel at passenger side of vehicle.
2. Remove vacuum hose from sensor.
3. Remove sensor attaching screws, then the sensor.
4. Reverse procedure to install. Ensure proper installation of vacuum hose to sensor.
