Clearance and Design Specifications




A-413 3-Speed Transaxle

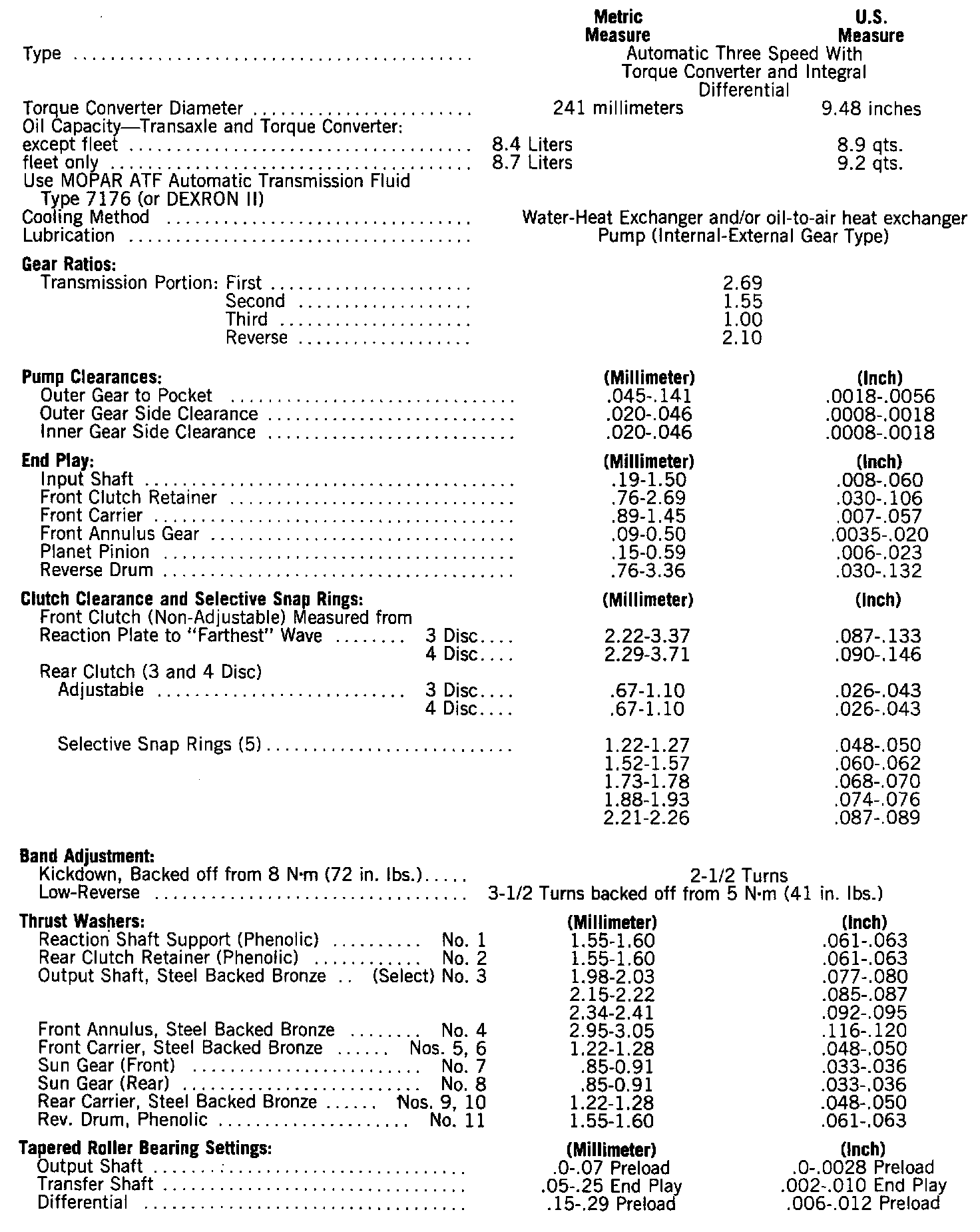

A-413, General Specifications:

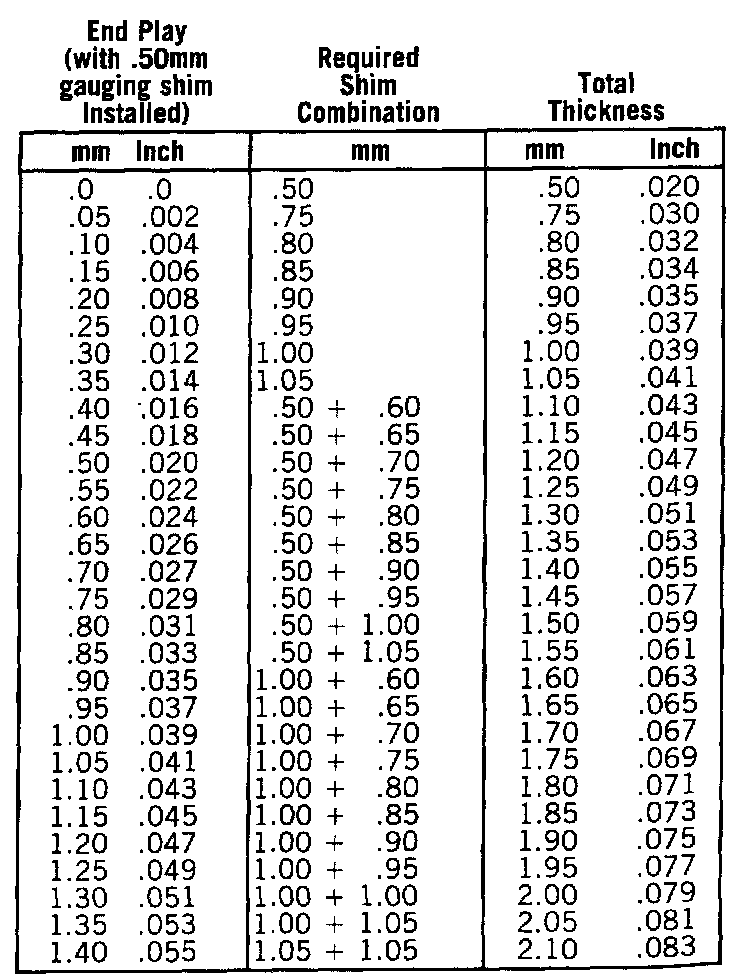

Differential Bearing Shim Chart:

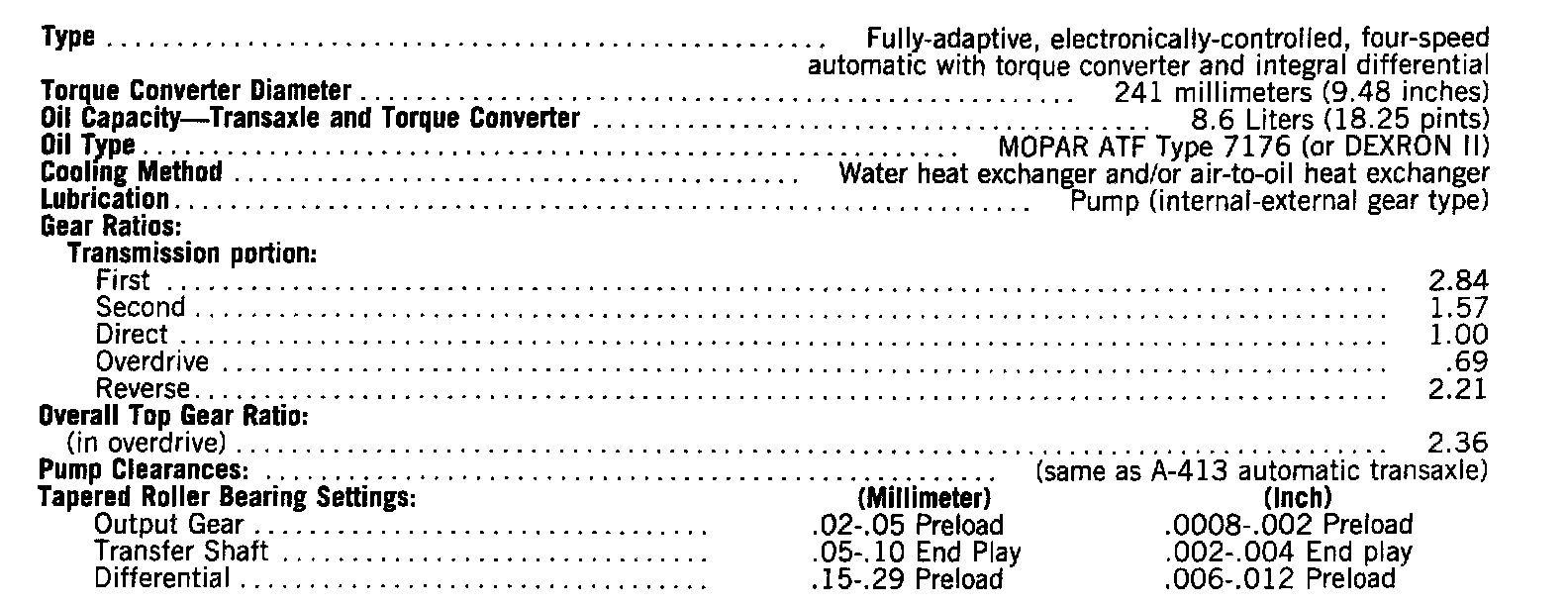

A-604, General Specifications:





Speedometer Pinions:
